Why won't my Suzuki 300 HP engage gear when the shift actuator moves?
I have a 2023 23-foot Stingray with a 300 HP Suzuki outboard. Shifting into forward or reverse doesn't change the propeller direction at all, and I can stop the prop with my foot when it's supposedly in gear. The electronic fly-by-wire shift actuator is definitely moving the shift cable, so what is wrong?
Answer
If your Suzuki Precision Control (SPC) actuator is moving the shift cable but the gearbox fails to engage, the mechanical connection between that cable and the lower unit shift shaft has parted. You will usually find a disconnected linkage clip beneath the cowling, or a misaligned shift shaft if the gearbox was recently removed for a service.
Inspect the Powerhead Shift Linkage
On modern fly-by-wire Suzuki outboards like the DF300AP or DF300B, the electronic shift actuator sits beneath the engine cowling. Moving the throttle binnacle sends a digital signal to this actuator. The actuator then pushes or pulls a short mechanical shift cable. This cable connects to a metal shift lever assembly on the engine block, which rotates the vertical shift shaft dropping down to the gearbox.

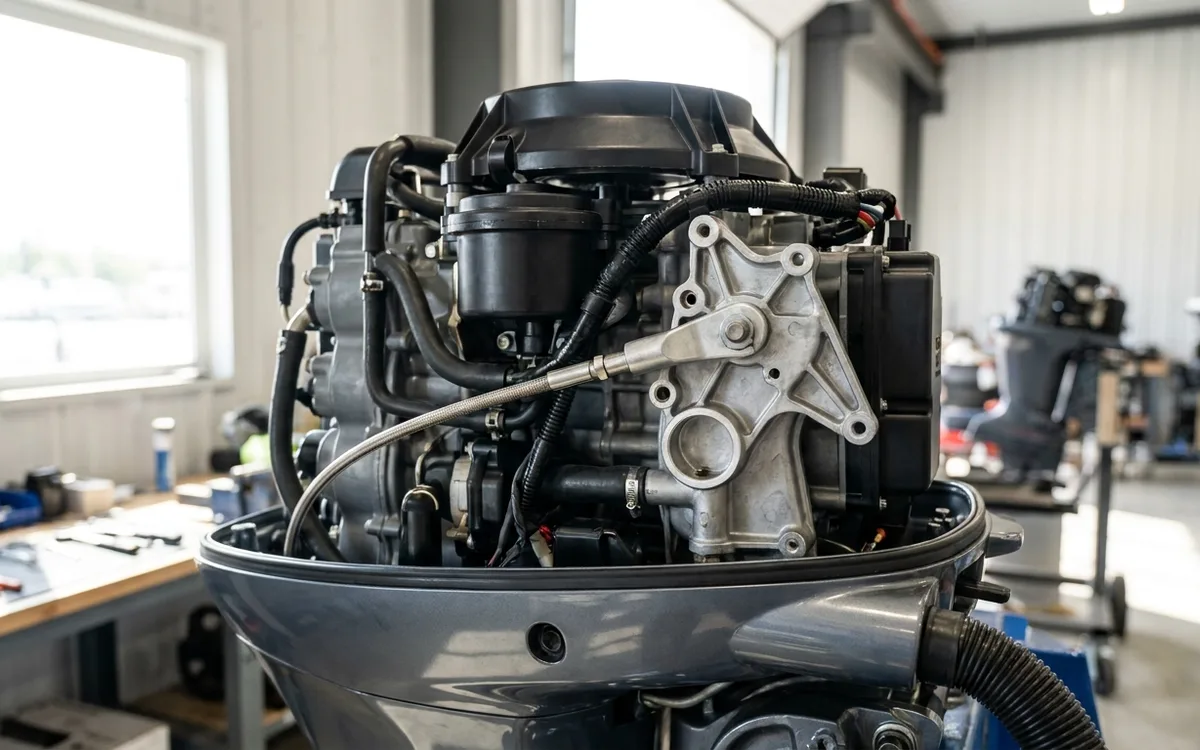

Take the cowling off and watch the linkage while an assistant shifts the helm control into forward and reverse. Trace the cable movement to its very end. Look for the clevis pin and retaining split pin (or R-clip) securing the cable eye to the shift lever. These retaining clips cost about £2. If one vibrates loose or was left off during a service, the cable slides back and forth without moving the lever. If the lever itself moves, the fault lies further down the engine.
Inspect the Lower Shift Shaft
If the top lever engages correctly, the vertical shift shaft is not turning the clutch dog in the lower unit. The most common reason for this on a nearly new boat is a botched water pump service. Suzuki recommends inspecting the water pump impeller at 100 hours or 12 months, which requires dropping the lower unit.
When bolting the lower unit back onto the midsection, the mechanic must align the splines of the lower shift shaft with the upper shift shaft. If the gearbox is forced on while these splines are misaligned, the connection fails to mate. The top linkage moves normally, but the lower gearbox remains stuck in neutral. If the engine recently had its first service, this is the prime suspect. Fixing it requires undoing the lower unit mounting bolts, dropping the gearbox a few inches, and aligning the splines before re-torquing the 14mm bolts to 35 Nm.
Test for a Spun Hub
Always disconnect the engine lanyard and turn off the battery isolator before putting hands near the propeller. If the gearbox actually engages but the propeller feels completely disconnected, you might have a destroyed propeller hub bush.
