What Causes Yamaha Fault Code 87 on an F350 Outboard?
My 2023 Yamaha F350 just threw a code 87 on the display and refused to go into gear properly. I managed to restart it and limp back to the marina, but I'm worried it's a major gearbox issue. What exactly does this code mean, and what should I check before calling the dealer?
Answer
Diagnostic fault code 87 on a Yamaha F350 indicates a voltage irregularity or mechanical failure at the shift position sensor, meaning the engine control unit cannot verify the gear selection. This usually happens when the electric shift actuator binds up, the lower unit shift rod is out of alignment, or the sensor wiring harness has succumbed to corrosion or a loose connection.

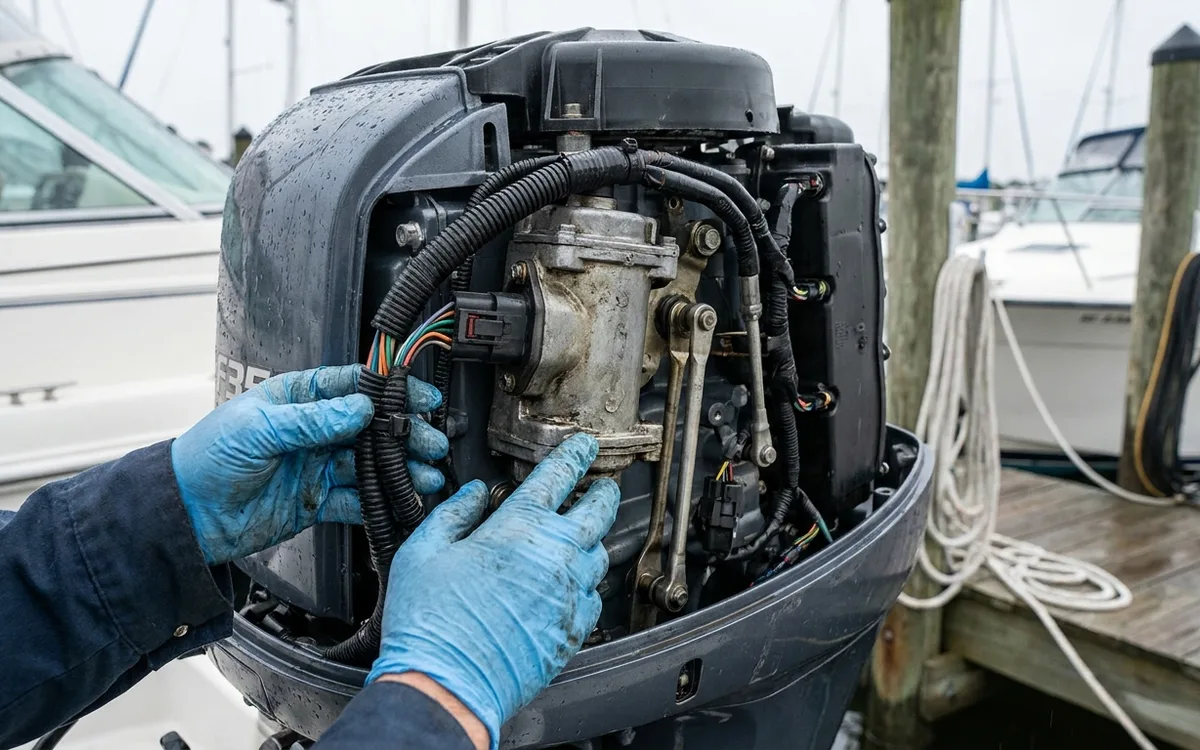

The Fly-by-Wire Shift Actuator
Yamaha's Digital Electronic Control system eliminates physical cables between the binnacle and the engine. A digital signal instructs the Engine Control Unit (ECU) to engage a heavy 12-volt electric motor called the shift actuator. This motor mechanically moves the shift rod to select forward, neutral or reverse.
The shift position sensor sits on the actuator assembly. It sends a variable voltage back to the ECU along a 5-volt reference circuit. The ECU throws Code 87 if the actuator fails to reach the commanded position within a set time or if the sensor voltage drops outside the expected range. The engine then locks in neutral or limits RPM to protect the gearbox.
Common Causes of Code 87
This fault rarely indicates a failure inside the engine block or the core gearbox internals. The problem usually stems from a few specific areas.
- Misaligned lower unit: Mechanics sometimes misalign the shift rod splines when reinstalling the gearbox after a water pump replacement. Spinning the shift rod alters its height. This causes physical binding that the electric actuator cannot overcome.
- Corroded connections: Saltwater destroys delicate 5-volt circuits. A single loose pin or a speck of green verdigris in the shift position sensor connector instantly skews the voltage return to the ECU.
- Failing shift actuator motor: The internal brushes in the actuator motor wear out over years of use. The internal plastic gears can also strip.
- Battery voltage drops: The system requires strong voltage. The shift actuator stalls mid-shift if the battery drops below 11.5V under a heavy load from a windlass or trim motor.
Diagnosing the Fault
Shut the engine down completely if Code 87 appears at sea. Turn off the battery isolator for thirty seconds and restart the engine to reboot the ECU. This often clears a temporary glitch and allows you to limp home. Always isolate the batteries before touching the shift linkages to prevent trapped fingers.
