How do I troubleshoot the idle speed control valve on a Yamaha EX Sport?

To fix an erratic idle on your Yamaha EX Sport's TR-1 engine, you must remove the Idle Speed Control (ISC) valve from the throttle body, clean away any carbon fouling, and test the internal stepper motor coils with a multimeter. If cleaning fails to cure the stalling and the coil resistance falls outside specification, you must fit a replacement valve and reset the idle parameters using the Yamaha Diagnostic System (YDS).

Recognising ISC Valve Symptoms

The TR-1 is a 1049cc three-cylinder engine that relies on the ISC valve to bypass air around the closed throttle plate at idle. When this valve sticks or fails electronically, the engine control unit (ECU) cannot regulate the air-fuel mixture at low RPMs. You will typically experience these faults:

• The engine fires up but stalls immediately unless you apply throttle.
• The idle speed surges erratically when resting in neutral.
• The ski cuts out completely when you release the throttle after a high-speed run.
• A check engine warning appears, logging a P0505, P0506, or P0507 fault code on the YDS.

Before removing the valve, verify your throttle cable has the correct slack (usually 2 to 3 mm at the lever). If the cable is too tight, the throttle butterfly will not close fully against its stop. This confuses the ECU and prevents the ISC valve from taking over idle control.

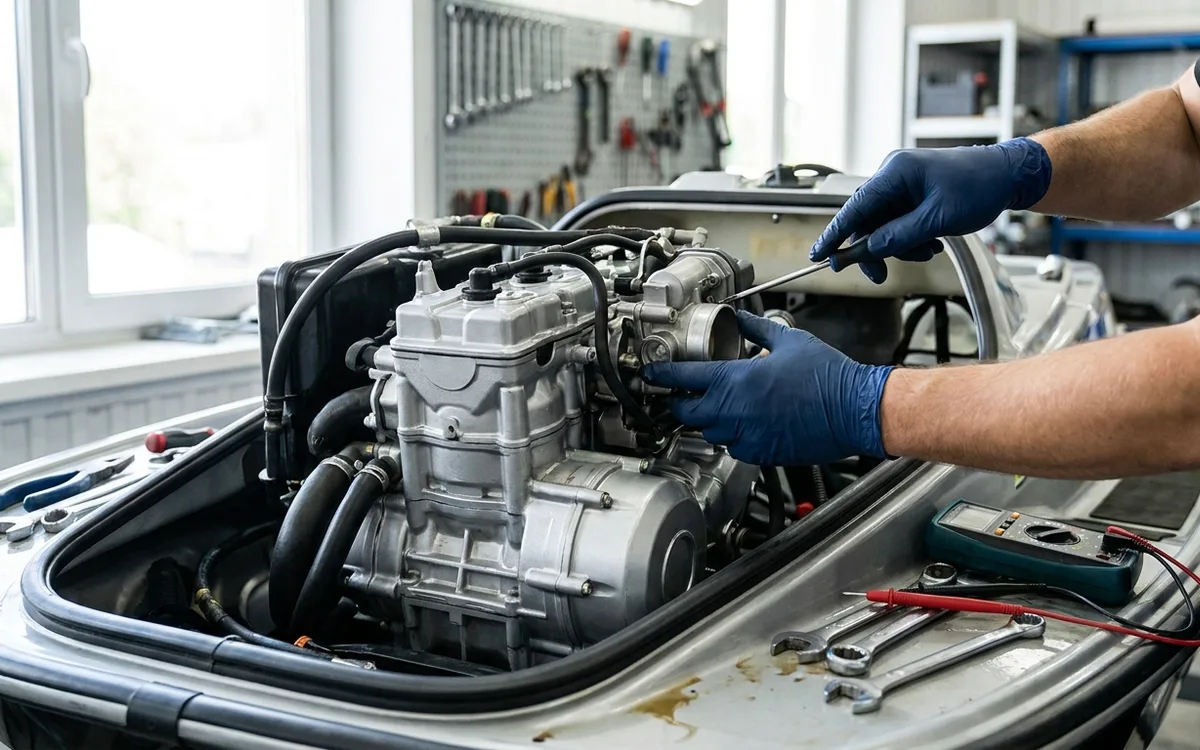

Removing and Cleaning the Valve

Always disconnect the negative battery terminal before working near fuel vapour or engine electrics. The ISC valve mounts directly to the throttle body. To access it, remove the air intake hose using a 10mm socket or a nut driver on the hose clamps.

Two small machine screws hold the valve in place. Use a JIS (Japanese Industrial Standard) #2 screwdriver to remove them. A standard Phillips screwdriver will cam out and strip the soft screw heads, turning a ten-minute job into a miserable extraction process. Once the screws are out, twist and pull the ISC valve free from its housing.

Inspect the conical tip (the pintle) of the valve and the corresponding bypass port inside the throttle body. They are usually coated in a black carbon residue from crankcase vapours. Spray a clean microfibre rag with sensor-safe throttle body cleaner and wipe the pintle clean. Do not spray the cleaner directly into the body of the ISC valve. The aggressive solvent can seep past the shaft seal and ruin the stepper motor. Use a cotton swab soaked in cleaner to scrub out the bypass port on the throttle body until the swab comes out clean.

Testing Stepper Motor Coils

If cleaning fails to resolve the stalling, the electrical side of the valve may be dead. The ISC valve uses a stepper motor containing two separate wire coils to push and pull the pintle. Test these coils using a digital multimeter.
