Why does my Suzuki DF175 intermittently hit a rev limiter until restarted?
I have a twin setup with 2010 Suzuki DF175 outboards. The starboard engine will intermittently act like it is hitting a rev limiter, but the port side runs perfectly. If I turn the engine off and restart it, the problem goes away and it works properly again for a while. What could be causing this?
Answer
This intermittent rev-limiting that clears after a key cycle means your engine control unit (ECU) is triggering a soft fail-safe mode. The most common culprit on a Suzuki DF175 is a sticky neutral shift switch tricking the ECU into thinking the engine is in neutral, automatically capping revs at 3,000 RPM to prevent internal damage.
The Neutral Shift Switch

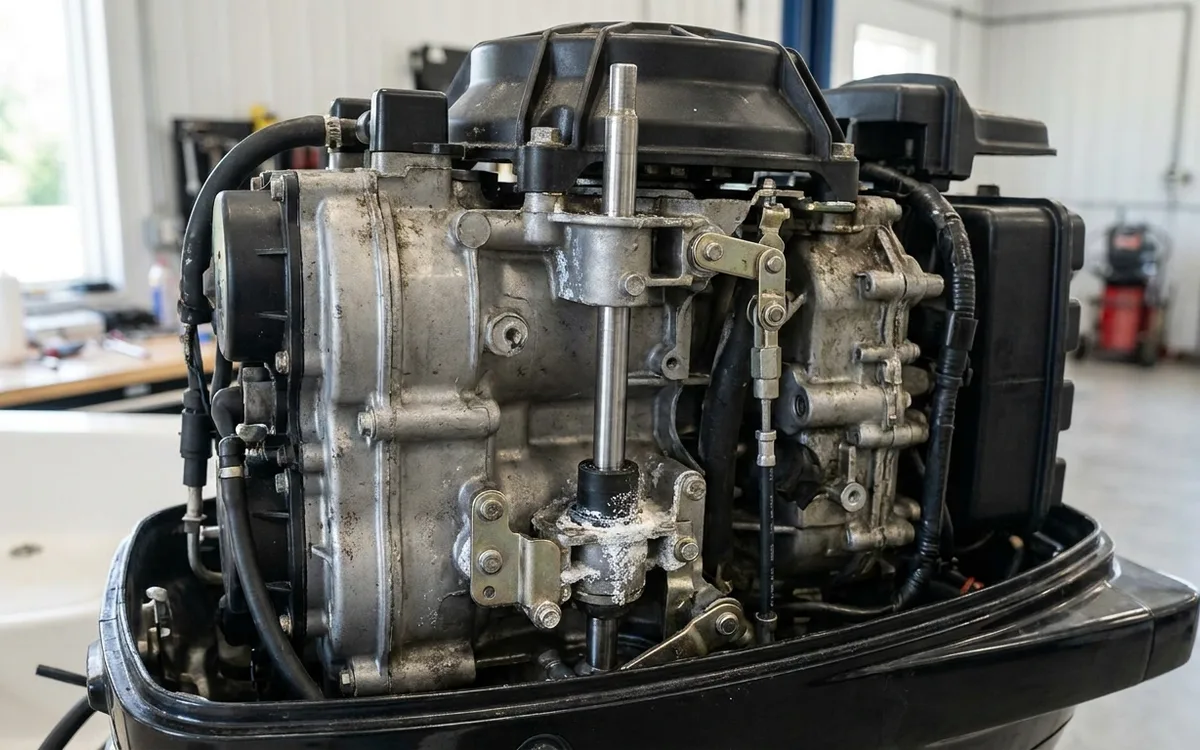

Suzuki outboards use a neutral shift switch to tell the ECU when the engine is in gear. If the switch fails or falls out of alignment, the ECU assumes the engine is in neutral and engages the 3,000 RPM limit. Restarting the engine resets the logic temporarily until vibration or throttle movement breaks the contact again. You will find this switch on the port side of the powerhead near the bottom where the shift cable linkage connects to the vertical shift shaft. Always disconnect the battery and remove the kill cord before touching throttle linkages or the flywheel.
- Inspect the switch plunger for salt build-up causing it to stick.
- Check the metal bracket holding the switch. Mechanics easily bend this during servicing, throwing off the alignment.
- Test the switch with a multimeter. It must show continuity when pressed and an open circuit when released. Replace it if you have any doubts (a new genuine Suzuki switch costs around £40).
VVT and OCV Filter
The DF175 features Variable Valve Timing (VVT). If the rev limit kicks in higher at around 4,000 RPM, the ECU is likely detecting a VVT fault. The VVT system relies on oil pressure controlled by the Oil Control Valve (OCV). A small inline mesh filter screen protects the OCV. If sludge or carbon flakes clog this filter, the actuator cannot advance the camshaft timing and the ECU throws the engine into limp mode. A restart clears the fault until the engine reaches the RPM where the VVT engages again. Locate the OCV on the cylinder head. Nearby sits a plug with a 14mm hex head. Undo this plug to access the VVT filter screen. Spray it thoroughly with brake cleaner and reinstall. Replace the screen immediately if it is torn.
Hidden Alarms and Sensors
Fail-safe mode usually triggers a flashing light or buzzer on your tachometer. If your tachometer buzzer has failed, the engine could be warning you of low oil pressure, high temperature or water in the fuel filter without you realising. A key cycle clears overheat and oil pressure faults until the sensor detects the threshold again.
