What causes fuel to dilute engine oil in an inboard boat?
I have a 2008 Cruisers Yachts and I've just noticed the oil level on my starboard engine is way over the max mark on the dipstick. The oil is very thin and smells heavily of fuel. What causes fuel to get into the oil, and how do I track down the leak?
Answer
Fuel dilutes engine oil when unburnt fuel bypasses the combustion chamber or leaks directly into the crankcase, typically due to a ruptured fuel pressure regulator, a failed pump seal, or a stuck open injector. Running an engine with fuel contaminated oil destroys main bearings rapidly and creates a severe explosion hazard on petrol boats.
MPI Fuel Regulators
Twin multi port injected petrol engines power many modern cruisers. On Mercruiser 5.0 and 5.7 MPIs or Volvo Penta 8.1s, a ruptured diaphragm inside the fuel pressure regulator frequently causes fuel to enter the oil. The regulator sits on the fuel rail and connects to the intake manifold via a small vacuum hose. Engine vacuum sucks raw petrol directly through that hose into the intake when the internal diaphragm tears.

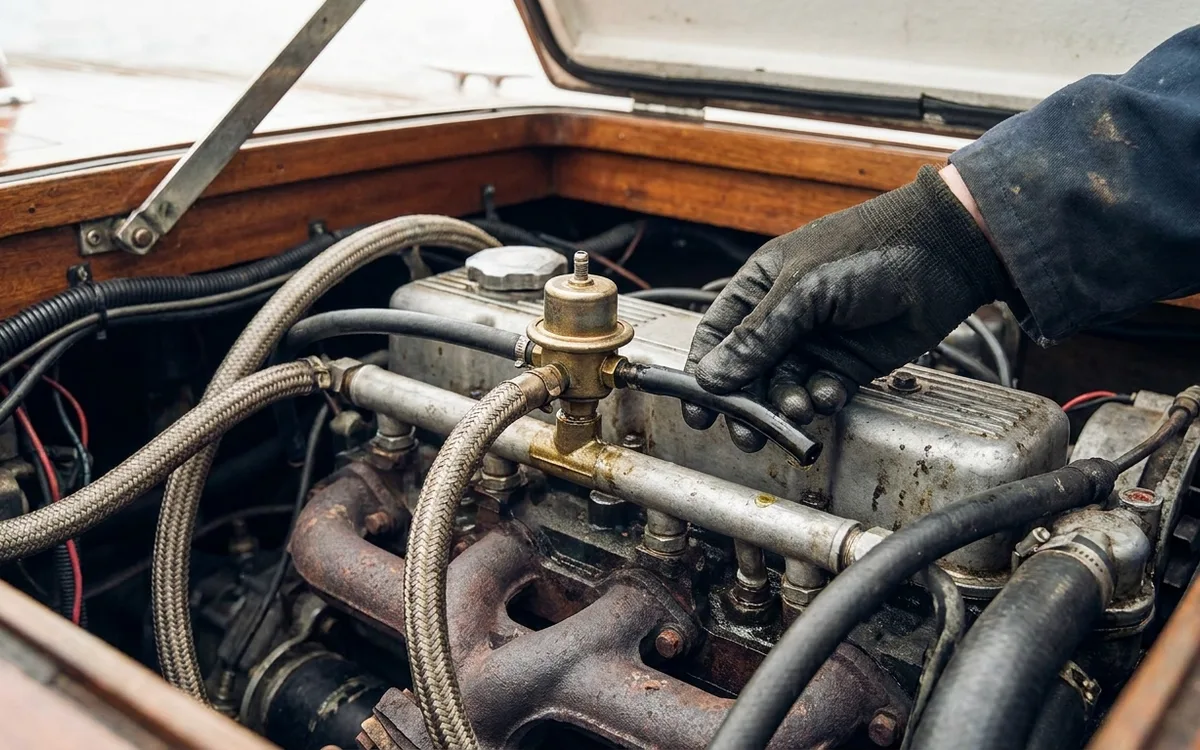

This fuel enters the intake manifold outside the normal combustion cycle and fails to burn. It washes down the cylinder walls, slips past the piston rings and pools in the sump. You can diagnose this fault in two minutes by pulling the vacuum hose off the fuel pressure regulator. A wet interior or a strong petrol smell means the regulator is ruined. Replacements cost around £80 and take ten minutes to fit.
Mercruiser Cool Fuel Modules
Mercruiser engines built from 2004 to 2009 often use the Gen III Cool Fuel module. These units suffer from an internal design flaw where the paint lining the water cooling chamber flakes off. This debris bypasses the fuel filter and travels up to the fuel rail to jam the fuel injectors.
A fuel injector jammed open by a speck of aluminium or paint sprays a constant stream of raw petrol into the cylinder whenever the ignition is on. This liquid fuel washes past the piston rings into the oil pan. The oil thins out and the level on the dipstick rises. To test this theory, attach a fuel pressure gauge to the Schrader valve on the fuel rail. Turn the key without starting the engine to prime the pump. The pressure should hit 43 psi and hold steady. A rapid pressure drop the moment the pump stops indicates a stuck injector.
Volvo Penta Diesel Faults
Diesel engines like the Volvo Penta D4 or D6 introduce fuel dilution through different mechanisms. These blocks lack intake vacuum regulators. Fuel enters the sump through a mechanical failure in the high pressure system.
