Why does my Boston Whaler fuel gauge give inconsistent readings?
I have a 2018 Boston Whaler 18ft, and the fuel gauge has started giving improper and inconsistent readings. Sometimes it bounces around, and other times it just seems totally wrong for the amount of fuel I have. What is the most likely cause and how do I test it?
Answer
Inconsistent fuel readings on a modern Boston Whaler usually stem from a corroded earth connection or a sticking float inside the tank sender unit. To fix the fault, you need a multimeter to test resistance on the pink signal wire and verify the black earth wire has a clean path to the negative busbar.
Whaler Fuel Systems
A modern Whaler (like a 170 Montauk or a Dauntless) uses a standard American resistance scale. The fuel sender reads 240 ohms when empty and 33 ohms when full. Boston Whaler fits a cylindrical reed-switch sender into the central polyethylene fuel tank. WEMA or KUS manufacture most of these units. You can access the sender via a circular deck inspection hatch located under or just aft of the helm seat.
Cylindrical senders outlast the old mechanical swing-arm styles. Saltwater ingress at the tank connections can still cause problems. A float swollen by ethanol-blended petrol (E10) will also make the gauge jump around or stick in one position.
Checking Wiring and Earth
Check the wiring before you unscrew anything on a petrol tank. Bad earths cause erratic gauge needles. The needle might bounce when the hull hits a wave or when you turn on another electrical switch at the console.

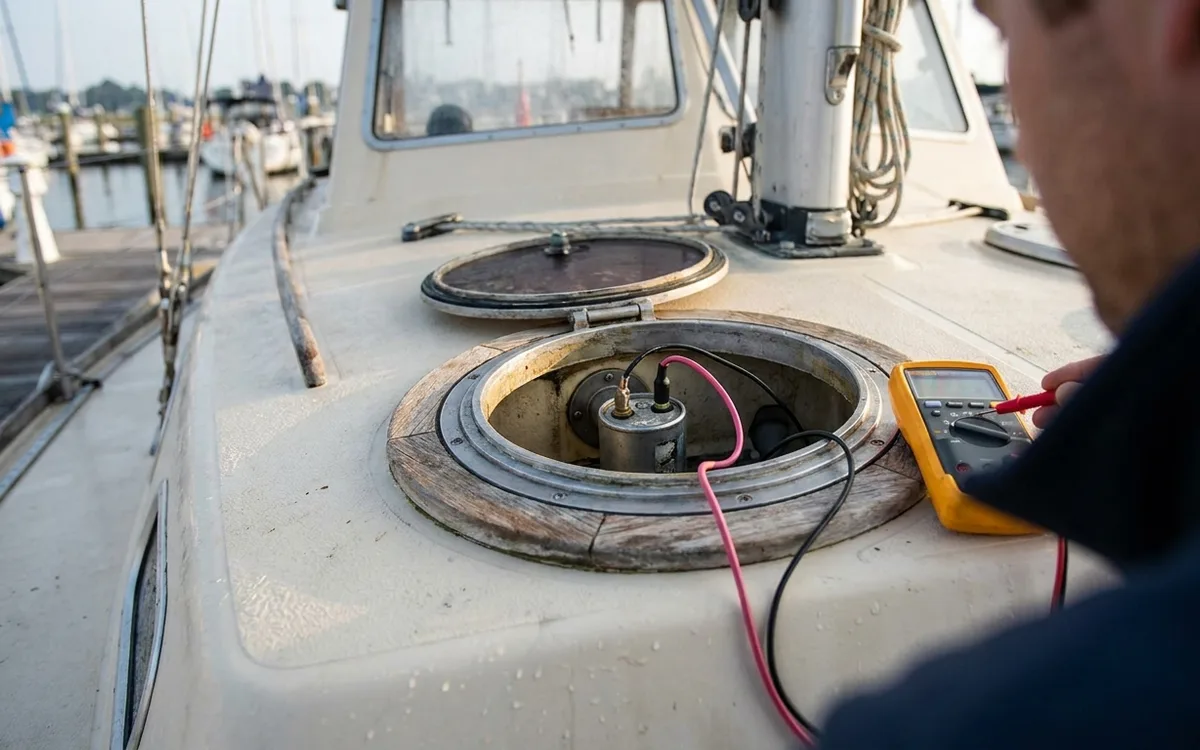

- Open the deck access hatch and find the pink signal wire and the black earth wire connected to the top of the sender.
- Inspect the crimped connections. Saltwater pools easily on top of Whaler tanks. Cut back any green or powdery connections and fit new adhesive-lined heat-shrink ring terminals.
- Set a multimeter to continuity to check the black wire against the main negative busbar at the helm. Run a temporary jump wire from the sender earth directly to the battery negative if the resistance is high. A suddenly stable gauge means you must run a new permanent earth wire.
Testing Gauges and Senders
Isolate the fault to either the dashboard gauge or the tank sender unit once you confirm the wiring is sound. Ensure the area is well-ventilated. Never create sparks near the petrol tank.
