Navigator 48: Why are my helm controls and bow thruster dead?
I have a 2004 Navigator 48 and both my helm controls and bow thruster have suddenly become completely inoperative. Neither the electronic throttles nor the thruster joystick will wake up. Where should I start looking to get my steering and manoeuvring systems back online?
Answer
When the electronic engine controls and bow thruster fail simultaneously on a Navigator 48, the fault is almost always a lost power feed or a severed common ground at the helm. These systems use independent heavy-duty power circuits but share the low-current distribution, meaning you must trace the wiring behind the dashboard instead of inspecting the heavy cables in the bilge.
Check Helm Sub-Panel Fuses

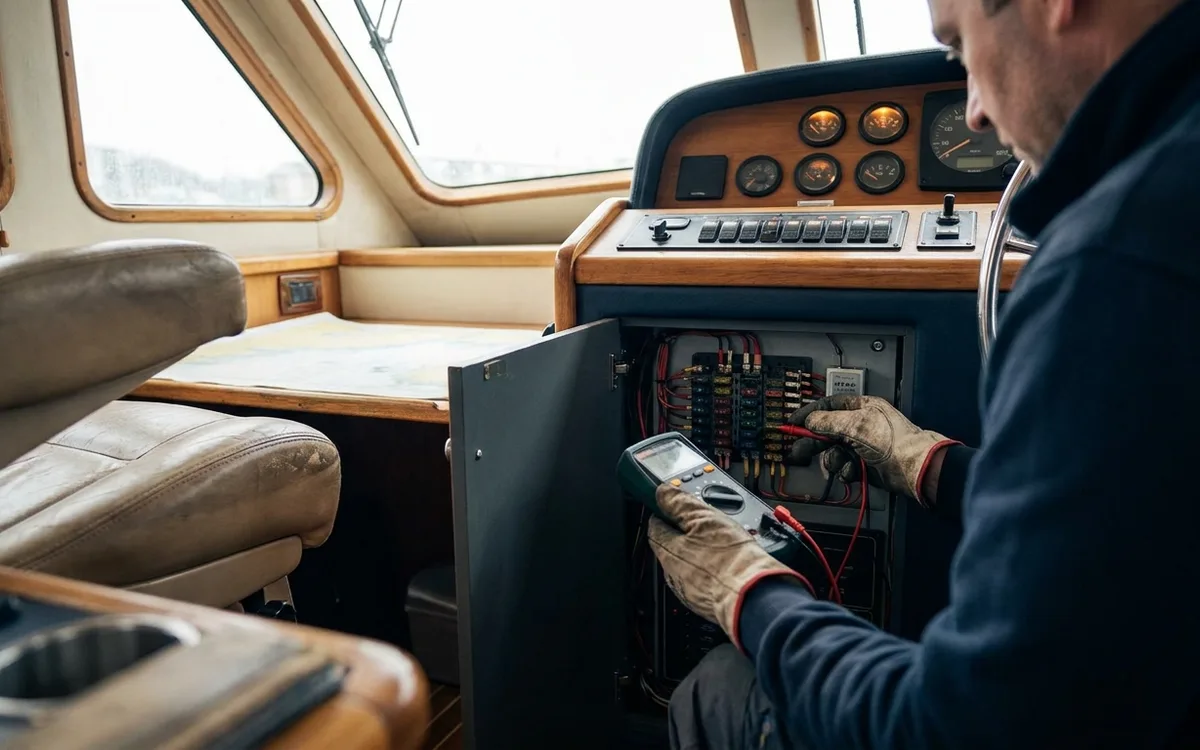

The 2004 Navigator 48 features a lower helm and a flybridge. If both stations die, the fault lies in the engine room distribution. A single dead station isolates the problem to that specific console. Crawl under the dead helm and locate the blade fuse block.
The bow thruster control panel relies on a 5A inline ATO/ATC control fuse to send a signal to the high-current contactor in the bow. Given the boat's vintage, this is likely a Side-Power unit. The engine controls will have a 10A or 15A feed. These are usually ZF Mathers MicroCommander or Volvo EDC setups. If a previous owner wired the thruster joystick trigger and the engine control wake-up wire to the same accessory switch, a single blown 50-pence fuse will knock out both systems.
Inspect the Ground Busbar
A dropped negative return is the classic cause of multiple helm systems failing at once. Look behind the steering pump for the main negative busbar. This is a solid tinned-copper strip covered in black or yellow wires.
- The entire helm grounds through one heavy-gauge cable (usually 2 AWG or 4 AWG) running back to the engine room negative bus.
- Give every wire on that block a firm tug. A retaining nut that has vibrated loose will break the circuit.
- Remove the main ground lug and scrub it with a wire brush until bright. Spray the metal with a corrosion inhibitor like Boeshield T-9 and tighten the 5/16-inch nut to roughly 12 Nm.
Isolate the batteries at the main switches before putting a spanner anywhere near these terminals to avoid accidental shorts.
Test the Control Processor
If the helm fuses and grounds are intact, head down into the engine room. Electronic controls use a central processor box mounted on the bulkhead. For ZF Mathers or Glendinning systems, look for a grey or black metal box with mechanical push-pull cables exiting to the gearboxes and injection pumps.
