Why does my Sea Ray have 12V at the batteries but no power at the helm?
I have a 1990 Sea Ray Sundancer 28. Both battery switches are turned on and all three batteries have good 12V power, but absolutely nothing is working at the helm or cabin switches. Where do I start looking?
Answer
If your batteries show a healthy 12V but the helm and cabin are completely dead, the main DC feed has been interrupted between the battery switches and the main distribution panels. On a 1990 Sea Ray Sundancer, this stems from a tripped main inline breaker in the engine bay, a failed rotary battery switch, or a corroded main ground on the engine block.
Test Battery Health
Before dismantling the wiring, confirm the batteries can deliver current. A degraded battery might show 12.2V at rest but drop to zero under load. Lift the bilge pump float switches. Sea Ray wires these directly to the batteries, bypassing the main rotary switches. If the pumps run vigorously, the batteries are healthy. You can then trace the wiring fault.
Reset Main Inline Breakers

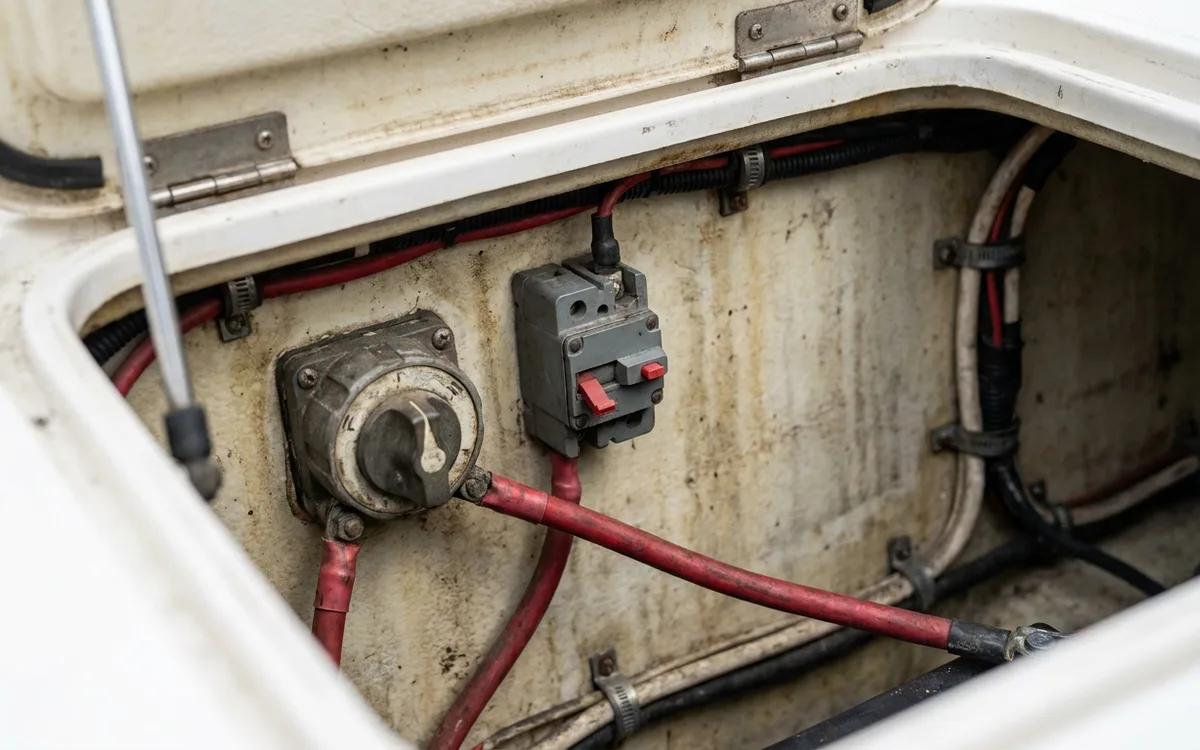

Sea Ray installs heavy inline circuit breakers within 18 inches of the battery switches. These protect the main cables running to the helm and cabin. On a 1990 Sundancer 28, check the engine room bulkhead near the Perko or Guest selector switches. Look for square block breakers of 40A or 50A capacity.
If a breaker trips, a small red or yellow lever drops down. Push this lever back up until it clicks into the housing. A breaker refusing to reset indicates a dead short in the forward cabling. Often, an aged breaker simply fails mechanically. A replacement Bussmann or Blue Sea Systems surface-mount breaker costs around £35 and takes ten minutes to fit.
Test Battery Switches
Setting the battery switches to ALL or BOTH guarantees nothing. Original 1990 rotary switches suffer from internal corrosion. The copper contacts fail completely.
Set a digital multimeter to DC volts. Place the black probe on the main battery negative terminal. Place the red probe on the switch output stud (the stud feeding the breakers). A reading of 12.5V on the input stud but zero on the output stud means the switch is broken. Replace it immediately. Bypassing a broken switch creates a severe fire risk. A modern Blue Sea Systems m-Series switch makes a reliable retrofit.
Inspect Main Engine Grounds
A 12V system requires a complete circuit. A broken negative return kills power exactly like a broken positive feed. On twin-engine Sea Rays, the main battery negative cables run directly to the engine blocks. They usually terminate on a bell housing stud or the starter motor mounting bolt. From there, a heavy black or yellow wire runs forward to the negative busbar behind the helm.
