Can I bridge the remote wire to the power terminal to turn on a marine amp?
I have 13.2 volts at my marine amplifier's power and ground terminals, but the amp is completely dead and won't turn on. Can I just bridge the remote terminal directly into the main power wire to make it turn on, instead of running a new wire all the way back to the radio?
Answer
Yes, you can temporarily bridge the 12V main power terminal to the remote (REM) terminal using a short piece of wire to force the amplifier to turn on. However, if you leave it permanently linked without a switch, the amplifier will remain powered up constantly and flatten your house battery within a couple of days.
Bridging for diagnostics

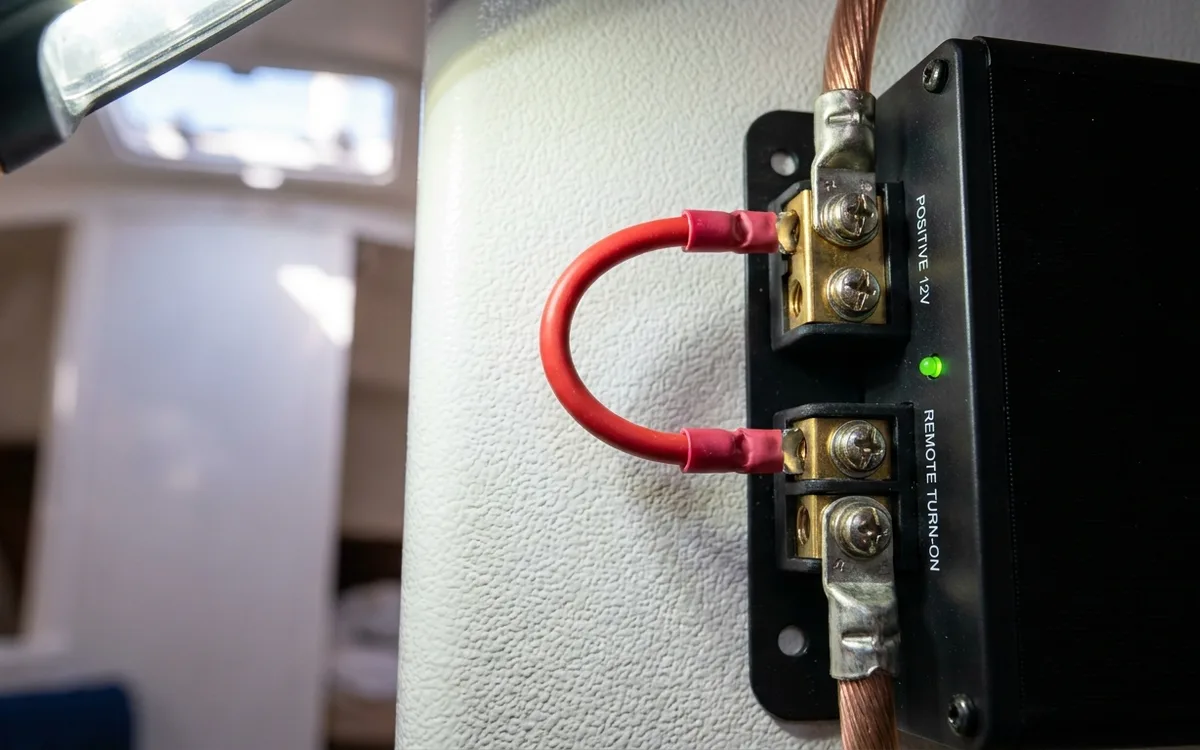

Bridging is the standard boatyard method for proving an amplifier works before you rip out headliners to trace a faulty remote wire. Take a short piece of 16 AWG or 18 AWG tinned marine wire, strip the ends, and touch one end to the positive 12V (B+) terminal and the other to the REM terminal on the amp block.
Even if your multimeter shows 13.2 volts at the terminals, a severely corroded earth connection can cause voltage to collapse the moment the amp tries to power up. Bridging the remote is the quickest way to test if the amp will draw current and power on. If the amplifier status LED lights up blue or green and the speakers click to life, your main power and earth cables are fine. The fault lies entirely with the remote wire coming from the stereo head unit (often a blue or blue/white wire).
If the amp stays dead or shows a red protect light when bridged, check the internal 20A to 40A ATO blade fuses on the amplifier chassis. If the fuses are intact, the amplifier itself has likely suffered internal corrosion or component failure. This happens frequently on older marine units exposed to damp air.
Permanent bridges drain batteries
You might feel tempted to leave that short wire bridge in place permanently. Do not do this. Marine amplifiers draw a significant quiescent current sitting idle. Even highly efficient Class D marine amplifiers, such as the Fusion Signature Series or JL Audio M-Series, draw between 1 and 3 amps of resting current while waiting for an audio signal.
Over a 24-hour period, a 2-amp parasitic draw strips 48 amp-hours from your battery bank. Leave the boat on its mooring for a week with the amp bridged, and you will return to dead batteries. Deep cycling a standard lead-acid or AGM domestic bank below 50% capacity repeatedly shortens its lifespan. A permanently bridged amplifier is a common cause of mysterious battery drain on second-hand boats.
Alternatives to running new wire
Always isolate the main 12V positive feed at the battery switch before making permanent wiring changes to prevent accidental shorts. If pulling a new 18 AWG wire through the bulkhead to the stereo proves too difficult, you have three reliable workarounds to power the REM terminal locally:
