What is a shore power battery charger and how does it work?
I'm trying to understand the electrical setup on my new-to-me 34ft cruiser. There is a large blue box labelled 'battery charger' connected to the shore power inlet. What exactly does it do, and do I leave it switched on all the time when I'm plugged in at the marina?
Answer

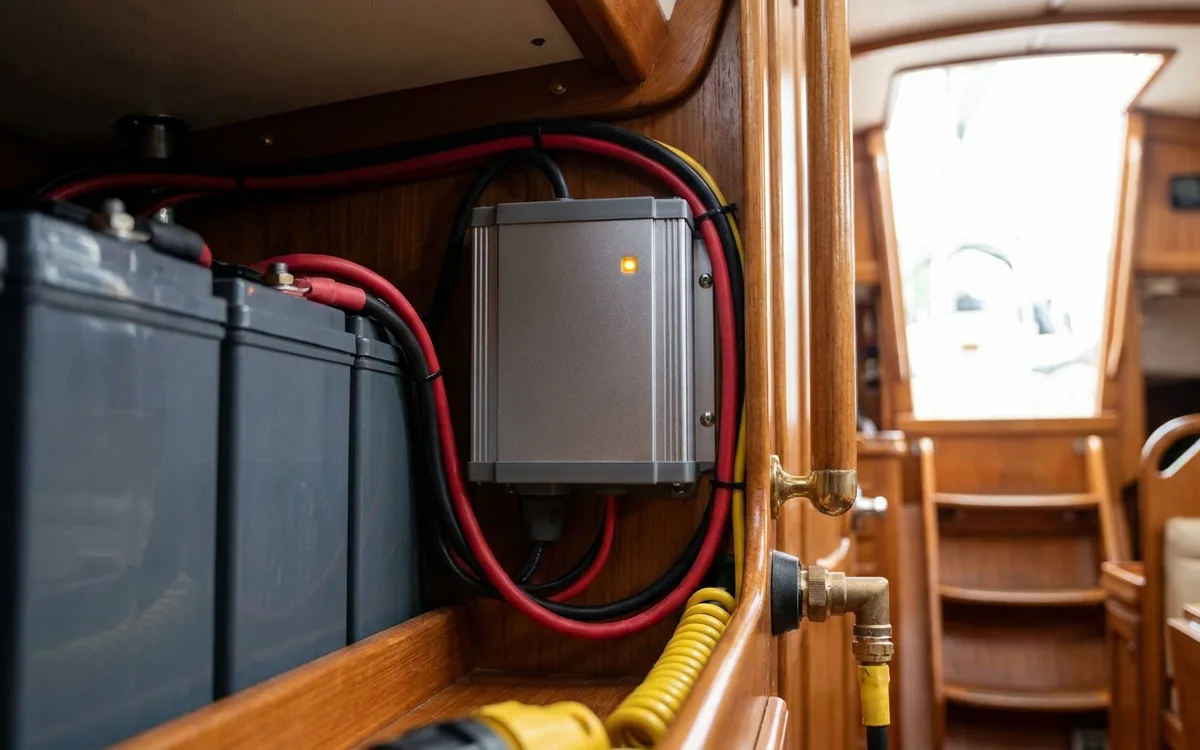

A marine shore power battery charger converts 230V AC mains electricity from the marina pontoon into 12V or 24V DC to replenish your boat's battery banks. Modern units act as both a multi-stage smart charger to maintain battery health and a direct power supply for running your onboard DC equipment while plugged in.
How smart marine chargers work
Cheap automotive chargers push a constant voltage until switched off. A marine unit uses a microprocessor to monitor battery state and adjust its output. It typically runs through a three-stage charging profile:
- Bulk: The charger pushes its maximum rated current (for example, 30A) into the battery to replace the missing energy. The voltage slowly rises as the battery fills to around 80% capacity.
- Absorption: The charger holds a constant higher voltage (typically 14.4V for standard flooded lead-acid) while the current gradually drops off. This stage saturates the lead plates to reach 100% capacity without overheating them.
- Float: The voltage drops to a maintenance level, usually between 13.5V and 13.8V. The charger supplies a tiny trickle of current to counter natural self-discharge.
Sizing and output capabilities
The general rule for sizing a shore power charger sets maximum output between 10% and 20% of your total domestic battery bank capacity in Amp-hours (Ah). If you have a 300Ah house bank, a 30A charger is the standard choice. Going too small means the generator or shore power runs much longer to achieve a full charge. Going too large can overheat conventional lead-acid batteries.
Modern marine units like the Victron Blue Smart, Mastervolt ChargeMaster or Sterling ProCharge Ultra feature two or three isolated DC outputs. A single unit simultaneously charges your domestic bank, the engine starter battery and a dedicated bow thruster battery without letting power bleed between them. Expect to pay between £250 and £400 for a quality 30A unit.
Acting as a power supply
Owners often ask if they should turn the charger off once the batteries are full. With a modern switch-mode charger, leave it switched on the entire time you are plugged into shore power. AC mains electricity can kill. Ensure the shore power lead is disconnected from the pontoon before opening the charger casing or touching any 230V wiring.
