What should I consider when choosing standing rigging for my sailboat?

Choose standing rigging to match your yacht's original design loads, mast fittings and sailing plans; 1 × 19 stainless steel wire is usually the sensible choice for a cruising yacht designed for wire. Check the age, specification and condition of the complete system first, because new shrouds cannot compensate for damaged chainplates, incompatible terminals or corroded mast attachments.

Check specifications and attachment points

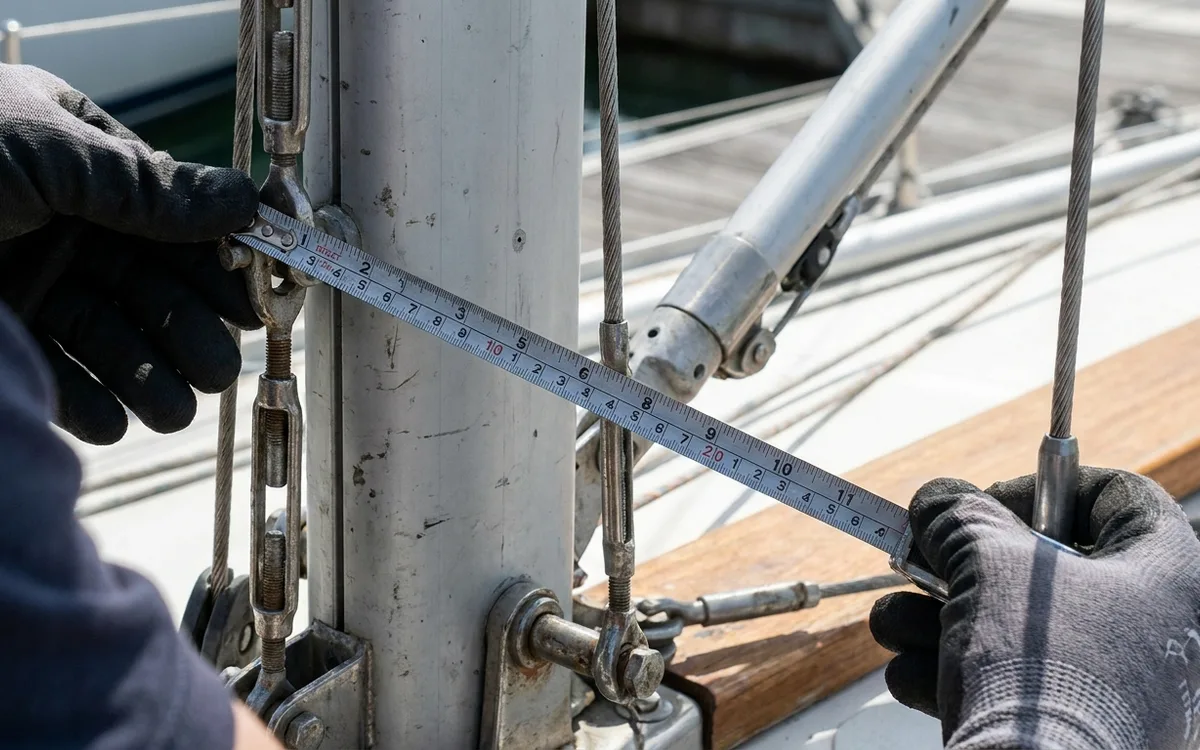

Start with the builder's rigging schedule, mast maker's records and any replacement invoices. Record each stay and shroud's wire diameter, terminal type, clevis-pin diameter and attachment arrangement. Measure replacement lengths between the specified bearing points, not along the exposed wire.

Cruising yachts around 30 to 40 feet may use wire in the 5 to 8 mm range, but displacement, rig height, spreader geometry and each stay's job determine the sizes required. Those figures provide context, not a sizing table. Copy the existing wire only after confirming it matches the approved specification.

Have the rigger inspect:

• Chainplates, including concealed sections below deck and any surrounding wet or cracked structure.
• Mast tangs, T-terminal backing plates, spreader roots and spreader tips.
• Turnbuckles, toggles and clevis pins for cracks, wear, distortion and seized threads.
• The forestay inside the furling foil, where defects are easily missed.

Keep clear of suspended spars, and support the mast securely before disconnecting any standing rigging.

Choose the rigging material

1 × 19 stainless steel wire is the usual starting point for conventional cruising rigs: nineteen wires laid into one stiff strand. Specify marine standing-rigging wire with a documented grade and breaking load from an identifiable supplier. Grade 316 is common, but the material label alone does not establish manufacturing quality.

Compacted-strand wire, such as Dyform-type products, can provide greater strength and lower stretch at a given diameter. It costs more and needs terminals explicitly approved for that wire construction. It can suit performance cruising, but any change in diameter requires a load and stretch assessment.

Rod rigging offers low stretch and reduced windage, but needs specialist manufacture, inspection and servicing. Follow the manufacturer's specification when replacing an existing rod system. Converting a wire rig to rod requires design work.

Fibre rigging, including suitable engineered HMPE systems, saves weight aloft but brings different requirements for stretch, creep, chafe, ultraviolet exposure and terminations. It needs a properly designed installation and an inspection plan.
