How do I tune the standing rigging on a sailboat?

Tune standing rigging by centring the mast athwartships, setting the specified rake and pre-bend, then bringing the shrouds to the correct tension in small, balanced adjustments. Finish under sail on both tacks, checking that the mast stays fair and the leeward shrouds do not become excessively slack.

Inspect the rig first

Start with the mast step, chainplates, terminals and turnbuckles. Tension cannot compensate for a moving mast base, cracked fitting or soft deck beneath a chainplate. Check that the mast heel is secured. On a keel-stepped mast, check its support at the partners, where it passes through the deck.

Look for broken wire strands, cracks at swage entrances, rust staining, bent clevis pins and seized threads. Investigate any defect before adding load. Keep the mast supported throughout and never remove a loaded stay or shroud.

Have the boat's rigging guide, two suitable spanners, a tape measure, a main halyard and a tension gauge matched to the wire diameter to hand. Loos gauges are commonly used, but their scales and conversion tables differ by model. Measure the wire itself, not its terminal.

Record the existing settings and exposed thread lengths before starting. There is no universal turnbuckle torque. You are setting wire tension and mast geometry, not tightening a bolt to a torque figure.

Centre the mast, set rake

Work afloat in sheltered water with little wind, sails down and normal cruising loads aboard. Check whether uneven tankage or stores are making the boat list. A spirit level on the cabin sole is not a reliable reference.

1. Reduce adjustable backstay tension. Ease the lower shrouds enough to let the upper mast move, following the rig's instructions. Take particular care with swept-spreader rigs, as shroud tension also supports the mast fore and aft.

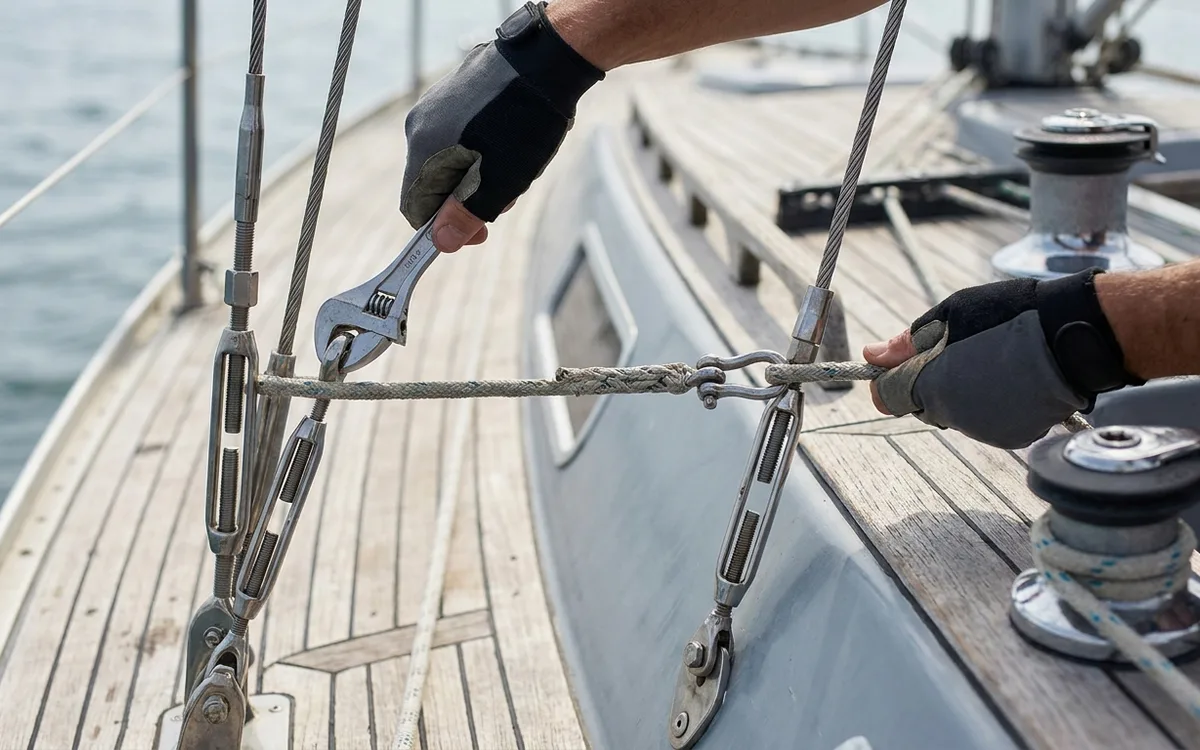

2. Take the main halyard to a repeatable point at one cap-shroud chainplate, pull it consistently taut and cleat it.
3. Transfer it to the equivalent point opposite, checking that the halyard runs clear. Adjust the cap shrouds until both measurements match.
4. Adjust in pairs: ease the cap shroud on the side the halyard cannot reach and tighten the opposite one. Recheck after each adjustment.

Set fore-and-aft rake to the boat or sailmaker's specification, usually by adjusting forestay length. In still conditions, a weight suspended from the main halyard can provide a reference, allowing for the boat's trim. Rake is the whole mast's aft inclination; pre-bend is its deliberate forward curvature.

Set tension and mast shape

Tighten the cap shrouds progressively, alternating sides and counting equal turns once the mast is centred. Hold the wire terminal with a spanner to prevent it twisting. Keep adequate thread engagement at both ends of every turnbuckle.
