How do I identify the right turnbuckles and locking clips for my lower shrouds?

Identify your lower-shroud turnbuckles by their maker, thread diameter and pitch, end fittings and clevis-pin diameter; shroud wire thickness alone will not identify a replacement. Choose the locking clips afterwards, because clevis-pin retainers and devices that stop the turnbuckle unwinding are different parts.

Inspect the existing fittings

Start at deck level, where each lower shroud connects to its chainplate. Clean the turnbuckle and check the body, threaded terminals and toggle for a stamped maker's name, thread size or part number.

The boat model and build year can narrow the search, but previous owners may have replaced the original rigging. Forward and aft lowers can have different fittings, so check each type separately.

Before withdrawing a pin or unscrewing a loaded terminal, have the mast properly supported and the relevant shroud unloaded under a rigger's direction.

Take clear photographs of the complete assembly, both threaded ends, the bottom toggle and the existing locking arrangement. Photograph markings before polishing them away.

Measure threads, pins and adjustment

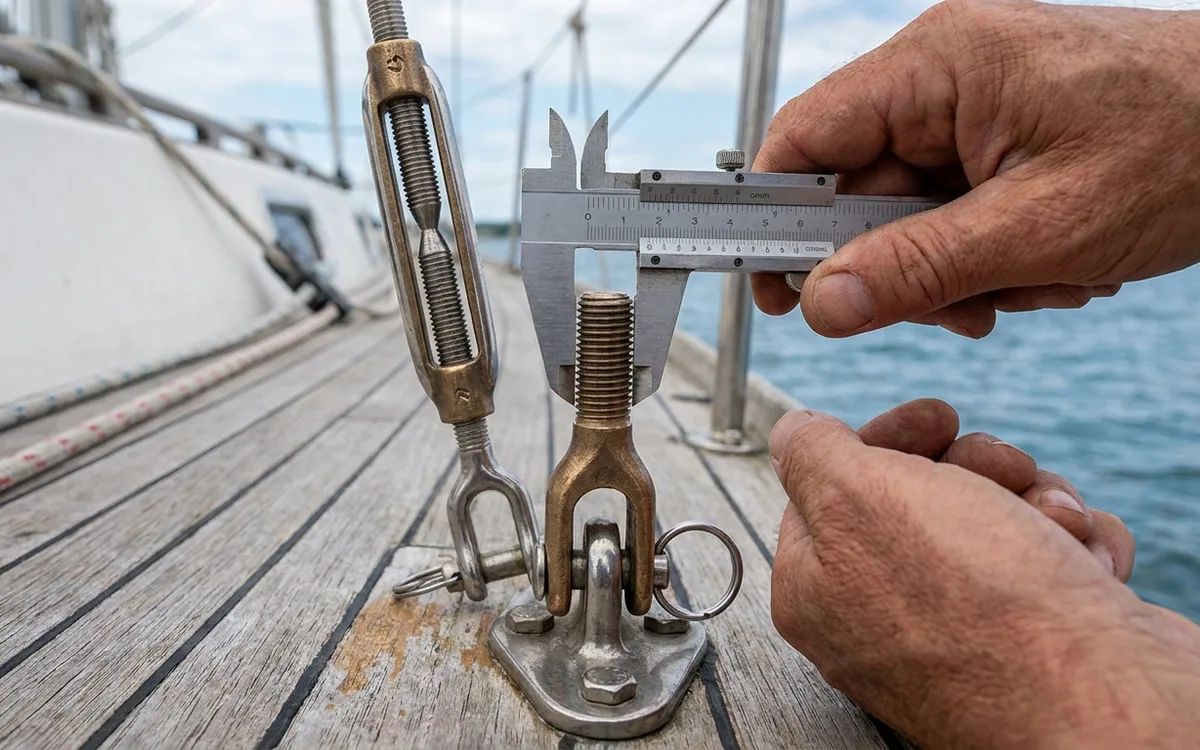

Use a vernier calliper to measure diameters and a thread-pitch gauge to check the thread. Measure across the crests of the exposed male thread, rather than across the turnbuckle body or smooth shank.

• Thread diameter: record the actual measurement. Common examples include M8, M10 and M12, plus imperial 3/8 in, 7/16 in and 1/2 in, measuring approximately 9.53, 11.11 and 12.70 mm respectively.
• Thread pitch and handedness: metric and imperial threads are not interchangeable. Turnbuckles normally combine right-hand and left-hand threads; identify which terminal fits each end.
• Clevis-pin diameter: measure the pin itself. Record the fork's internal width and the chainplate thickness too: the replacement must fit without forcing or excessive sideways clearance.
• Working length: record the assembly's pin-centre-to-pin-centre length at its current setting and the available adjustment in both directions.
• End arrangement: note whether the shroud has a swaged threaded terminal, a mechanical terminal, an eye or a fork, and whether a separate toggle provides articulation.

A near match is not enough: a 3/8 in thread is close enough to M10 to invite an expensive mistake. Never force a terminal into a replacement body to test compatibility.

For a complete replacement, the rigger must also confirm the assembly's rated strength and adequate thread engagement. Matching dimensions alone does not establish suitability.
