Where are the seacocks on a Hallberg-Rassy 342 and how do I service them?

On a Hallberg Rassy 342, the primary seacocks are located under the galley sink, in the heads vanity and floor lockers, and directly on the Volvo Penta saildrive leg. Servicing involves inspecting the metal for dezincification, ensuring smooth operation of the ball valves, and verifying that the twin stainless hose clips are tight and free from corrosion.

HR 342 Seacock Locations

Hallberg Rassy groups through hull fittings logically. Builders hide them behind joinery and under the teak and holly sole. A standard HR 342 has five main underwater valves:

• Engine cooling: This valve sits on the Volvo Penta saildrive (a 130S leg paired with the D1-30 engine). Lift the companionway steps to access the small lever on the saildrive unit.
• Galley sink drain: Look on the starboard side. The valve sits directly beneath the sink unit behind the lower locker door.
• Heads intake: This port side valve hides under the floorboard just outside the heads compartment or inside the lower vanity.
• Heads discharge: This port side valve sits under the sole adjacent to the heads or in the bottom of the hanging locker. The exact location depends on the gravity drain setup.
• Washbasin drain: Open the vanity unit locker in the heads to find this valve.

Identifying Factory Fittings

The Ellös factory fitted the HR 342 with DZR (dezincification resistant) brass or marine bronze ball valves threaded onto matching skin fittings. A 'CR' (Corrosion Resistant) or 'DZR' stamp on the valve body identifies these metals.

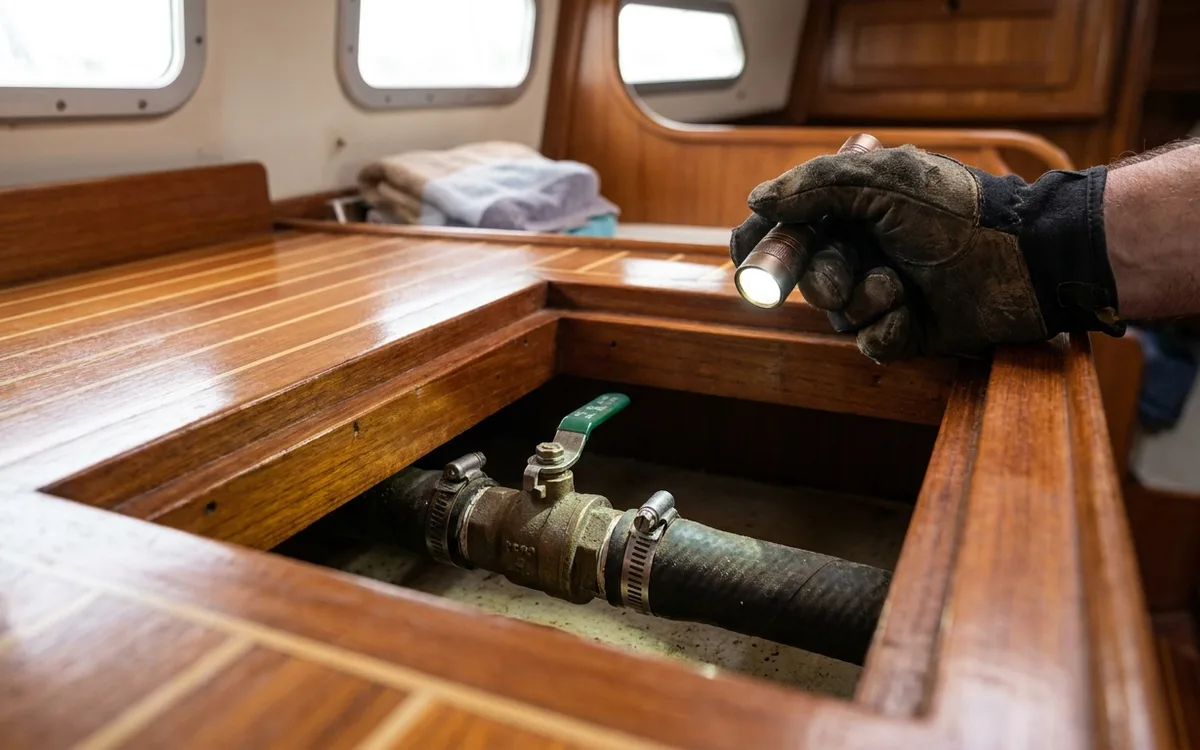

Stray electrical currents or galvanic corrosion attack these metals over time. Inspect the valve bodies with a bright torch. Chalky white deposits or powdery pink spots indicate zinc leaching. This dezincification leaves the fitting structurally compromised and brittle.

Routine Seacock Maintenance

Metal ball valves lack the internal regreasing options of traditional cone seacocks (such as Blakes). Maintenance involves exercising the levers and preventing external corrosion. Never remove a hose or dismantle a seacock while the boat is afloat unless you hold a wooden bung in your hand.

Follow this seasonal routine:

• Exercise the valves: Operate every valve fully open and closed at least once a month. Movement prevents marine growth and scale from jamming the internal Teflon seats.
• Tap test: Lightly tap the valve body and skin fitting with a small metal spanner. Listen for a sharp metallic ring. A dull thud indicates weakened porous metal requiring immediate replacement.
• Inspect handles: OEM valve handles use mild steel with a rubber coating. Rust causes the steel to swell and snap. Spray the exterior of the valve and the handle pivot with a corrosion inhibitor like Boeshield T9 or Lanocote.
• Check hose connections: Hallberg Rassy uses twin stainless hose clips on all underwater hoses. Offset the tails of the clips by 180 degrees. Tighten them using a 7mm nut spinner rather than a flathead screwdriver. This achieves a secure 4 to 5 Nm of torque without stripping the slots.
