How do marine diesel boat heaters actually work?

Marine diesel heaters work by drawing fuel from your main tank and burning it inside a sealed combustion chamber to heat a metal heat exchanger. A fan or water pump then moves cabin air or coolant over this hot metal, distributing heat around the boat while venting dangerous exhaust gases safely overboard.

The Core Combustion Cycle

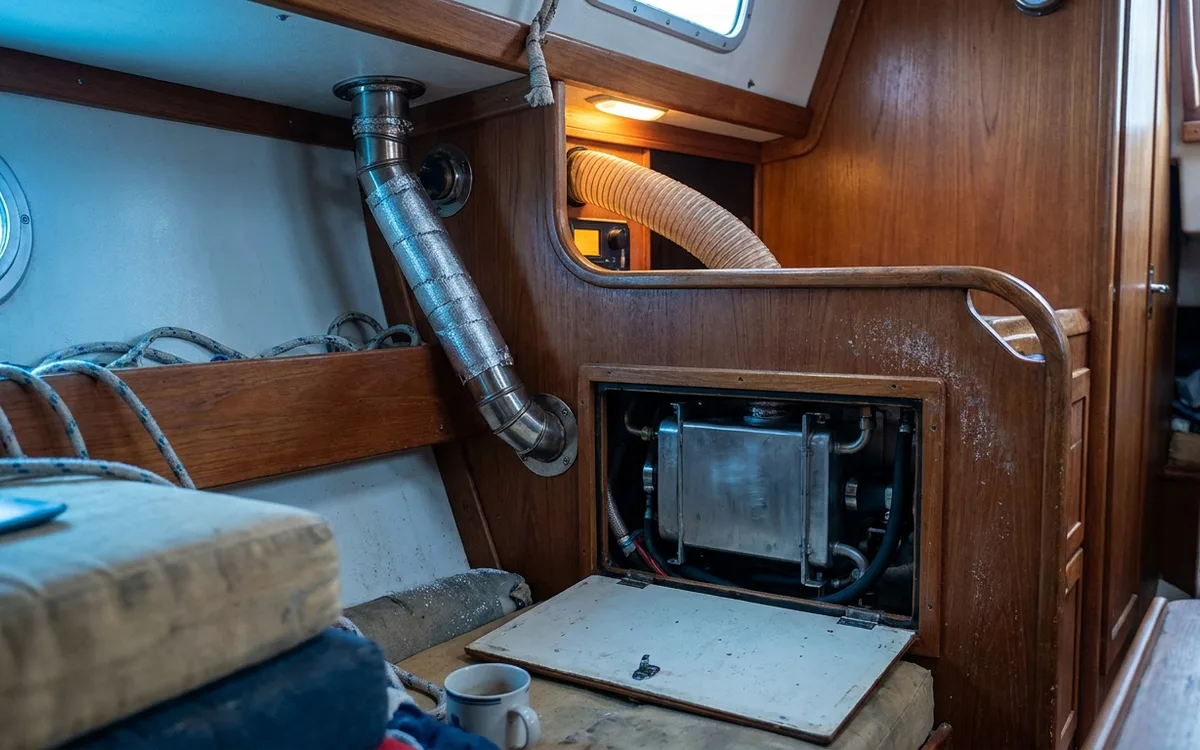

Eberspächer Airtronic, Webasto Air Top and Autoterm units share identical core mechanics. A ticking dosing pump delivers diesel from the tank into the heater. Inside, a 12V or 24V glow pin gets white-hot to ignite the fuel. A combustion fan blows fresh air into the chamber. This creates a controlled fire inside a sealed, finned aluminium heat exchanger. The combustion gases never mix with cabin air. They exit through a stainless steel exhaust pipe routed to a hull skin fitting. Installers must heavily insulate this exhaust and form a high swan neck to prevent seawater flooding back into the burner.

Blown Air Systems

The most common setup on boats under 40 feet is a blown air heater. A secondary fan inside the unit draws cold air from the cabin or outside, blows it over the hot exterior of the combustion heat exchanger, and pushes the warmed air through flexible insulated ducting.

• Ducting sizes: Usually 60mm for 2kW heaters, scaling up to 75mm or 90mm for 4kW and 5kW units.
• Heat distribution: Y-branches and closable vents distribute heat to the saloon, cabins, and heads. Always leave at least one vent permanently open so the heater cannot overheat.
• Pros and cons: They heat the cabin air very rapidly and keep condensation at bay, but thick ducting can be difficult to route through tight bulkheads.

Hydronic Heating Systems

Larger yachts and liveaboards often use hydronic heaters, like the Eberspächer Hydronic S3 or Webasto Thermo Top. Instead of heating air directly, the heat exchanger warms a closed loop of antifreeze coolant. A circulation pump pushes this hot liquid around the boat.

• Radiators and matrix heaters: The hot coolant flows through traditional household-style radiators or small fan-assisted matrix units tucked under bunks and seating.
• Hot water: The loop usually passes through the coil of your calorifier, giving you a full tank of domestic hot water without running the main engine.
• Pros and cons: The 16mm or 22mm heater hose is much easier to route than large air ducting, but the system takes longer to warm the boat and is more complex to bleed and maintain.
