Can a Marine Toilet Joker Valve Start Leaking After 4 Months?
I fitted a brand new Jabsco joker valve at the start of the season, but dirty water is already starting to seep back into the bowl. Can a marine toilet joker valve start leaking after only 4 months, or is something else wrong with my plumbing?
Answer
Yes, a marine toilet joker valve can easily start leaking within four months if exposed to scale build-up, foreign objects, or aggressive chemical cleaners. While these rubber valves are consumable items, premature failure points to user habits or excessive backpressure rather than a manufacturing defect.
Causes of Premature Valve Failure
A joker valve is a rubber non-return valve with a slit. It opens under pump pressure and closes to stop waste flowing back into the bowl. Early failure stems from three specific causes.

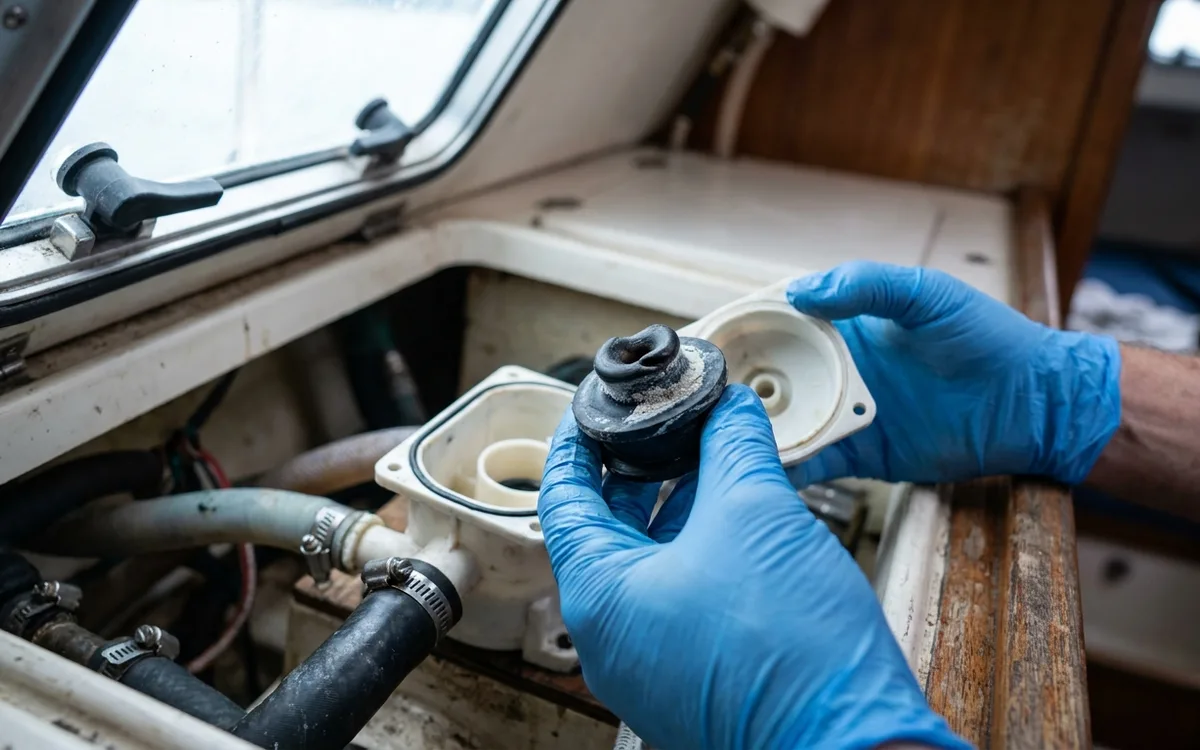

- Uric scale build-up. When urine mixes with seawater, it forms a hard calcium carbonate scale. This crust builds up on the inside of the rubber lips, preventing them from sealing shut.
- Chemical damage. Household cleaners containing bleach or heavy solvents rapidly stiffen and warp the neoprene or nitrile rubber. Once the rubber loses its elasticity, the lips stay permanently puckered open.
- Trapped debris. Wet wipes, dental floss, or human hair easily catch in the slit. This holds the valve open just enough to let dirty water seep back into the bowl.
Diagnosing the Leak
Verify the exact source of the leak before dismantling the plumbing. Always close the inlet and discharge seacocks prior to removing hoses to prevent flooding.
Water slowly filling the bowl after pumping indicates the joker valve is failing to seal against backpressure. If the leak drips onto the heads floor, check the discharge flange. Most manual toilets use a standard joker valve secured by a plastic flange with two or three bolts. Vibration loosens these bolts, allowing waste to weep from the joint. Tighten them firmly. Do not exceed 3 Nm of torque, as overtightening cracks the plastic housing.
Replacing and Maintaining the Valve
Replacing a joker valve takes ten minutes. Remove the discharge hose flange bolts, pull the old valve out, and push the new one in. Orientation matters. The raised lips of the valve must point away from the pump in the direction of the waste flow. The toilet will not pump if fitted backwards.
