How do you test a boat bilge pump?

To test a bilge pump properly, you must manually lift the float switch to verify the motor runs, then pour a bucket of water into the bilge to confirm it actually pumps water overboard. Testing the electrical circuit without testing the plumbing leaves you vulnerable to hidden airlocks or a blocked discharge hose.

Testing switches and overrides

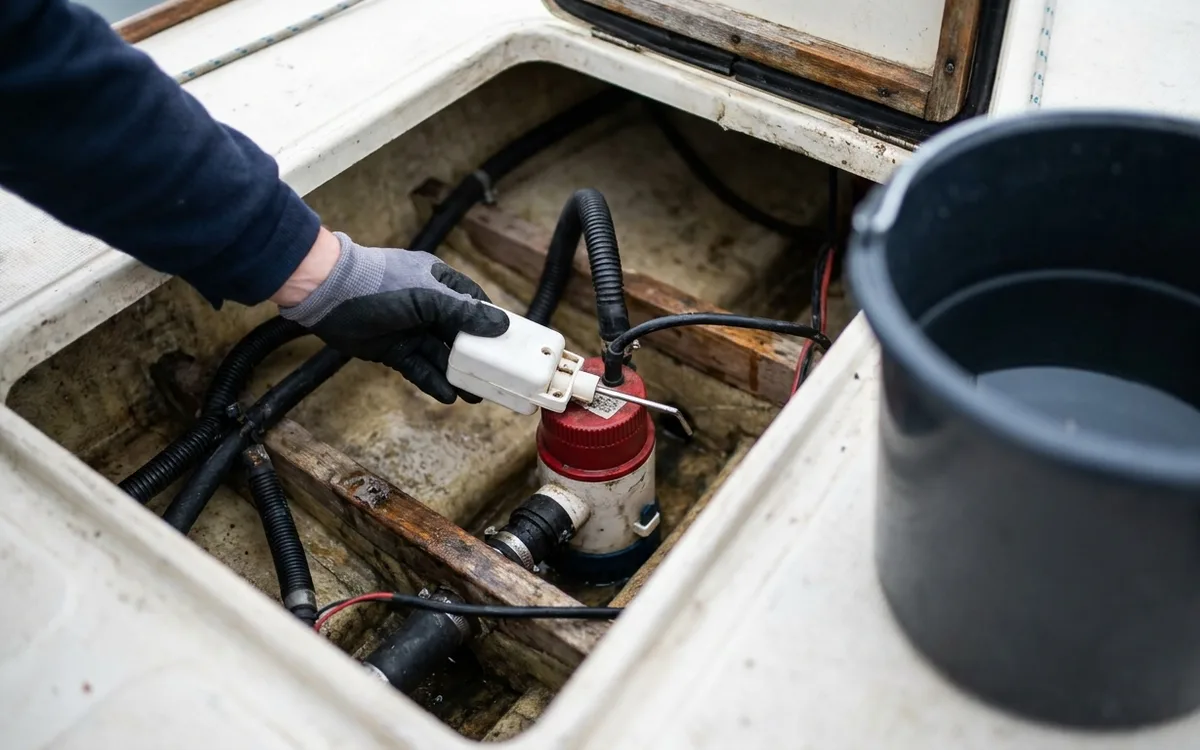

Start by testing the automatic function at the source. If you have a traditional float switch, like a Rule Super Switch or an Attwood mechanical float, lift the flapper arm manually. The pump should kick in immediately. If you have an electronic field-effect switch with sensors (like a Water Witch), place two wet fingers across the metal contacts to trigger it. Next, go to the helm and operate the manual bilge pump switch. Most boats use a three-way toggle switch marked Auto/Off/Manual. The Manual position is spring-loaded so you cannot accidentally leave it running. This overrides the float switch and forces the pump to run. If the pump runs on the manual switch but not the float switch, your float is dead and needs replacing. Isolate all 12V batteries before replacing any wiring to prevent accidental shorts in the wet bilge.

Pumping actual water

Hearing the motor hum does not mean the pump will move water. The plastic impeller can shear off the metal motor shaft, the pump strainer can clog with hair, or the discharge hose can airlock. You must do a wet test. Close any watertight doors, grab a large bucket of fresh water and pour it directly into the bilge sump where the pump sits.

• Watch the water level rise and confirm the float switch activates the pump automatically before the water reaches critical wiring.
• Go up on deck and look at the discharge skin fitting. You want to see a solid, continuous stream of water exiting the hull.
• Listen to the pump. A healthy centrifugal pump drops in pitch when it bites into the water and operates under load.
• Once the pump stops, check how much water runs back into the bilge. A little is normal, but a massive rush means your discharge hose run is too long or lacks a vented loop.

Troubleshooting electrical faults

If the pump is dead, grab your digital multimeter. Start at the helm fuse panel or the inline fuse near the battery switch. A Rule 1500 typically requires a 10A or 15A fuse. Pull the fuse and check for continuity. If the fuse is intact, measure the voltage at the pump wire connections down in the bilge. You need at least 12.5V with the batteries at rest.
