Why is my Sea-Doo GTX 215 in limp mode with an oil pressure light?
I have a 2016 Sea-Doo GTX 215. It keeps going into limp mode and throwing an oil pressure light on the dash. What usually causes this, and how can I test it before taking it to a dealer?
Answer
An oil pressure light and limp mode on a 2016 Sea-Doo GTX 215 points to a faulty oil pressure switch, a known weak point on the Rotax 1503 engine. Because a genuine loss of oil pressure destroys the block in minutes, you must physically verify the oil level and filter condition before assuming a sensor fault.
Check Oil Level and Condition

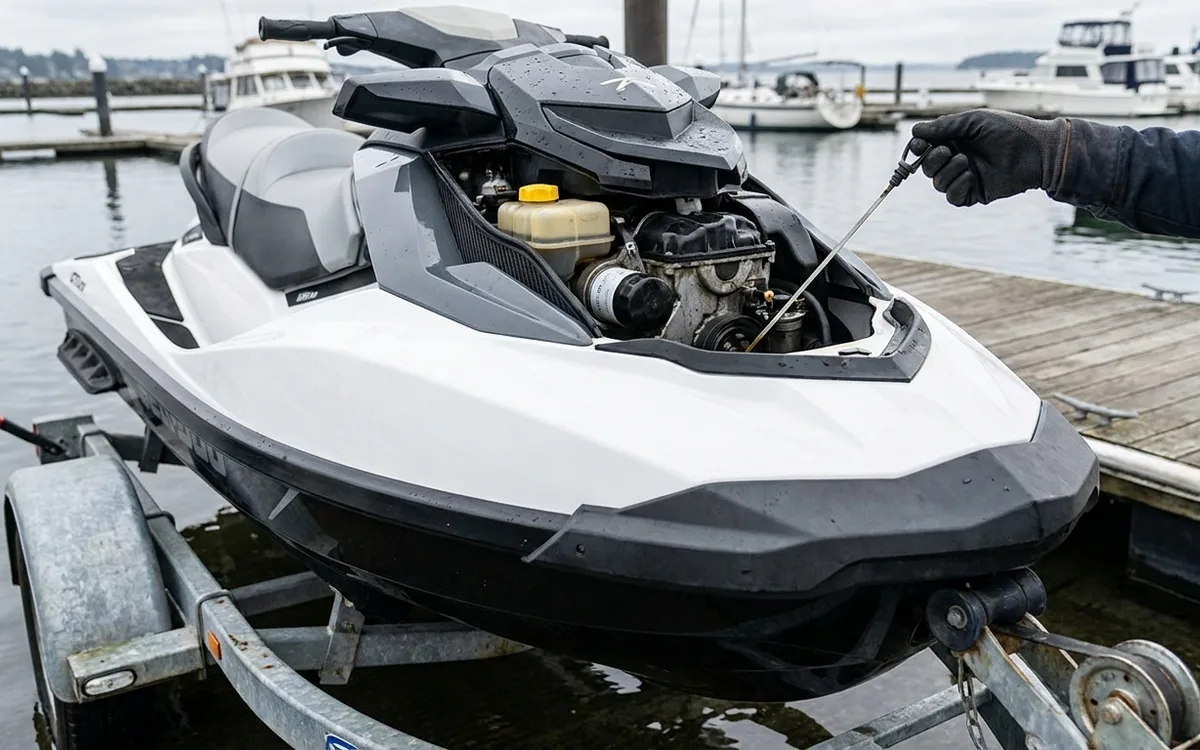

The Rotax 1503 supercharged engine requires precise oil volume. If the oil runs low, the pump starves. If overfilled, the crankshaft whips the oil into foam, causing cavitation and an immediate pressure drop. To check the oil correctly, park the ski perfectly level on a trailer. Run the engine on a flush hose for exactly 30 seconds to scavenge the oil back to the tank. Shut it down and wait another 30 seconds. Pull the dipstick, wipe it, insert it fully without threading it in, and check the level. The oil must sit exactly halfway between the marks. Top up only with BRP XPS 4-Stroke Synthetic Blend 5W-40.
Replace the Oil Pressure Switch
If the oil level is correct, suspect a failed oil pressure switch. The internal diaphragm of this switch frequently ruptures or fouls with carbon. This sends a false low-pressure signal to the ECU and forces the ski into limp mode.
- Location: The switch threads into the engine block on the front starboard side near the oil filter housing.
- Part Number: Ask for BRP part 420256885 (sometimes superseded to 420256886). Expect to pay around £35.
- Replacement: Unplug the single wire spade connector. Use a 21 mm deep socket to back the old switch out. Fit the new switch and tighten it to 12 Nm. Do not over-tighten, or you risk cracking the aluminium casing.
Inspect Filter and Cap O-Rings
A crushed oil filter severely restricts flow. This happens when owners install cheap aftermarket filters or when the paper element becomes waterlogged from internal condensation. Remove the oil filter cap using an E10 inverted Torx socket and inspect the element. Always fit a genuine Rotax filter (part 420956741), which costs about £15.
