Why is there no ignition power to my Yanmar helm panel?
I have a 1983 Shannon sailboat with a Yanmar engine. I turn the key and get absolutely nothing at the helm. Does this engine have a block fuse somewhere, and if not, what other fuses or issues could prevent ignition power to the controls and engine?
Answer
Older Yanmar engines from the 1980s have a hidden 30-amp inline fuse located in the wiring harness just above the starter motor. A blown or corroded fuse cuts all 12V power to the helm panel, leaving you with dead instruments, silent alarms and no ignition.
Locating the Hidden Harness Fuse
Your 1983 Shannon likely has a Yanmar GM, HM or QM series engine. These lack a modern fuse block or breaker panel on the engine block. Yanmar used a single inline fuse to protect the entire helm panel circuit. You will find this on a thick red wire branching off the main positive terminal on the starter motor solenoid.

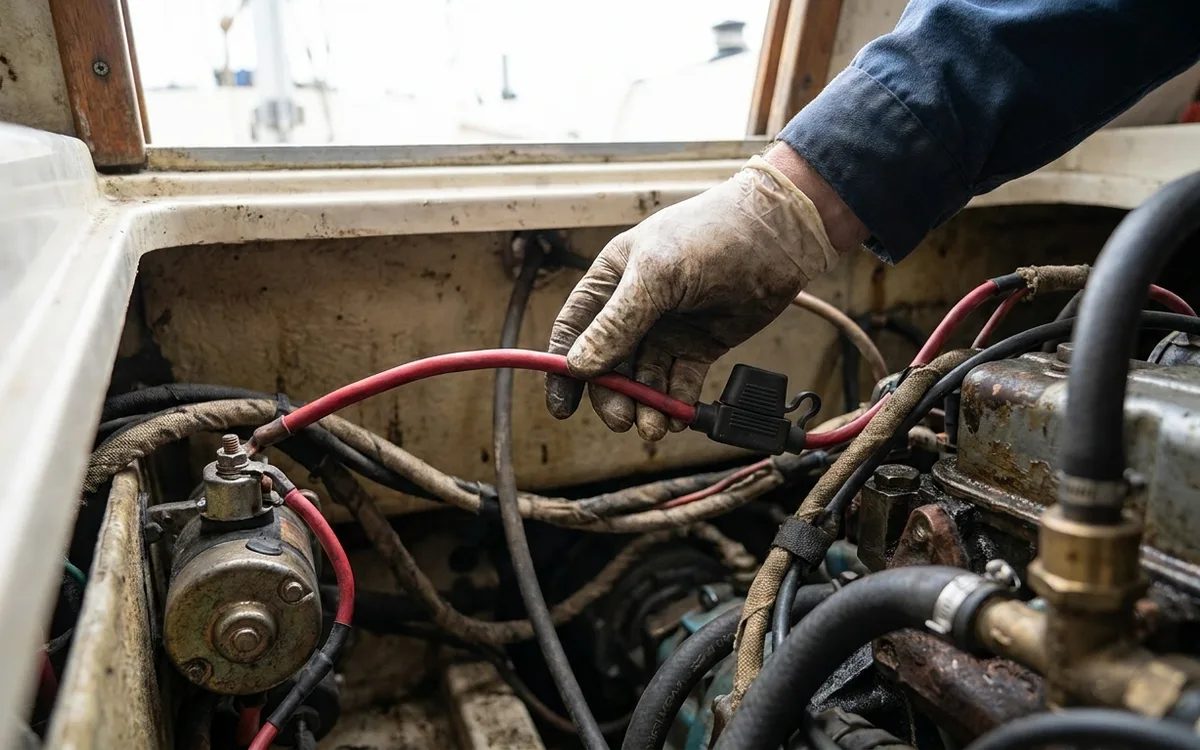

Follow this red wire up from the starter for 15 to 30 centimetres. You will feel a bulge in the electrical tape or black harness sleeve. This rubber capsule holds a 30-amp glass fuse. It sits low in the engine bay and frequently suffers from internal corrosion or vibration damage. Isolate the main battery switches before putting a spanner near the starter motor positive post to avoid shorting your tool against the engine block.
Cut the holder out entirely if the glass fuse is blown or the internal spring has disintegrated. Crimp in a waterproof ATO/ATC blade fuse holder with a fresh 30-amp blade fuse. This upgrade costs less than £10 and vastly improves reliability.
Wiring Loom Connectors
The main wiring harness connector is the next common culprit on a 1980s Yanmar. The manufacturer used a white multi-pin block connector to join the engine loom to the boat wiring. Decades in a damp bilge turn the internal pins green. They crumble and cause a total voltage loss at the helm.
- Locate the white connector block tied off near the rear of the engine or the bell housing.
- Pull it apart and inspect the pins. Black or green metal means power cannot pass.
- Many owners cut this plug out entirely. Rejoin the wires directly using adhesive-lined heat-shrink butt connectors or a marine terminal block.
Battery Isolators and Earth Return
A complete lack of helm power can stem from the main power supply before it reaches the engine. Heavy battery cables and switches are frequent offenders.
