Why won't a rebuilt Webasto Air Top 3500 ignite if fuel is dripping?
I did a complete rebuild of my Webasto Air Top 3500 diesel heater. I carefully cleaned all carbon and put in new parts. The heater is still failing to start. I can hear fuel dripping and sizzling in the heater, but it is not igniting. The battery voltage is strong. What might I have missed?
Answer
If your Webasto Air Top 3500 is sizzling fuel without igniting, the fuel is reaching the combustion chamber but failing to vaporise across the evaporator mesh. The most likely culprit is a degraded or incorrectly installed burner fleece, closely followed by a hidden voltage drop at the glow pin itself during the high-draw start sequence.
The Evaporator Mesh

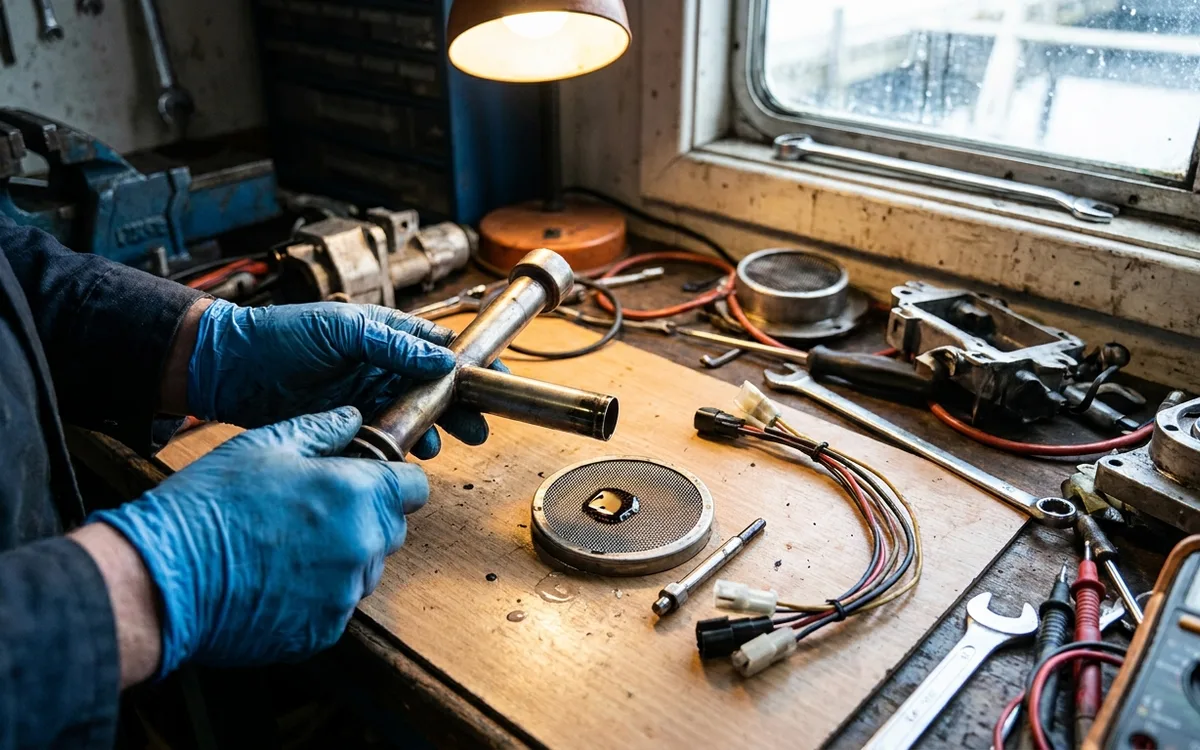

In a Webasto AT3500, fuel does not spray; it drips onto a circular wire mesh pad, known as the fleece, inside the burner tube. The glow pin heats this mesh, vaporising the diesel so it can mix with combustion air and ignite. If you cleaned the old burner by scraping it, you likely destroyed the delicate mesh. The fuel just pools at the bottom and boils when the glow pin gets hot. This creates the sizzling sound you hear.
Cheap aftermarket clones often use inferior mesh that fails to wick the fuel properly. You must use a genuine Webasto burner tube assembly (part number 67955A for the 12V AT3500). Check the tiny ventilation hole in the side of the glow pin boss. If carbon blocks this hole, the initial flame cannot establish.
Glow Pin Voltage Drop
Battery voltage might read 12.8V at the terminals, but the voltage reaching the heater under load dictates success. During the startup cycle, the Webasto glow pin draws 15 to 20 amps. Corrosion in the wiring harness, a loose crimp, or an undersized wire run drops the voltage at the heater plug below 11.5V. The glow pin gets hot enough to sizzle the fuel but fails to reach the bright cherry-red temperature required for ignition.
To test this, back-probe the main power plug at the heater while it attempts to start. A drop of more than 0.5V compared to your battery terminals indicates high resistance in the supply wiring. The glow pin itself doubles as the flame sensor. It should measure roughly 0.3 to 0.6 ohms when cold on a 12V unit. If it reads much higher, the pin is failing and requires replacement.
