Why is my boat's bow thruster not working?
My 12V bow thruster has stopped working reliably: sometimes the joystick produces a click, but there is no thrust. What should I check first, and how can I tell whether it is the battery, controls or motor?
Answer
A bow thruster usually stops working because battery voltage collapses under load, a connection or fuse cuts the supply, or the controls fail to operate the motor contactors. Check the main isolator and panel activation first, then note the symptom: silence, clicking, a running motor without thrust, or failure in one direction.
Start with the symptom
Read the make, model and supply voltage from the motor label. Side-Power/Sleipner, Vetus and Lewmar units have different controls, protection arrangements and duty limits. A lit panel does not prove that the heavy motor circuit has power.
- Completely dead: check the thruster isolator, main fuse, separate control fuse and panel activation sequence.
- Clicking or chattering: suspect low voltage, loose terminals or a faulty contactor.
- Works in one direction: suspect the joystick, control wiring or one side of the reversing contactor assembly.
- Motor runs without useful thrust: suspect a damaged coupling, drive pin, propeller or gearbox, or an obstructed tunnel.
- Stops after repeated use: thermal protection may have operated.
Isolate the thruster before touching cables, contactors or the propeller. Keep hands and swimmers clear whenever it is energised.
Check voltage under load
A battery can show around 12.7V at rest and still fail to deliver thruster current. A roughly 4kW, 12V installation draws about 300 to 350A. At that current, a tired battery or even a small resistance at a terminal can rob the thruster of much of its power.
- Secure the boat and position the meter leads with the supply isolated, then restore power for a brief test afloat.

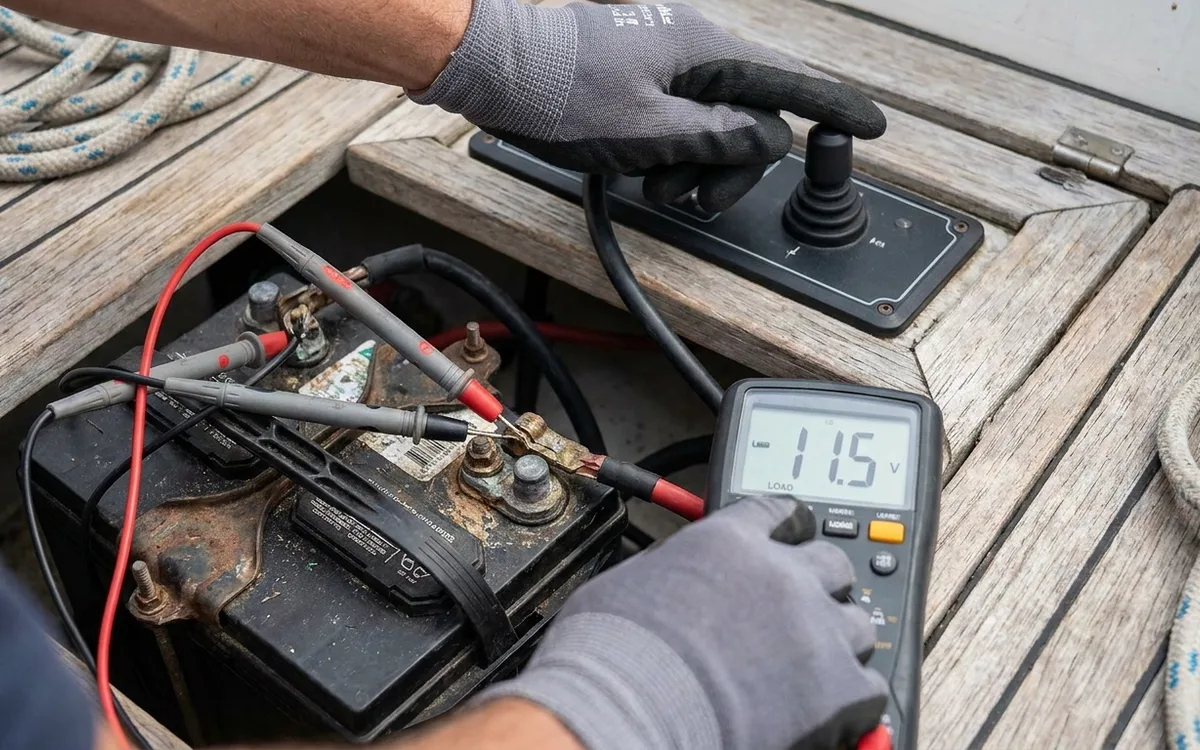

- Measure directly across the battery posts while a helper operates the thruster briefly.
- Repeat at the motor supply terminals, following the manufacturer's terminal identification.
- Compare the readings. A large drop at the battery points to poor charge or battery condition; substantially lower voltage at the motor points to cables, connections, fuse holders or the isolator.
On a conventional 12V lead-acid installation, a fall towards 10V during operation warrants investigation, but the manufacturer's minimum operating voltage takes precedence. A 24V system has its own specified limits. Test individual batteries as well as the complete bank.
With power isolated, inspect positive and negative connections for corrosion, looseness, discoloured insulation and heat damage. Tighten terminals to the component manufacturer's specified torque. Guessing can damage a stud.
