How do I choose a reliable bilge pump with battery backup for my boat?

Choose a marine bilge-pump system with two independently powered pumps, separate automatic switches and a high-water alarm, backed by a usable manual pump. Size the electric pumps by their output at your actual discharge height, and charge the backup battery through an arrangement that prevents a flat domestic bank from draining it.

Measure the bilge and discharge

Measure the available space, the vertical lift from pump to outlet, and the hose length and internal diameter. Check that separate bilge compartments drain into the pump compartment. One powerful pump cannot empty water trapped behind a bulkhead.

Clear out sawdust, cable offcuts, paper labels and oily sludge before choosing equipment. Debris can block a pump strainer or jam a float switch, defeating even an expensive installation. Depending on its design, a manual diaphragm pump may not need a bilge strainer, but it still needs a clean bilge.

Trace the existing outlet and check its position when the boat heels or sits lower in the water. The discharge plumbing must prevent seawater siphoning back aboard. The correct high loop or vented arrangement depends on the outlet position and the pump manufacturer's instructions.

Check output at working height

The large gallons-per-hour figure on the box usually reflects favourable test conditions, often with little or no lift. Ask for the performance curve. Read the output at your installation's vertical lift, then allow for additional losses through hose and bends. Check whether the quoted gallons are US or imperial.

For a typical cruising boat of 30 to 36 feet, a practical starting arrangement is:

• Everyday pump: roughly 800 to 1,100 US gallons per hour nominal capacity, mounted low to clear normal accumulation.

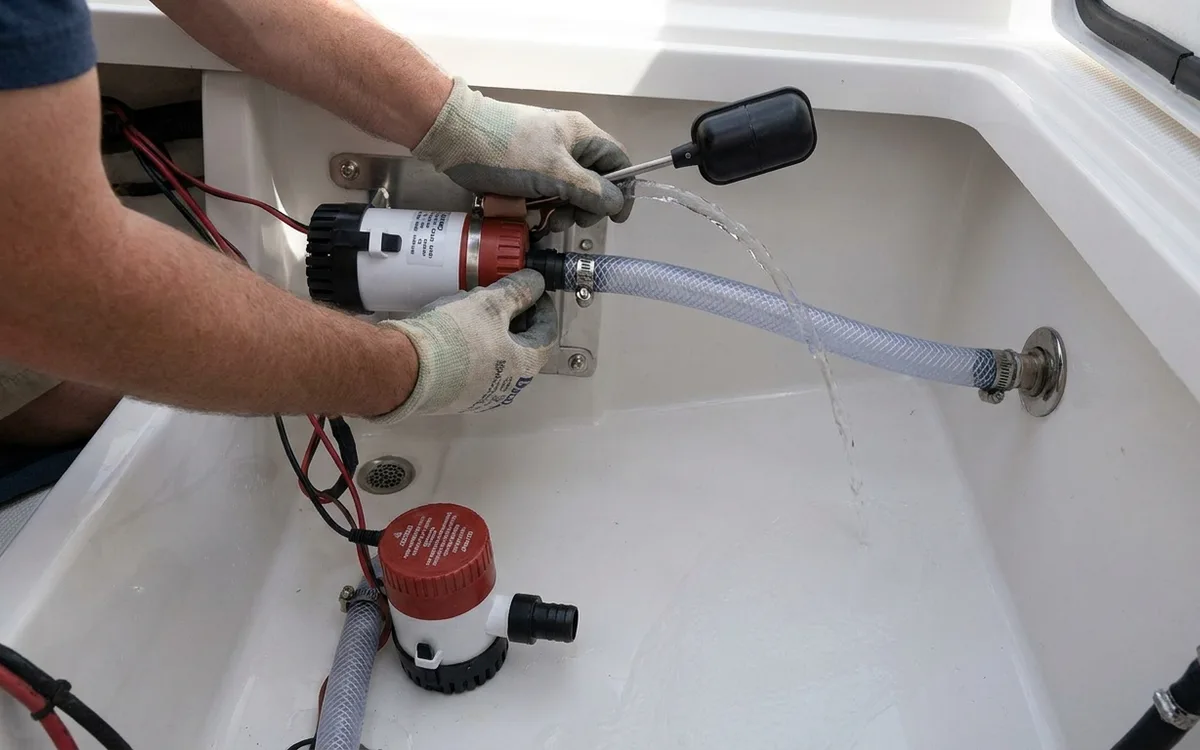

• Backup pump: roughly 2,000 US gallons per hour or more nominal capacity, mounted slightly higher with its own switch.
• Manual pump: permanently installed and operable from a position accessible when the cabin sole is flooded.

These figures are starting points, not a capacity guarantee based on boat length. Deep bilges, long discharge runs and divided compartments change the requirement. Rule, Johnson Pump and Whale are established marine brands. Look for accessible strainers and replaceable switches, and check that spares are readily available.

Use the specified hose bore throughout. Larger pumps commonly need approximately 28 to 38mm hose; reducing this to an existing 19mm outlet can seriously restrict output. Give each electric pump its own discharge where practicable. A shared hose creates a common blockage or backflow path. Bilge pumps are not designed to control major hull damage.

Keep the backup battery independent

Most marine electric bilge pumps already run on batteries. Adding another battery to the same bank increases endurance, but shared wiring, switches and battery faults remain common failure points.
