How can I safely recharge the refrigerant in my boat fridge?
My boat's 12 V fridge runs for long periods but no longer gets properly cold. Can I recharge it myself, and how do I find out which refrigerant and how much it needs?
Answer

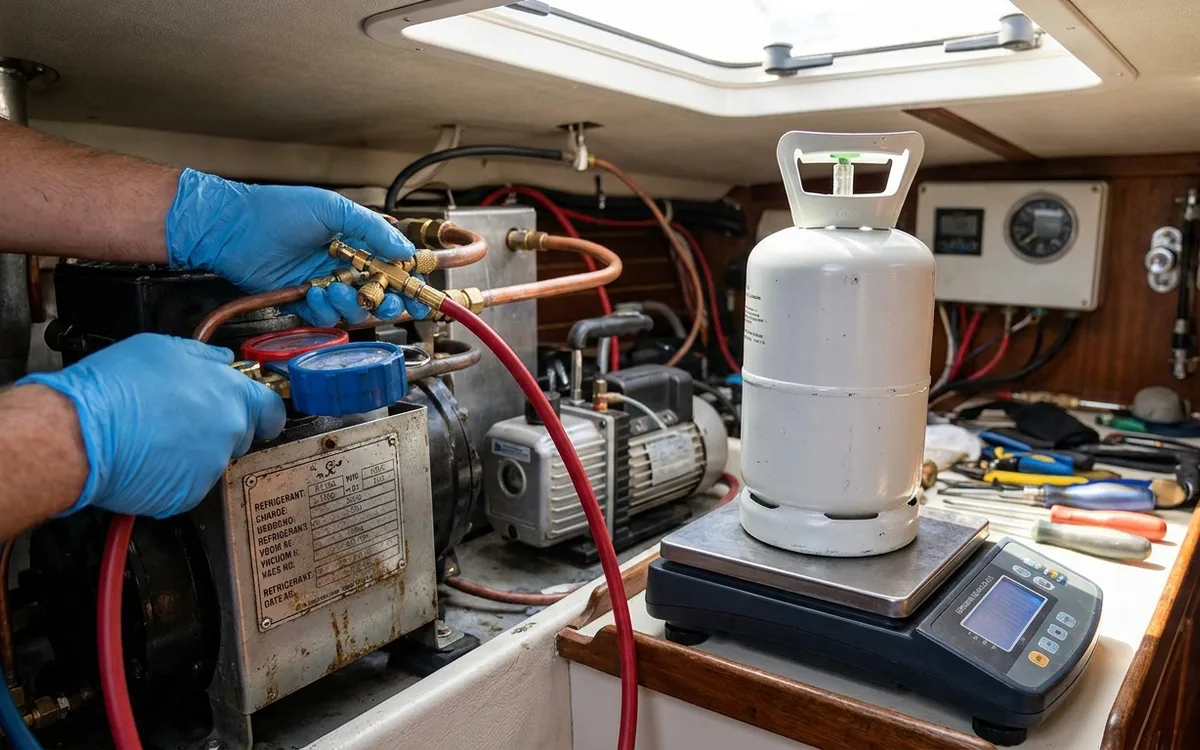

To recharge a boat fridge safely, have a refrigeration engineer repair any leak, evacuate the circuit and weigh in the exact refrigerant charge specified for the installation. Check the electrical supply and condenser cooling first, because low voltage, blocked airflow or restricted seawater flow can mimic a refrigerant shortage.
Checks before buying refrigerant
Refrigerant is not consumed during normal operation. A sealed system should retain its charge. If refrigerant has escaped, topping it up leaves the fault unresolved.
Start with these checks. None requires opening the refrigerant circuit:
- Power supply: measure voltage at the compressor controller while the compressor attempts to start. Compare it with battery voltage at the same moment. A substantial difference points to resistance in a cable, fuse, switch or connection.
- Air-cooled condenser: remove dust from the fins, check that the fan runs when required and clear stored gear from the compressor compartment. Hot air needs an escape route.
- Water-cooled condenser: identify the cooling arrangement first. Pumped systems need an open seacock, a clean strainer and a working pump. Passive keel coolers have no pump to check.
- Fridge box: inspect the lid or door seal, defrost a heavily iced evaporator and check that the thermostat is calling for cooling.
Isolate the fridge's electrical supply before cleaning around the fan or handling wiring. On Danfoss/Secop BD35F and BD50F installations, a fitted diagnostic LED can help distinguish supply, fan and starting faults from cooling problems.
Identify refrigerant and charge weight
Photograph the refrigeration unit's data plate and record its model, serial number, refrigerant designation and charge in grams. Check the installation manual too. The compressor label alone may not specify the charge for the complete evaporator and pipework installation.
Many older marine systems use R134a. Some newer compact fridges use R600a, while other equipment uses R290 or another specified refrigerant. Very old installations may carry an R12 label or documented conversion details. Age and brand offer clues, but neither identifies the refrigerant reliably.
Never mix refrigerants or substitute automotive air-conditioning gas, propane or a supposedly universal replacement. R600a and R290 are flammable. Keep ignition sources away and have the circuit serviced by someone trained and equipped to work with hydrocarbon refrigerants.
Small marine systems often contain only tens of grams, so even a small addition can cause significant overcharging. A generic pressure reading cannot establish the correct charge. Operating pressure varies with the refrigerant, box temperature, condenser temperature and compressor speed.
