Why is my boat heater not working, and how can I troubleshoot it safely?
The diesel heater on my yacht starts its fan but only blows cold air, then switches itself off. It worked last winter; what should I check before taking it apart, and when should I stop trying?
Answer
A boat heater that will not start or only blows cold air commonly has low supply voltage, interrupted fuel delivery, a dirty burner or an overheating fault. First check the controller settings and voltage at the heater during startup, then use the symptoms and the model's fault-code instructions to trace the fault.
Start with basic checks
These checks mainly cover diesel air heaters such as Webasto Air Top and Eberspächer Airtronic units, including older installations. Water heaters also need coolant-circulation checks. Read the model and voltage from the identification plate before ordering parts or attempting a reset.
If you smell leaking fuel or exhaust, see damaged exhaust pipework or hear the carbon monoxide alarm, stop the heater, ventilate and leave the cabin until the cause is resolved.
- Select heating mode, rather than ventilation, and set the thermostat well above cabin temperature. Warm weather can prevent a serviceable heater from starting.
- Check the heater's dedicated switch, fuse and electrical connections. Some yacht installations feed it directly from the battery, so the main battery switch may not isolate it.
- Check that the diesel level is above the heater pickup; this may stop drawing fuel before the engine's pickup does.
- Record any displayed error or flashing-light sequence before resetting anything.
Switch off through the controller and let the programmed cooling cycle finish. Pulling the fuse or disconnecting the batteries during normal shutdown can leave the burner dirty and cause starting trouble later.
Measure voltage during startup
A running fan does not prove the electrical supply is sound. The glow plug adds a substantial load during ignition, and a battery with a reasonable resting voltage can still drop enough during startup to trigger shutdown.

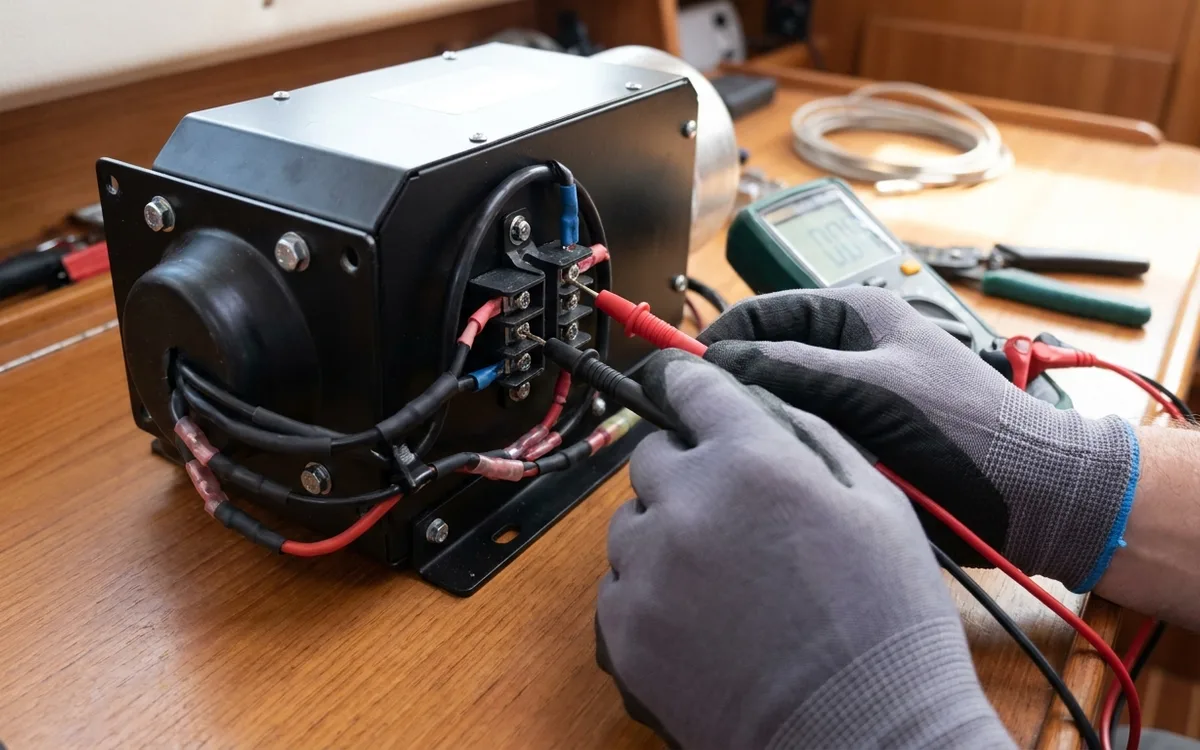

On a 12 V installation, measure across the heater's positive and negative supply terminals as it starts. Compare this with the voltage across the battery terminals under the same load. Use insulated probes and avoid bridging adjacent terminals.
- Both readings fall sharply: charge and assess the service battery before investigating combustion faults.
- Battery voltage holds but heater voltage falls: inspect the fuse holder, connectors, positive cable and negative return for corrosion, loose connections or heat damage.
- Voltage stays within the manual's operating range: move on to fuel delivery and ignition checks.
A difference of roughly 0.5 V or more deserves investigation on a 12 V system, but the shutdown threshold varies by model. Replace fuses only with the specified rating. If a fuse blows again, trace the fault rather than fitting a larger fuse.
Read the startup symptoms
A short period of cold airflow is normal while the heater purges and ignites. If cold air persists and the heater shuts down, note what happens between those stages.
