Where are the seacocks on an X-Yachts X-372, and how should I service them?
I'm checking the seacocks on my X-Yachts X-372 before the next lift-out, but I haven't found them all. Where should I look, and how do I tell which ones need servicing or replacing?
Answer
On an X-Yachts X-372, look beneath the galley sink, around the heads plumbing and at the engine's seawater supply, tracing each hose to its hull connection. These are starting points, not a confirmed factory layout: equipment and previous alterations affect valve positions, and servicing depends on whether you find ball valves, tapered-plug seacocks or replacements.
Find every hull connection
Identify each valve and check access before moving it. A stiff handle on an unsupported or corroded fitting can transmit considerable force to the through-hull. Empty the lockers and lift the relevant access panels to expose the whole assembly.

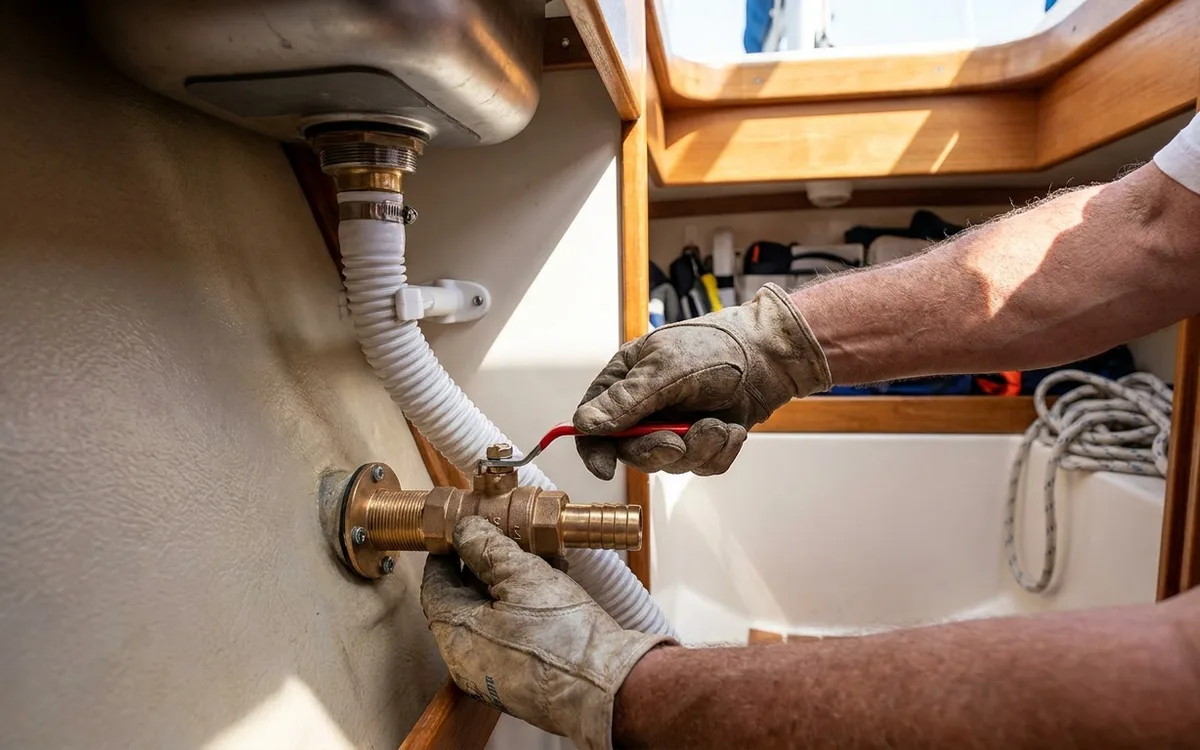

- Galley drain: start in the cupboard beneath the sink and follow the waste hose downwards. The valve may be behind or below the cupboard's accessible floor.
- Heads inlet and discharge: follow the smaller toilet flushing hose and larger waste hose through the heads lockers and adjacent accessible spaces. A holding-tank conversion may have changed the discharge route.
- Washbasin drain: trace this separately. Do not assume it shares the toilet outlet.
- Engine cooling inlet: trace the hose back from the raw-water pump through any strainer. Depending on the engine and drive fitted, the shut-off may be at a hull fitting or associated with the saildrive.
- Added equipment: check seawater washdown, refrigeration and other installations for additional inlets.
At lift-out, match every external opening to its internal connection. Include cockpit drains, but do not assume every outlet has a valve. Identify instrument transducers separately. Photograph and label everything, including each valve's normal operating position.
Inspect the whole assembly
A conventional seacock assembly comprises the through-hull fitting, valve and hose tail. Inspect all three and the surrounding hull. A sound valve cannot compensate for a weakened skin fitting.
Look for dampness, salt tracks, cracked sealant, loose backing pads, split hose tails and deteriorated hose. Pink, coppery patches on brass fittings suggest dezincification. Crumbling metal or damaged threads call for replacement. Green surface staining alone does not tell you whether a fitting is sound.
Gently operate accessible valves through their full travel. On most quarter-turn ball valves, the handle lies along the flow direction when open and across it when closed, but check the actual stops. A moving handle does not prove that the internal ball is moving.
Haul out before dismantling any below-waterline valve, hose connection or through-hull, and never force a seized valve afloat. Keep a correctly sized softwood bung beside each underwater connection.
