Where are the seacocks on an Albin Delta 31, and how should I inspect and service them?
I'm checking over my Albin Delta 31 and want to find every seacock before launching. Where should I look for the engine, toilet and sink valves, and how do I decide which need servicing or replacing?
Answer
On an Albin Delta 31, look beneath the galley sink, around the heads compartment and low beside the engine, tracing each hose to its hull fitting. These are search areas, not a confirmed factory layout: engines, toilets and plumbing may have changed, so check every opening from inside and outside at haul-out.
Finding each seacock
Check access first. You must be able to reach and close each valve quickly without emptying a locker. Use a torch and mirror, and lift the relevant sole boards and locker bases.

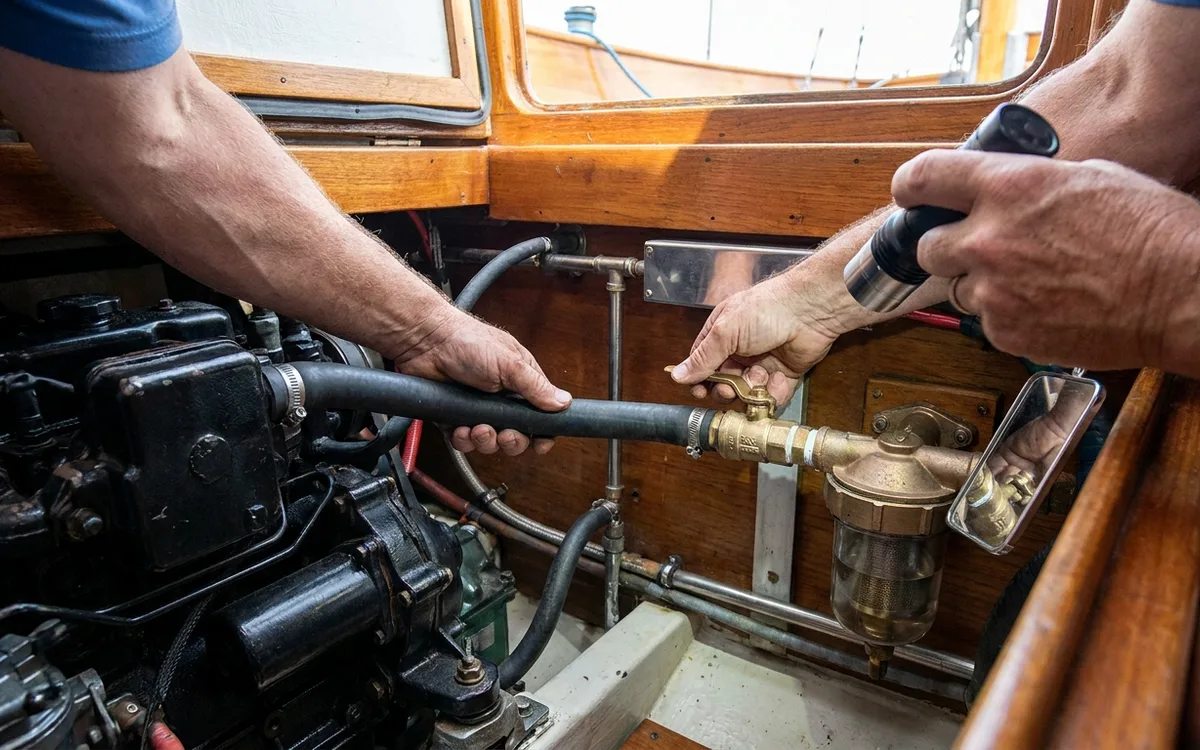

- Engine cooling intake: trace the suction hose back from the raw-water pump, through any strainer, to the valve low in the engine space or an adjoining locker. A replacement engine may have changed its position.
- Heads inlet and discharge: look beneath or behind the toilet and through nearby access panels. A conventional seawater toilet normally has a small inlet hose and a larger discharge hose. Follow both, including any holding-tank connections.
- Galley sink drain: follow the drain from the bottom of the sink into the cupboard below, then towards the hull. The valve may sit behind shelving.
- Washbasin and added equipment: trace any separate basin drain, seawater tap, refrigeration or other seawater circuit. Shared drains and later additions change the total number of valves.
Identify cockpit drains, transducer housings and above-waterline outlets too. They do not necessarily have seacocks, but every hull penetration needs inspecting.
Inspecting the whole assembly
A seacock assembly has three main parts: the through-hull fitting, the valve and the hose tail. A sound valve cannot compensate for a corroded through-hull or cracked tail.
Before operating suspect fittings afloat, have suitable tapered softwood bungs and a working bilge pump ready. Leave dismantling, hose removal and work on seized valves until the boat is ashore.
- Look for leakage. Dry the assembly, then check for fresh moisture, salt deposits and staining around the hull joint, threads and spindle.
- Check the metal. Pink or copper-coloured patches, crumbling surfaces or deep pitting can indicate serious deterioration in brass fittings. Green surface staining alone does not prove failure.
- Check support. Look for cracked laminate, loose backing pads and movement at the hull. Do not use the hose as a lever to test strength.
- Inspect hoses and clips. Replace hose that has cracked, hardened or swollen, and replace corroded clamps. Use two all-stainless marine clips where the hose tail has enough straight length to support both fully.
- Operate sound valves gently. A quarter-turn ball valve should reach both stops without excessive force. Its handle normally lies along the flow path when open and across it when closed.
