Where are the seacocks on a Najad 361, and how do I service them?
I want to check all the seacocks on my Najad 361 before launching. Where should I look, and how do I tell which ones need servicing or replacing?
Answer
On a Najad 361, look beneath the galley sink, inside the heads lockers and around the engine's raw-water intake, following each hose to its hull connection. Check each valve for smooth operation, leaks and corrosion, then service it to suit its design or replace seized valves and weakened fittings ashore.
Finding your seacocks
Make a valve list before dismantling anything. Equipment changes and previous owners' plumbing alterations mean there is no reliable universal count or exact location for every 361.

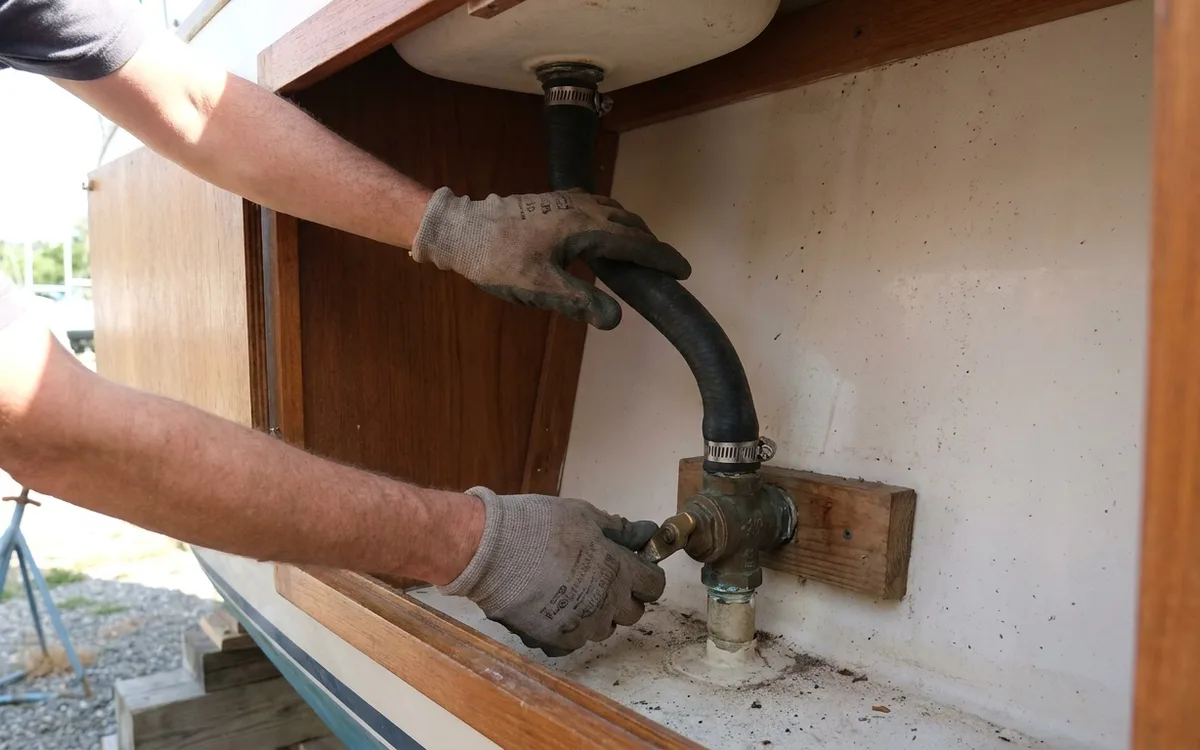

- Galley: open the cupboard beneath the sink and follow the drain hose down. The valve may sit below the cupboard opening, behind a removable panel or beneath an adjacent sole board.
- Heads: look beneath the washbasin and behind the toilet access panels. Find the basin outlet, seawater toilet inlet and toilet discharge or holding-tank outlet. A freshwater-flush conversion may have taken the toilet inlet out of use.
- Engine cooling: follow the hose back from the raw-water strainer to the intake valve. Check the engine compartment and adjoining access spaces. If the boat has a saildrive, establish whether the cooling intake runs through the drive or a separate hull fitting.
- Additional equipment: trace hoses serving deckwash pumps, refrigeration, watermakers or other retrofitted systems. These may share an intake or have their own.
Follow the cockpit drains too, but do not assume every drain has a seacock. Speed and depth transducer housings are separate hull penetrations and need their own inspection.
Check the whole assembly
A seacock assembly normally consists of the through-hull fitting, valve and hose tail. A sound valve cannot compensate for a corroded tail or loose through-hull.
Have the boat lifted out before disconnecting a hose, removing a valve component or applying force to a suspect fitting.
- Dry the assembly and check for weeping around the spindle, threaded joints and hull bedding.
- Inspect metal for cracks, deep pitting, crumbling surfaces or pink patches suggesting dezincification of brass. Green staining alone does not establish that a fitting has failed.
- Move the handle gently through its full travel, watching the valve body and hull fitting. Stop if either moves or the handle needs considerable force.
- Check hoses for cracking, hardening and chafe. Inspect clips, especially their undersides, and fit two marine-grade stainless clips where the tail is long enough to support both properly.
On a conventional quarter-turn ball valve, the handle normally lies parallel to the flow when open and across it when closed. Confirm how each valve operates, particularly if its handle has been replaced.
Servicing each valve type
Ball valves: many cannot usefully be dismantled in place. With the boat ashore, inspect the bore for deposits and damage. Carefully remove accessible fouling, then operate the valve repeatedly. Apply lubricant only where the manufacturer specifies it, using a product compatible with the seals and any composite components. Greasing the handle spindle will not repair damaged internal seats.
