Where are the seacocks on a Beneteau Oceanis 38 and how do I service them?

On a Beneteau Oceanis 38, you will find the main seacocks under the galley sink, beneath the heads washbasin, below the aft cabin berth for the engine intake, and near the holding tank. To service them, inspect the handles for rust, exercise the valves monthly, and lubricate the internal ball with waterproof silicone grease when the boat is hauled out.

Locating Oceanis 38 Seacocks

Beneteau groups the plumbing runs logically. The factory often hides them behind false panels or under sole boards. On a standard layout from the 2014 to 2019 era, check these specific spots:

• Engine raw water: Most Oceanis 38s run a Yanmar 3YM30 with a saildrive. The raw water intake valve integrates directly into the saildrive leg. Access this by lifting the aft cabin mattress and opening the engine inspection hatch.
• Heads intake and discharge: The 0.75-inch salt water flush intake and the 1.5-inch black water discharge sit under the sink vanity unit in the heads, or beneath the removable floorboard just outside the heads door.
• Holding tank gravity drop: This 1.5-inch valve lives at the base of the holding tank, inside the cabinetry behind the toilet.
• Galley sink discharge: A 1.5-inch valve sits directly under the galley sink. You often need to remove a lower drawer or reach past the bin to access it.
• Washbasin discharge: A 1.25-inch valve lives under the heads sink. Builders sometimes tee this into a common drain, but it usually gets a dedicated through-hull.

Identifying the Factory Valves

Beneteau factory seacocks from this period are typically nickel-plated DZR (dezincification resistant) brass ball valves. The brass body holds up well in seawater. The handles are mild steel covered with a rubber sleeve. These handles rust quickly in a damp bilge environment. If your 2015 model still has the original factory valves, the handles will likely be stiff or severely corroded.

Routine Servicing and Lubrication

Never remove a hose or disassemble a valve while the boat is in the water. Proper servicing belongs ashore during your annual lift out.

1. Remove the hoses: Slacken the hose clips and pull the hoses off the tails. A heat gun helps soften stiff sanitary hose.
2. Clean the internals: Open the valve fully. Look down the hose tail and up from the outside of the hull. Use a wooden dowel or a soft bottle brush to clear out barnacles, calcium build up, or marine slime.

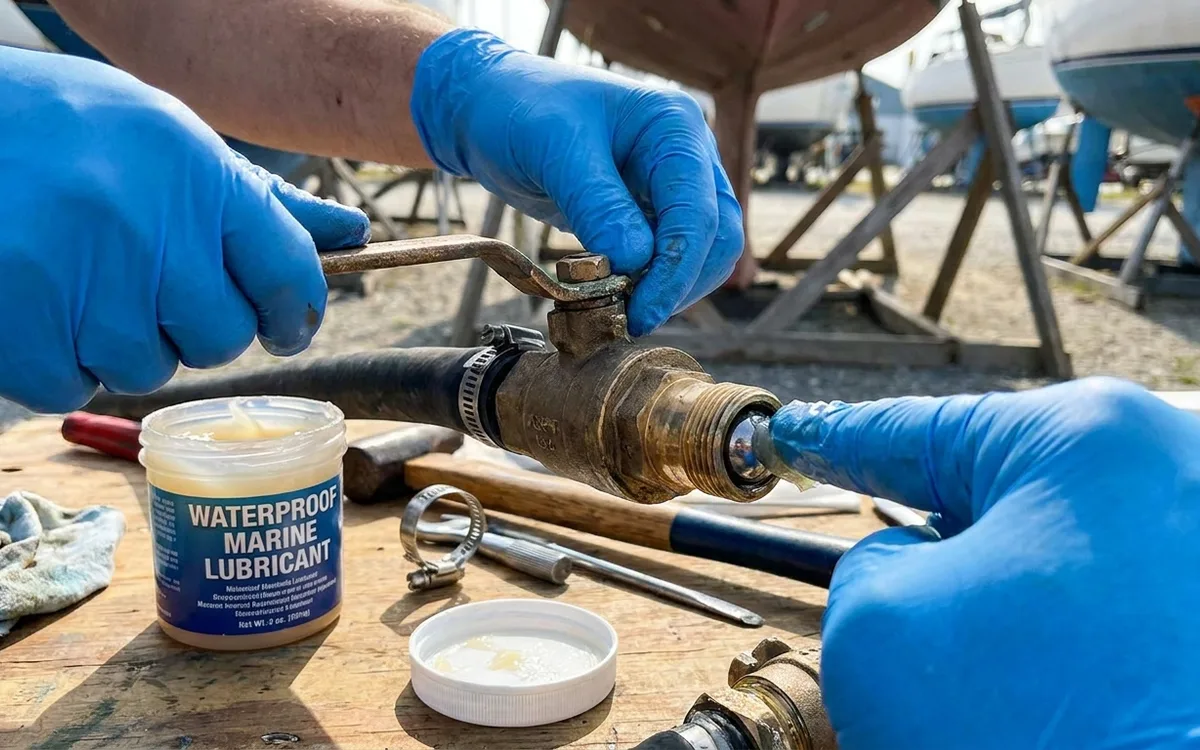

3. Lubricate the ball: Smear marine waterproof silicone grease (such as Molykote 111) onto the exposed ball. Do not use petroleum sprays like WD40. They degrade the internal PTFE seats.
4. Exercise the valve: Work the handle open and closed ten to fifteen times. This spreads the grease evenly across the ball and the PTFE seals. The action should become noticeably smoother.
5. Inspect and refit: Check the hose tails for pitting. Reattach the hoses and secure them with two 316 grade stainless steel hose clips per connection. Position the screw mechanisms 180 degrees apart. Tighten them firmly without crushing the hose.
