Where are the seacocks on a Bavaria 37 Cruiser, and how do I service them?
I'm checking the seacocks on my Bavaria 37 Cruiser before the next lift-out. Where should I look for all of them, including the engine intake, and which servicing jobs can I safely do afloat?
Answer
On a Bavaria 37 Cruiser, look beneath the galley sink, inside the heads lockers and around the saildrive in the engine compartment for the main seawater valves. Check your boat's year and trace every hose, as the number and position of seacocks vary between generations, toilet arrangements and added equipment.
Where to find seacocks
Find the engine cooling intake first, before a strainer, hose or pump leaks. Bavaria used the 37 designation across different generations, so these locations are starting points rather than an exact factory plan.
- Galley sink drain: open the cupboard beneath the sink and follow the waste hose downwards. The valve may sit low behind a shelf or removable panel.
- Toilet seawater inlet: look beneath the washbasin, behind the toilet or through the lowest heads access panel. Follow the smaller hose supplying the toilet pump. A freshwater-flush conversion may have removed this connection.
- Toilet or holding-tank discharge: trace the large sanitation hose towards the hull. The discharge valve may be beneath or behind the heads joinery, with separate access from the inlet.
- Washbasin drain: follow the waste hose. Depending on the installation, it may have its own outlet or share plumbing.

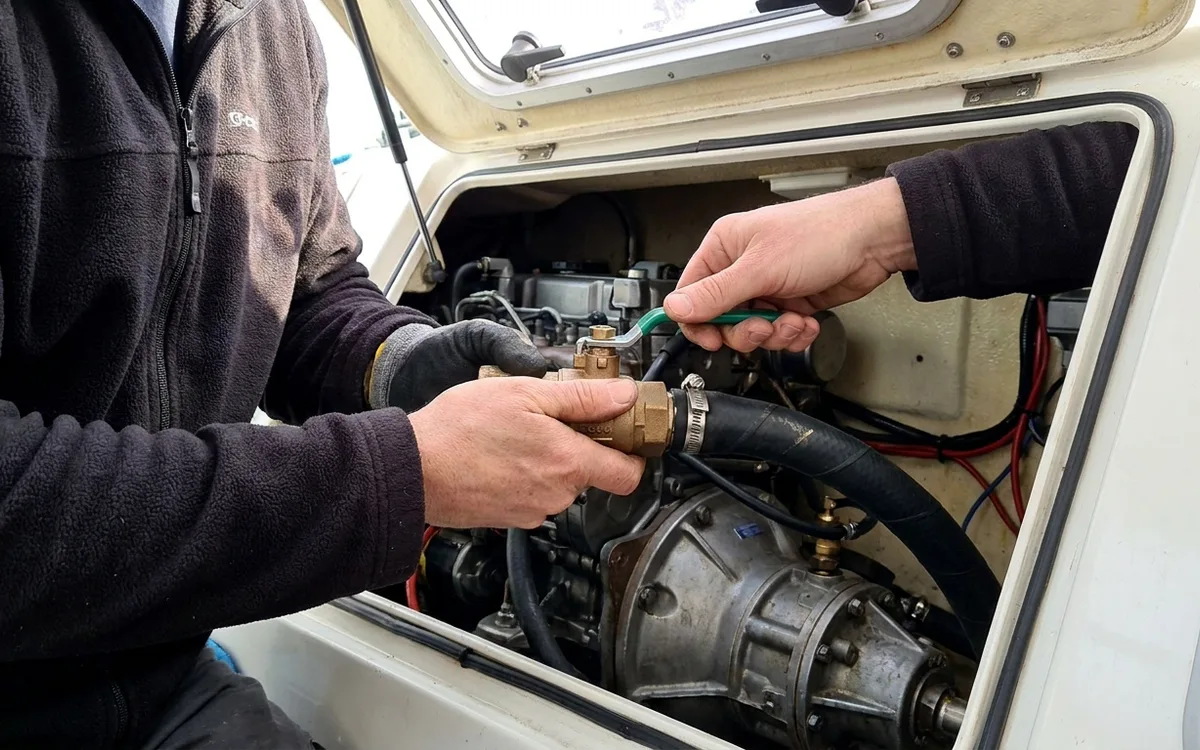

- Engine seawater inlet: on the usual Volvo Penta saildrive installation, look for the valve attached to the saildrive inside the engine compartment. Access is sometimes through an aft-cabin panel. A modified installation may use a separate hull intake.
Trace the hoses for any seawater-fed air conditioning, watermaker or deckwash too. Shower water commonly passes through a pump, so do not assume every drain has a below-waterline valve. Label each valve and photograph its location with the access panel removed.
Checks while afloat
Keep a correctly sized wooden bung beside each hull fitting. Leave stiff, corroded or suspect assemblies untouched until the boat is ashore. Stop the engine before closing its intake and reopen it before restarting.
- Dry the assembly and inspect the through-hull, valve and hose tail separately. Look for moisture, salt tracks, cracks, pink metal, crumbling surfaces and rust around the handle spindle.
- Check that hoses are sound and properly seated. Fit two marine-grade stainless hose clips where the tail is long enough for both. A second clip hanging beyond the barb adds no security.
- Support a sound valve body and move the handle gently through its full travel. On an ordinary quarter-turn ball valve, a handle parallel to the flow passage means open; across it means closed.
- Check again for seepage around the spindle and threaded joints. Handle movement alone does not prove that the internal ball closes properly.
