How do I troubleshoot a Doral 37 Elegante air-conditioning controller flashing AAA and then 0?
The air-conditioning controller on my Doral 37 Elegante flashes AAA and then shows 0. What should I check first, and is there a reset I can try before replacing the controller?
Answer
Identify the air-conditioning controller, then check its power supply and display cable: flashing AAA followed by 0 does not identify a specific fault. If your Doral 37 Elegante has a Marine Air Digital Elite control, check the power and cable connections, carry out the prescribed reset, then test the display and control board.
Identify the controller
The boat model alone cannot identify the controller, especially if equipment has been replaced. Photograph the keypad, record its button labels and find the manufacturer and model on the air-conditioning unit and, where accessible, the back of the display.
The Marine Air Digital Elite troubleshooting information lists 999 or three dashes as possible signs that the display cannot communicate with the unit. It does not identify AAA followed by 0 as a specific fault. That sequence alone is no reason to condemn a temperature sensor, compressor or seawater pump.
Record exactly what happens:
- Note whether AAA appears only when the circuit breaker is switched on or the sequence repeats continuously.
- Check whether 0 stays on screen and whether the Power, Mode or temperature buttons respond.
- Note whether the fan starts and whether the display restarts when the compressor tries to start.
- If there are separate cabin controls, record whether one or all are affected.
A brief sequence followed by normal operation differs from a repeating restart. Several affected controls suggest a shared supply problem; one affected control points towards its local cable, display or board.
Check power and cable connections
Check that the air-conditioning circuit breaker is on and the selected shore or generator supply is available. Note whether the fault began after changing power sources or switching on another substantial electrical load. The Elite troubleshooting guidance lists power interruptions, voltage or frequency fluctuations, and electrical interference as causes of erratic control behaviour.
Isolate shore power, stop the generator and disable any inverter feeding the circuit before unplugging connectors or opening electrical enclosures. Leave live mains measurements to a qualified marine electrician.

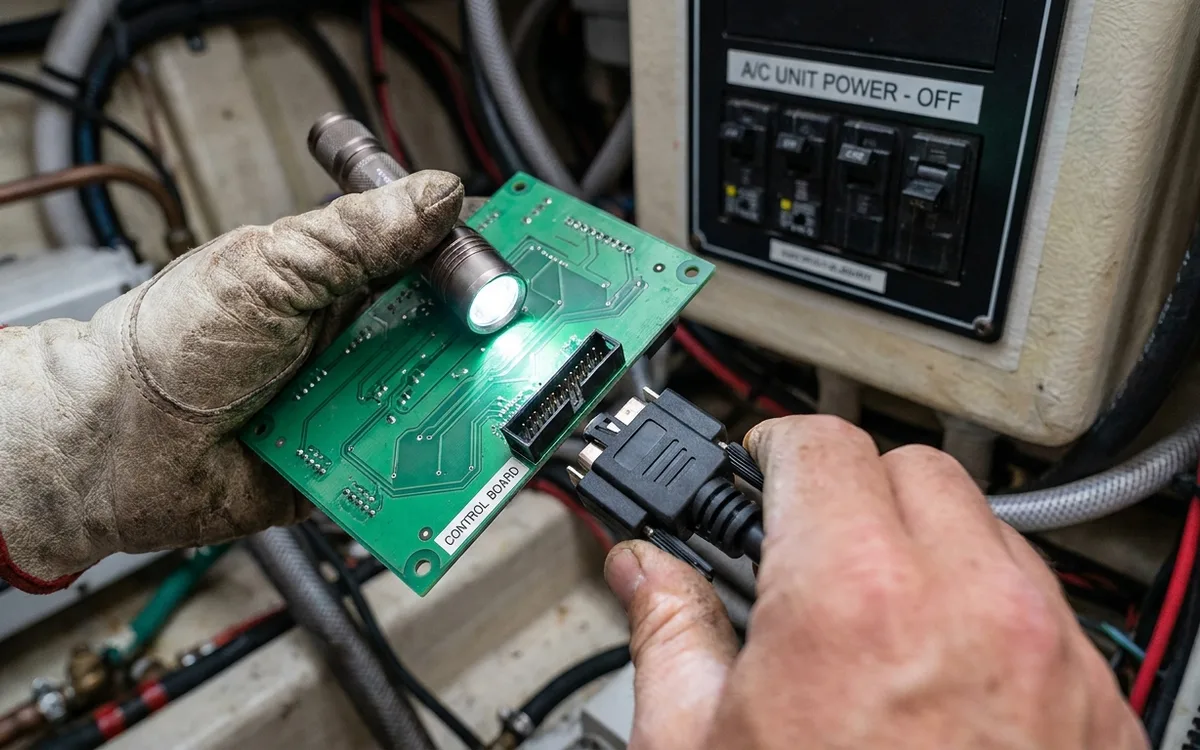

With the supply isolated, inspect the display cable connections at the keypad and, if safely accessible, the unit's control board:
- Check that each plug is fully seated and its retaining feature is intact.
- Look for corrosion, moisture, bent contacts, broken pins or a cable trapped behind trim.
- Clean suspect contacts with electrical contact cleaner suitable for plastics, allow it to evaporate, then reconnect firmly.
- Replace damaged connectors or cable rather than repeatedly reseating them.
