Is 12.61 Volts a Normal Resting Voltage for a 12V Marine Battery?

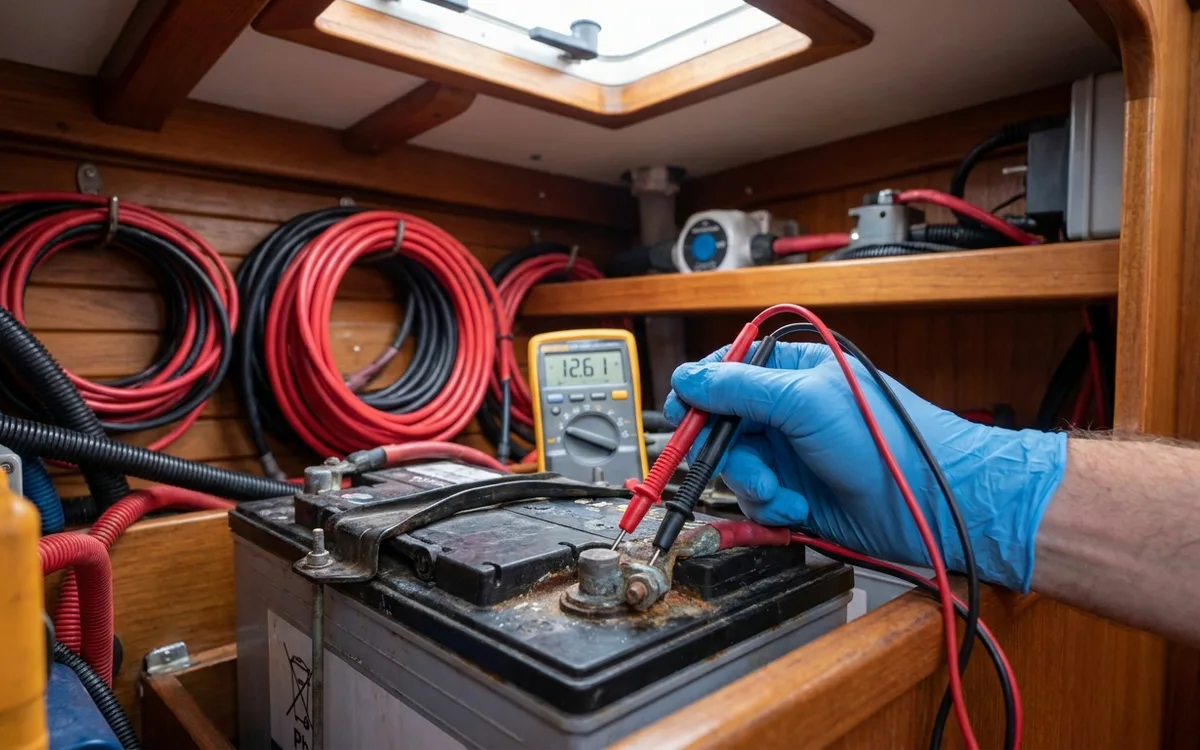

I was checking the domestic bank on my boat today after leaving it disconnected for a few days, and my multimeter reads 12.61V. Is this a normal resting voltage for a 12V marine battery, or does it mean it's starting to lose its charge capacity?
Answer
A reading of 12.61 volts is a normal resting voltage for a traditional flooded lead acid marine battery, indicating it holds around 85% to 90% of its total capacity. However, if your boat uses AGM, GEL or LiFePO4 (lithium) battery banks, this exact reading means the batteries need charging.
Voltage by Battery Chemistry
Battery voltage depends on the cell chemistry inside the casing. A reading of 12.61V means different things for common marine batteries:
- Flooded Lead Acid (Standard wet cells): Brands like Numax or Varta sit at 12.7V when fully charged. A reading of 12.61V means the battery is nearly full.
- AGM and GEL: Premium sealed batteries from Victron Energy, Mastervolt or Lifeline have a higher resting voltage. They sit around 12.8V to 12.9V when fully charged. If an AGM bank reads 12.61V, it has discharged to approximately 75% capacity.
- LiFePO4 (Lithium): Lithium iron phosphate batteries have a flat discharge curve. They rest between 13.3V and 13.6V for most of their cycle. If a 12V lithium bank drops to 12.61V, it holds under 10% capacity. The Battery Management System will soon shut it down to protect the cells.
Measuring True Resting Voltage
Many owners misread battery health by measuring voltage at the wrong time. If the engine has just been running or the shore power charger has been on, the multimeter will show a surface charge of 13.2V or higher. This number is misleading.
Follow this procedure for an accurate reading:
- Disconnect all charging sources, including the shore power charger, alternator and solar MPPT controllers.
- Turn on a moderate 12V load, such as the cabin lights or a fresh water pump, for three minutes. This strips away the artificial surface charge.
- Turn off all loads at the main battery switch.
- Wait for the battery chemistry to settle. Four hours is the practical minimum. Leaving the bank overnight gives the most accurate result.
- Measure the voltage directly at the lead battery posts using a reliable digital multimeter like a Fluke 115. Do not rely on the analogue dial or digital panel meter at the nav station. Voltage drop through the boat wiring will give an artificially low reading.
