How do boat electrics actually work?
I'm new to boating and looking at a 10-year-old cruiser. The electrics panel looks like an aircraft cockpit with DC switches, AC breakers, and battery monitors. How do boat electrics actually work, and what do I need to understand before I buy?
Answer
Boat electrical systems are split into two separate halves: a low-voltage 12V or 24V Direct Current (DC) network powered by your batteries, and a 230V Alternating Current (AC) system powered by shore power or a generator. The DC system runs essential gear like the engine starter, navigation lights and water pumps, while the AC system powers domestic appliances like water heaters and battery chargers when plugged in at a marina.

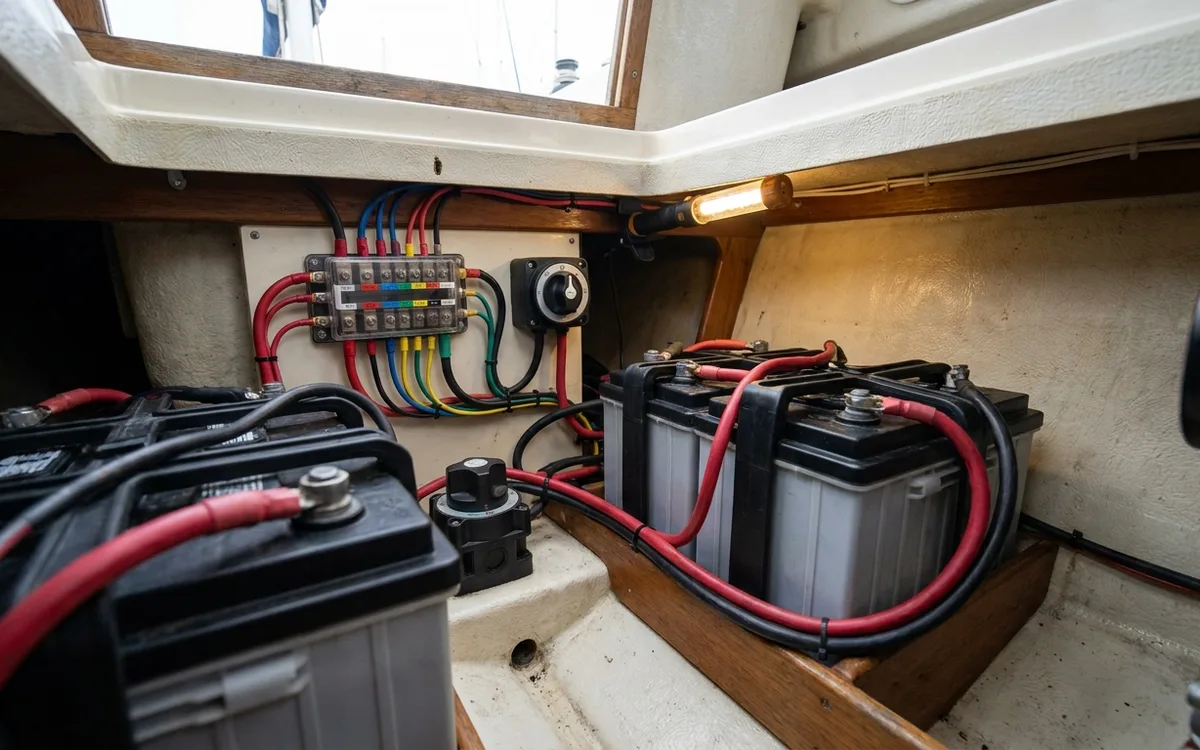

Battery Bank Setup
Most boats use a 12V DC system divided into two separate battery banks to ensure the engine always starts.
- The Engine Bank: This single 80Ah to 100Ah battery delivers a massive, short burst of power (Cold Cranking Amps, or CCA) to turn the starter motor. A standard sealed lead-acid starter battery costs around £90.
- The Domestic Bank: This powers everything else on board, from the fridge to the cabin lights. These deep-cycle batteries are designed to discharge slowly and recharge frequently. A typical 30-foot cruiser carries two 110Ah deep-cycle lead-acid or AGM batteries wired in parallel, costing £120 to £200 each.
Always disconnect the negative terminal first when working on batteries. This prevents your spanner from shorting out against the engine block.
Charging and Distribution
Starting the engine spins a belt-driven alternator (producing 60A to 120A) to generate electricity. The boat needs a way to charge both battery banks without linking them permanently.
A split charge system handles this task. Most boats use a Voltage Sensitive Relay (VSR) or a diode isolator like a Victron ArgoFET. The alternator charges the engine battery first. Once that reaches 13.7V, the VSR clicks open and allows charge to flow into the domestic bank. Turning the engine off disconnects the VSR, meaning the fridge can run all night on the domestic bank without draining the starter battery.
Power leaves the batteries through heavy-duty isolation switches rated for a 300A continuous load. It then passes through a master fuse, typically a 200A or 250A MEGA fuse, before reaching the main DC switch panel in the cabin.
230V AC Shore Power
Tying up at a marina involves plugging a heavy cable into the pontoon pedestal. This brings 230V AC shore power aboard via a 16A or 32A blue commando plug.
This high-voltage system goes straight to a marine consumer unit containing an RCD (Residual Current Device) and several MCBs (Miniature Circuit Breakers). The shore power typically runs three things:
