How to Test Marine Solar Panels and Output?
I need to know how to test the solar panels installed on my boat, Freedom. I suspect they aren't putting out enough power to keep my batteries topped up, but I'm not sure if the issue is the panels themselves or the controller.
Answer
To test marine solar panels, you need a digital multimeter to measure the open-circuit voltage (Voc) and short-circuit current (Isc) directly at the panel cables. Compare these readings to the manufacturer's sticker on the back of the panel to determine if it is producing its rated raw output.
Isolating the Panel
You cannot accurately test a solar panel while it is connected to a charge controller. The controller and battery state dictate the current flow. Choose a clear, sunny day around noon when the sun is highest. Before disconnecting anything, cover the solar panel with a heavy towel or blanket. This stops power generation and prevents electrical arcing at the connectors.
Locate the MC4 connectors where the panel tails join the boat wiring harness. These are the waterproof push-fit connectors used on almost all modern arrays. Disconnect the positive and negative cables by squeezing the locking tabs. If your boat uses a combiner box or deck gland rather than MC4s, undo the screw terminals for the specific panel. Inspect the metal pins inside the connectors. If they are green with corrosion, spray them with a marine contact cleaner. High resistance here will cripple your output.
Measuring Open-Circuit Voltage
This test confirms the internal wiring and solar cells are intact. Look at the specification sticker on the back of the panel for the Voc rating.
- Set your digital multimeter to the DC Voltage setting, selecting the 20V or 200V range.
- Remove the towel from the panel so it sits in full sun.

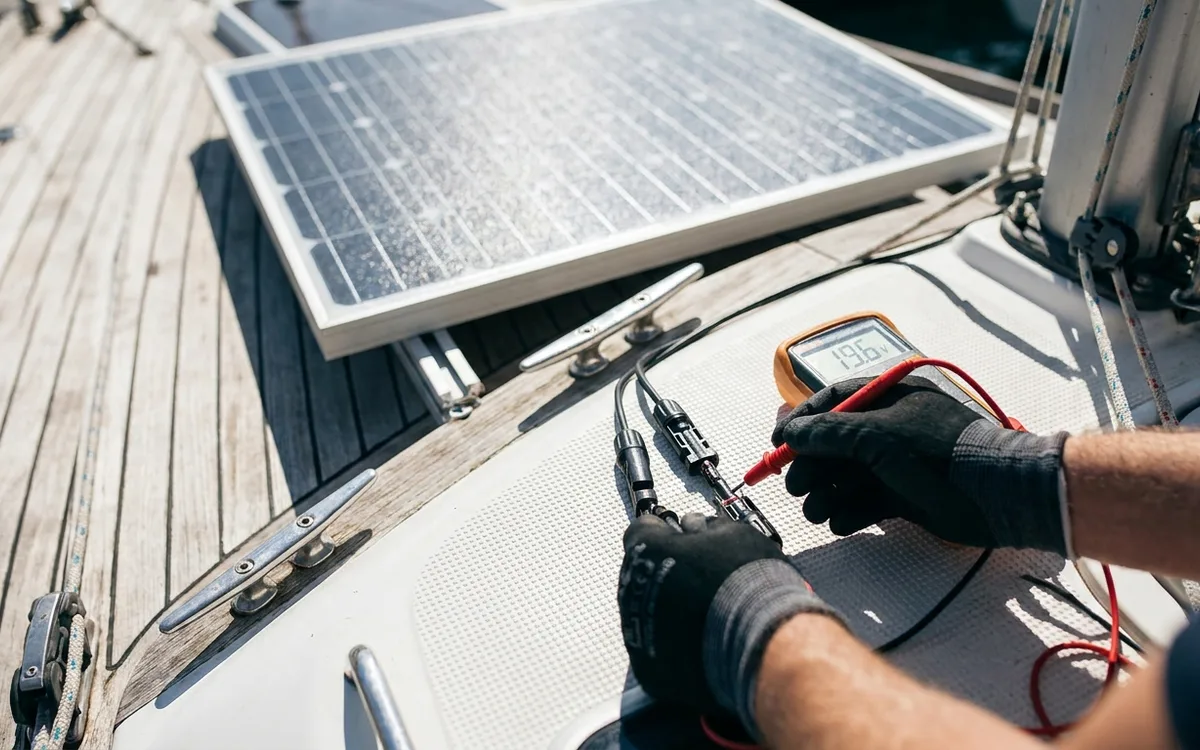

- Touch the red multimeter probe to the positive MC4 connector and the black probe to the negative.
A standard 12V marine panel (like a 100W Renogy or a SunPower flexible panel) shows an open-circuit voltage between 18V and 22V in direct sunlight. Larger 24V residential panels mounted on an arch will show 36V to 44V. If the reading is zero or single digits, you have a broken internal connection, a snapped cable or a blown bypass diode inside the junction box glued to the panel.
Measuring Short-Circuit Current
Voltage alone does not guarantee power. You must test the current capability under load. Check the panel sticker for the Isc rating. For a typical 100W panel, this is usually 5.5A to 6.0A.
- Move the red probe on your multimeter to the dedicated 10A or 20A unfused socket.
- Turn the multimeter dial to the DC Amps (10A) setting.
- Touch the probes directly to the positive and negative panel connectors, shorting the panel through the meter.
