Where are the seacocks on a Hallberg-Rassy 46, and how should I inspect and service them?
I'm working through the plumbing on my Hallberg-Rassy 46 and want to locate every seacock before the next haul-out. Where should I look, and how do I decide which valves need servicing or replacing?
Answer
On a Hallberg-Rassy 46, look for seacocks beneath the galley sink, in the forward and aft heads lockers and around the engine's raw-water plumbing, tracing each hose to its hull connection. The number and positions depend on the boat's original specification and later additions, so inspect and label every fitting rather than relying on another HR model's diagram.
Where to look first

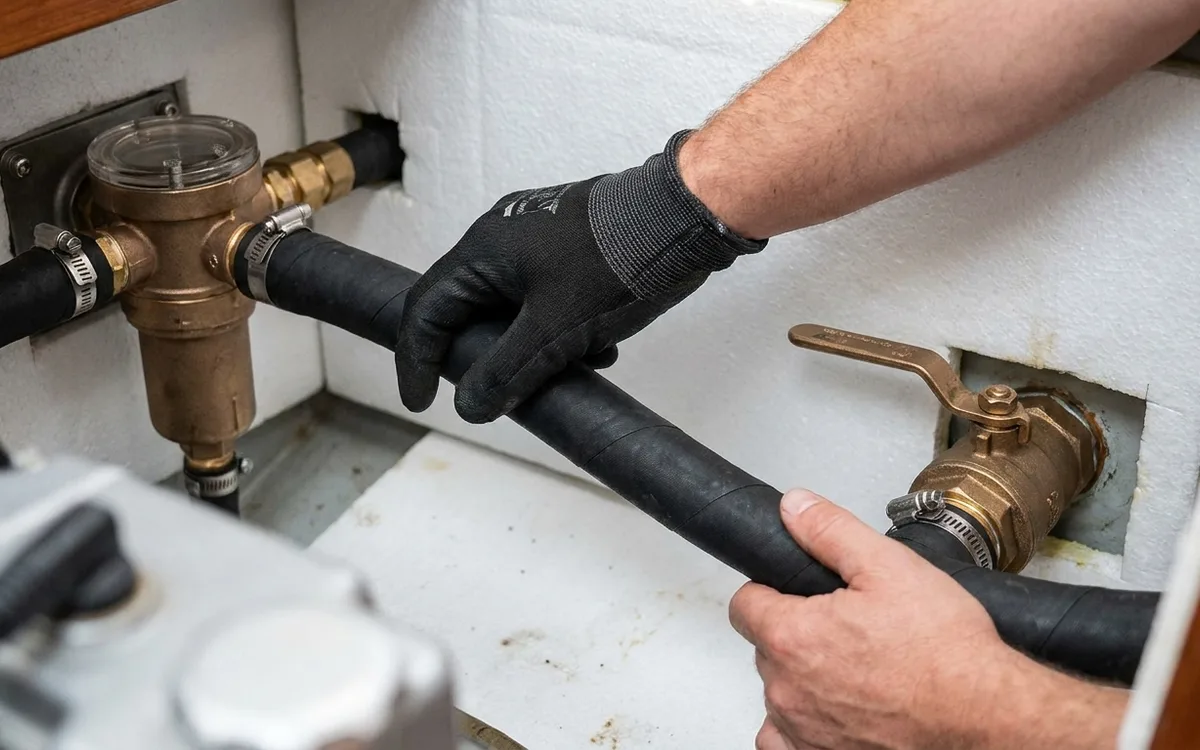

Find the engine cooling-water intake first. You need to reach and close it quickly if a hose or strainer fails. Trace the hose back from the raw-water strainer to the valve; the strainer may be some distance from the hull connection.
- Galley: look beneath the sink and behind removable locker panels for the sink discharge. Follow any branches serving refrigeration cooling or another appliance.
- Forward and aft heads: look beneath washbasins, inside lower lockers and behind access panels. Trace toilet seawater supplies, toilet or holding-tank discharges, and basin drains separately.
- Engine and machinery spaces: trace the main engine intake and any generator cooling intake. Establish whether equipment shares an intake or has its own.
- Optional equipment: follow hoses from a watermaker, seawater deckwash, air-conditioning system or water-cooled fridge, where fitted.
Lift accessible sole boards and check concealed spaces along these routes. Some outlets discharge above the waterline and may have no seacock. Speed and depth transducers also penetrate the hull, but are not ordinary plumbing valves. A diagram for an HR 36, 310 or 340 is not an HR 46 location plan.
Inspect the complete assembly
A seacock installation has three main components: the through-hull fitting, the valve and the hose tail. A sound valve cannot compensate for a weakened skin fitting or cracked tail.
Arrange a haul-out before disturbing suspect fittings afloat. Remove valves, loosen through-hulls and carry out forceful corrosion checks only ashore.
- Look for leaks: dry the assembly, then check for fresh moisture, salt deposits, staining and weeping around threads or the hull joint.
- Check the metal: pink or copper-coloured areas, crumbling surfaces, cracks and substantial pitting justify replacement. Green deposits alone do not prove that bronze has failed.
- Inspect the installation: look for a loose backing arrangement, unsupported heavy plumbing and hoses pulling sideways on the valve. Do not test its strength by wrenching the assembly.
- Examine hoses and clips: replace hose that has split, hardened, swollen or chafed. Check beneath clips for corrosion and make sure each clip bears fully on the hose tail.
Use two marine-grade stainless hose clips on below-waterline connections where the tail accommodates both properly. Tighten to the clip manufacturer's specification. Overtightening can cut the hose or damage a plastic tail.
