How do I troubleshoot an Onan generator that won't start when the batteries seem weak?

First measure voltage directly across the generator's starting-battery posts while pressing Start, then check how much voltage reaches the starter. A low-battery indication can mean a discharged battery, resistance in the cables or a faulty starter, even when the main engine starts normally.

Check whether it cranks

Read the Onan model, specification letter and DC starting voltage from its identification plate. Battery requirements, controls and fault-code procedures vary between models and years. Many marine installations use 12V starting, but check before connecting a charger or another battery.

Identify which battery starts the generator. It may have a dedicated battery, share the engine battery or connect through a selector switch.

• No response: check battery isolation, the emergency stop if fitted, the DC control fuse and power to the controller.
• Rapid clicking or a resetting display: suspect collapsing voltage or a poor connection.
• One solid click: the solenoid may operate while the starter receives insufficient current. A defective starter or mechanical obstruction is also possible.
• Normal cranking without firing: once voltage is confirmed, check fuel, preheat and shutdown diagnostics.

Record any displayed fault before disconnecting power. The generator's AC output breaker is separate from its DC starting supply.

Test under starting load

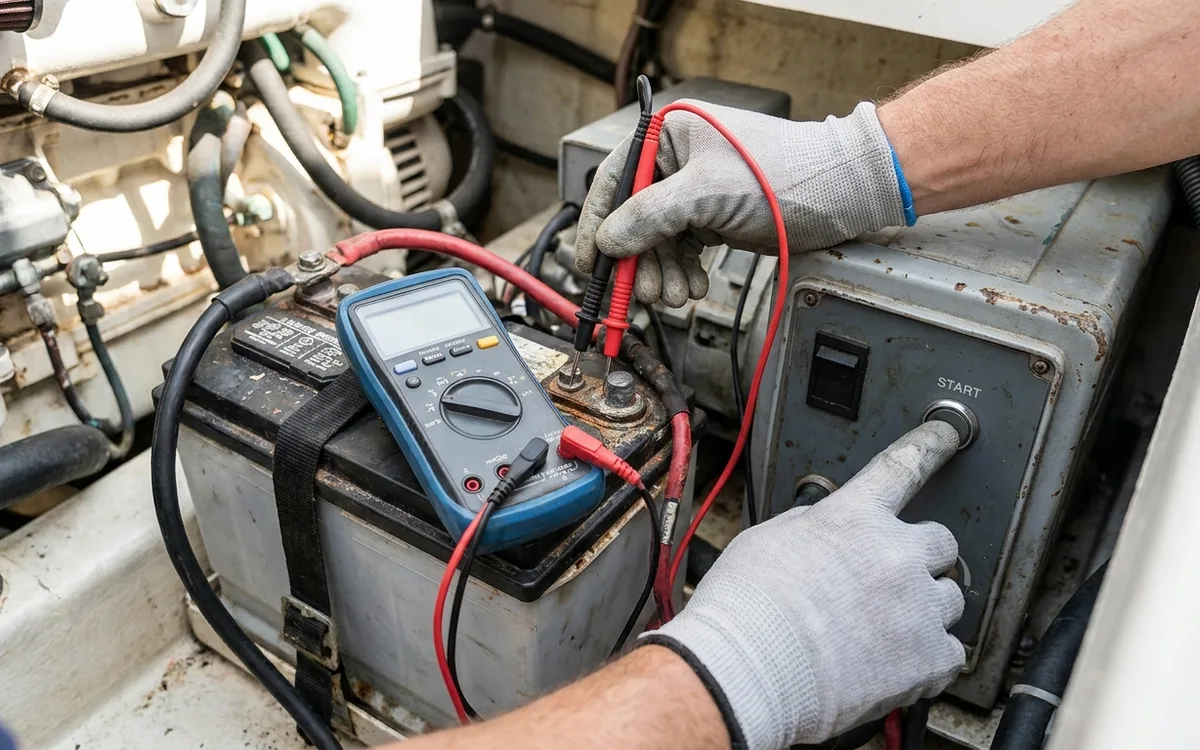

Switch off unnecessary DC loads. Set a multimeter to DC volts and touch the probes to the battery posts themselves, rather than the cable clamps. A resting reading alone cannot prove that a battery can deliver starting current.

1. Measure at rest. A rested, charged 12V lead-acid battery normally reads about 12.6 to 12.8V; around 12.2V indicates substantial discharge. Recent charging can temporarily raise the reading.
2. Measure during Start. Use the meter's minimum-recording function if available. A fall below roughly 10V during sustained cranking is a useful warning sign, though temperature and the model's specified limit matter.
3. Charge and repeat. Use a charger suitable for the battery chemistry. If voltage still collapses, have the battery load-tested before replacing it. Excessive starter current can also pull voltage down.

These figures apply to 12V lead-acid systems. For lithium batteries, check against the battery-management-system limits. On a 24V bank, test each 12V battery individually as well as the complete bank.

Check cable voltage drop

If battery-post voltage holds up but the generator struggles, inspect both the positive feed and negative return. Check the battery clamps, isolator terminals, starter-solenoid connection and engine earth connection for looseness, corrosion, damaged strands or heat discolouration.
