How do you install a deck pad eye on a boat?
I need to add a couple of pad eyes on my side decks to clip on my safety tether, and maybe one on the foredeck for a staysail tack. How do I install them so they don't rip out under load or leak water into the balsa core?
Answer

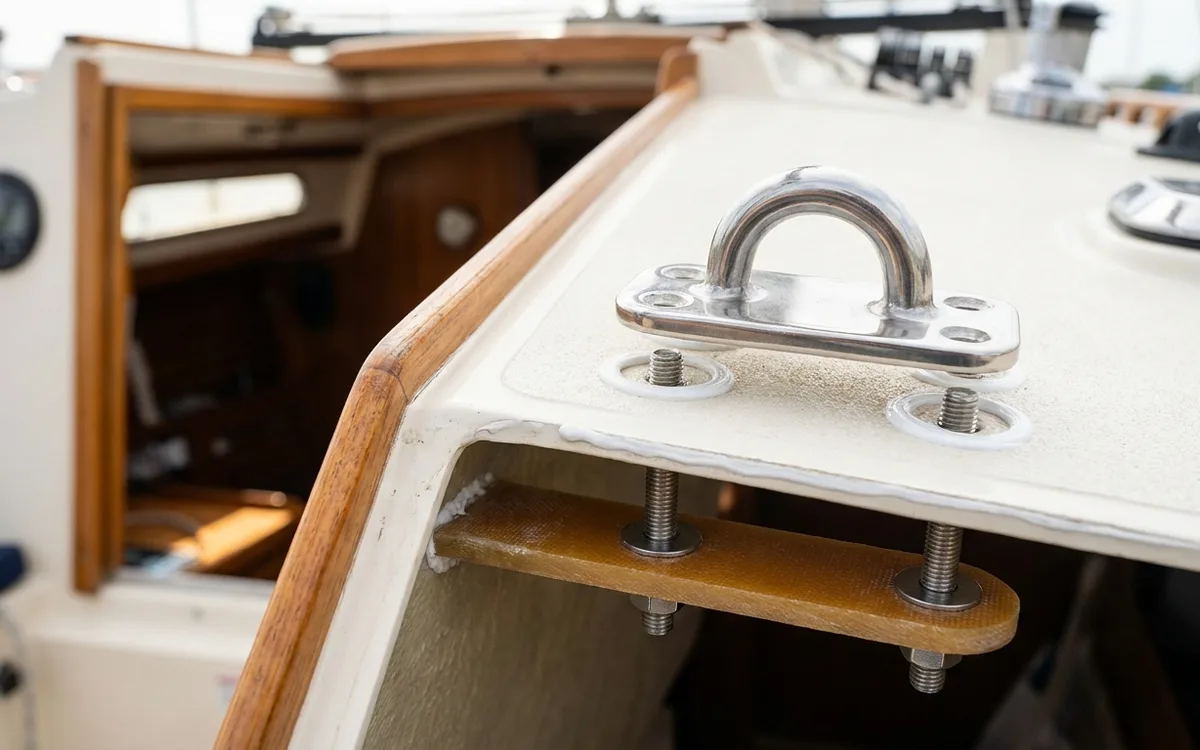

To install a deck pad eye, bolt it straight through the deck using a substantial backing plate to distribute the load. You must also seal the drilled holes with marine sealant or epoxy to prevent water from rotting the deck core.
Hardware and backing plates
When fitting a pad eye for a safety tether, jackline or highly loaded block, buy forged 316L stainless steel hardware. Brands like Wichard or Schaefer set the standard. Expect to pay £30 to £60 for a folding pad eye. Avoid cast stainless steel. It can shatter without warning under shock loads.
A pad eye relies entirely on the structure beneath it. Standard penny washers will allow a heavy load to pull the bolts straight through the fibreglass. You must fit a backing plate. A 6mm G10 fibreglass board is ideal because it never corrodes. Alternatively, a 3mm to 5mm 316 stainless steel or aluminium plate works well. Size the plate so its footprint covers at least three times the surface area of the pad eye base.
Protecting the deck core
Check the headlining below for wiring, pipes or structural bulkheads before drilling.
Tape the deck with masking tape to prevent gelcoat chipping. Position the pad eye and mark the holes. On a solid fibreglass deck, drill the holes to match your bolt diameter. On a balsa or foam-cored deck, you must isolate the core. This prevents water ingress and stops the deck from crushing when you tighten the bolts.
Follow this sequence for cored decks:
- Drill the holes 4mm to 6mm wider than your bolts.
- Insert a bent nail or a cut-down Allen key into a drill chuck. Spin it inside the hole to rake out 10mm of the core material between the top and bottom fibreglass skins.
- Tape the bottom holes from inside the cabin.
- Fill the void completely with thickened marine epoxy (such as West System 105 mixed with 404 High-Density filler).
- Once the epoxy cures, redrill the holes to your exact bolt size straight through the centre of the epoxy plug.
Finish by lightly countersinking the top edge of the holes. This creates a small bevel that holds a thicker ring of sealant. It acts like a custom O-ring when you clamp the hardware down.
