How are modern boat hulls manufactured?

Most modern boat hulls are constructed from Glass Reinforced Plastic (GRP) by laying fibreglass matting and liquid resin inside a highly polished female mould. Once the resin cures, it forms a single watertight shell that provides the primary structural strength of the vessel.

Mould and Gelcoat Preparation

The process begins with a plug. This is an exact 1:1 scale wooden or foam model of the hull. Builders use this plug to cast a female mould. Before applying any fibreglass, workers polish the inside of the mould with release wax so the finished hull pops out cleanly. The first layer applied to the mould is the gelcoat. This forms the coloured exterior of the boat. Gelcoat is a pigmented polyester or epoxy resin sprayed to a precise thickness of 0.5mm to 0.8mm.

Directly behind the gelcoat, builders apply a skin coat. This thin layer of fine fibreglass matting is wetted out with vinylester resin. Vinylester is far more water-resistant than standard orthophthalic polyester resin. It provides a barrier against osmotic blistering.

Hand Lay-up and Resin Infusion

Once the skin coat cures, shipwrights build up the main structural laminate. Volume production yards use two primary methods.

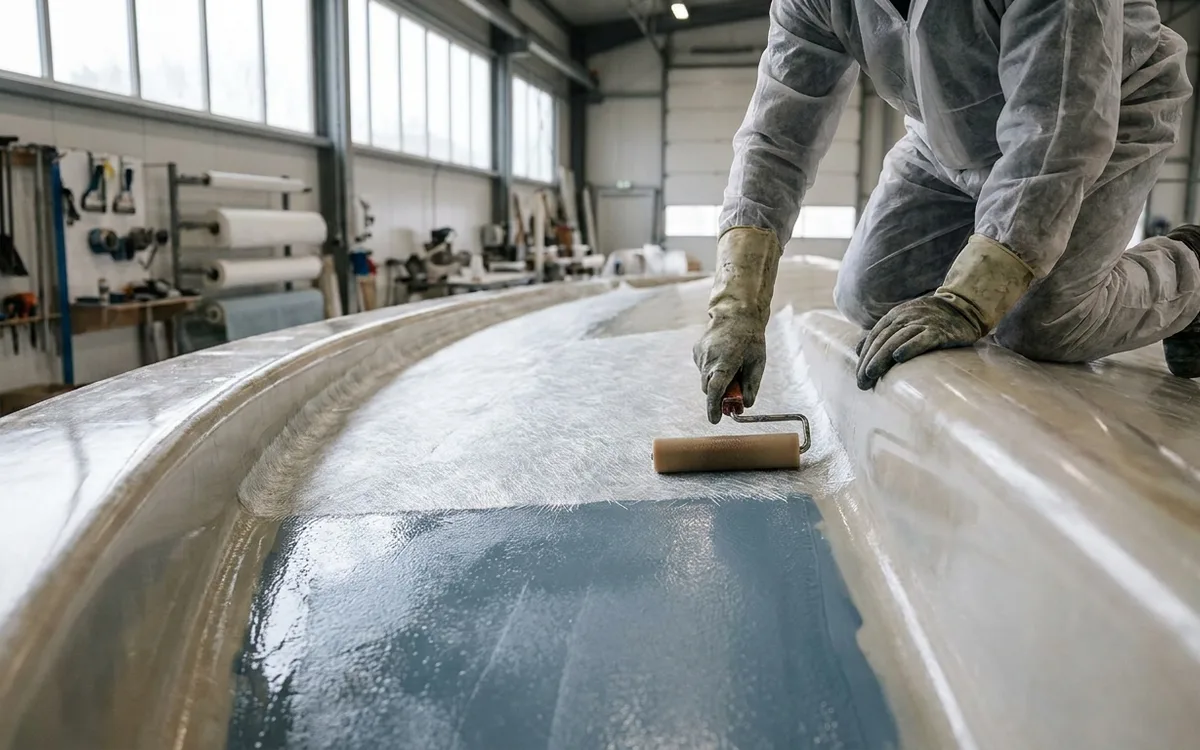

• Hand Lay-up: Shipwrights manually place layers of Chopped Strand Mat (CSM) and woven roving (often 450g/m² or 600g/m² weights) into the mould. They saturate the glass with liquid resin using brushes. Workers then consolidate the layers using ribbed metal rollers to squeeze out trapped air bubbles.
• Vacuum Resin Infusion: Brands like J/Boats and modern Beneteaus lay all the fibreglass cloth into the mould completely dry. A plastic sheet is sealed over the top. A vacuum pump removes the air. Liquid resin is then sucked through the laminate via a network of tubes. This achieves an exact resin to glass ratio, saving weight and creating a stronger hull.

Solid and Cored Construction

Solid laminate hulls consist entirely of fibreglass and resin. They are strong and puncture-resistant but heavy. Traditional builders like Hallberg-Rassy historically favoured solid GRP below the waterline for maximum impact resistance.

Cored hulls use a sandwich construction. A lightweight core material, such as end-grain balsa or closed-cell PVC foam (like Divinycell or Airex), sits between an inner and outer skin of fibreglass. This increases panel stiffness without adding much weight. Almost all performance yachts and many production cruisers use cored hulls today. When drilling through a cored hull to install a new seacock, fitters must first rout out the core and fill the gap with thickened epoxy to prevent water ingress and core rot.
