Can trim tabs or stabilisers fit on my boat's transom, and is there enough room?
I'm wondering whether I can fit trim tabs or stabilisers to my transom. There's already a boarding ladder at the stern, so how do I check whether there's enough room and whether they would help?
Answer
Trim tabs can fit if the transom has mounting space at its bottom edge, clearance for the blades and actuators, and sound structure behind the fixings. Their usefulness depends on your hull and the problem: conventional tabs control running trim on motorboats, while reducing roll usually calls for a different system.
Define the problem first
Check the boat's model, hull type and normal cruising speed before measuring for hardware. A planing motorboat running bow-high or leaning to one side is a likely candidate for trim tabs; a displacement sailing yacht rolling at anchor needs a different assessment.
Conventional tabs are hinged plates fitted in pairs, one on each side of the transom. Lowering them produces stern lift as water passes over them, lowering the bow or correcting an uneven running attitude. Their effect falls substantially at low speed. Ordinary tabs provide no useful roll control at anchor.
Some older sailing yachts have a small underwater foil described as a trim tab, including examples associated with the Hallberg-Rassy Mistral 33. This differs from paired transom plates and does not mean ordinary motorboat tabs will suit another Hallberg-Rassy.
Measure space and moving clearances
Measure with the boat ashore, using the proposed equipment's installation drawing. Keep clear of lifting operations and work beneath the hull only when the boat is properly supported.
A clear patch of transom is only the starting point. Check:
- Mounting width: measure each side separately between chines, hull steps, drives, brackets and other obstructions.
- Blade projection: allow for the plate extending aft and moving through its full operating range.
- Actuator space: check the height and angle required above the hinge, including clearance beneath a bathing platform.
- Moving equipment: turn an outboard or sterndrive fully both ways and check its tilt range; lower the boarding ladder completely.
- Inside access: locate fuel tanks, hoses, wiring and steering gear behind every proposed fixing and cable entry.
For scale, a nominal 12 × 9 inch tab has a plate approximately 305 mm wide, projecting 229 mm aft. The complete installation needs extra room for hinges, brackets and the actuator. The plate dimensions alone are neither a fitting template nor a sizing recommendation.

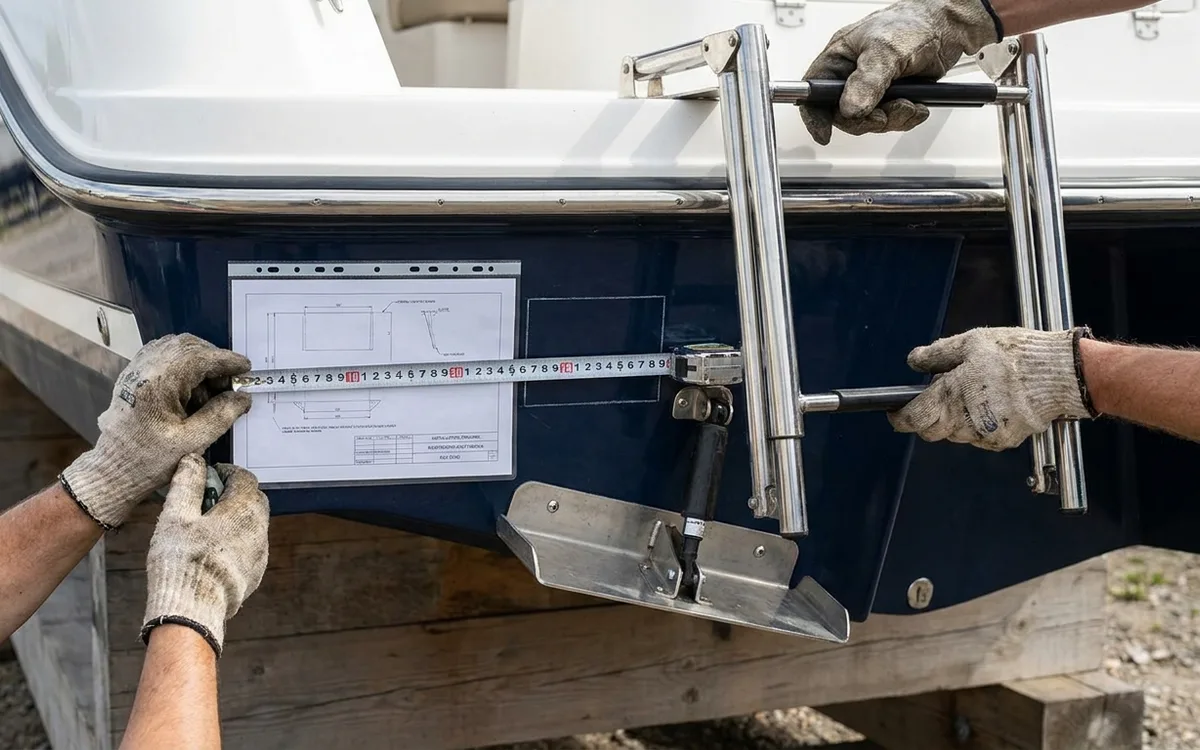

A ladder that clears the tabs when folded may strike them when lowered. Check, too, that someone boarding cannot step directly onto a sharp plate.
Check transom shape and strength
Tabs need suitable water flow beneath them, so follow the equipment maker's instructions for mounting height and position. Fitting them wherever the transom happens to be clear can leave them ineffective or disturb water reaching a propeller.
