Can trim tabs be mounted farther inboard, and would a hydrofoil affect how they work?
I want to fit trim tabs, but there isn't much clear space near the outside edges of my transom. Can I mount them closer to the outboard, and would fitting a hydrofoil help them work?
Answer
Yes, trim tabs can be mounted farther inboard if they have clean water flow and enough clearance from the engine, but moving them towards the centreline reduces their ability to correct a sideways lean. An outboard hydrofoil can add stern lift and help some boats plane earlier, but it cannot restore that lost roll control or automatically improve tab performance.
Measure the mounting space

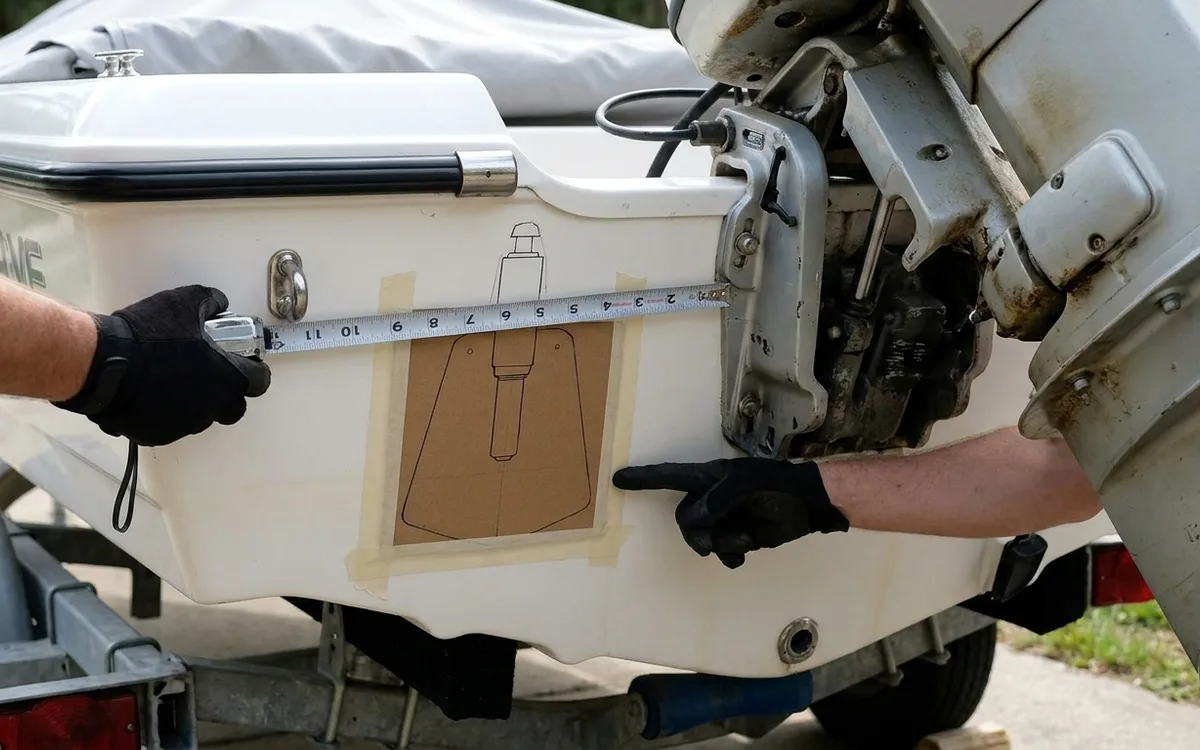

Measure the usable transom width on each side of the engine, including the space above for the actuators. Each plate needs a sound mounting surface at the bottom of the transom. Its actuator bracket needs enough height and suitable structure behind the screws or bolts.
Check these points before choosing a kit:
- Hull shape: identify the chines, lifting strakes, steps and any moulded recesses. A plate sitting in disturbed or aerated water may produce inconsistent lift.
- Obstructions: mark the boarding ladder, bathing platform supports, transducer, drain fittings and tie-down eyes.
- Engine movement: turn fully both ways and move through the complete trim and tilt range. Check clearance around the plate, actuator and any proposed hydrofoil throughout that movement.
- Inside access: locate fuel tanks, wiring and hoses. Establish whether the transom is solid laminate, timber-cored or foam-cored.
Isolate the engine starting circuit before working around the propeller. Check both sides of the transom before drilling.
Conventional tabs normally sit near the outer edges, with the manufacturer's specified setback from the chine. Their height above the hull bottom and fully retracted angle matter too. Follow the installation drawing for the exact kit rather than mounting the plates flush by eye.
Moving tabs inboard
Both tabs together lift the stern and bring the bow down. One tab working independently also creates a rolling moment, helping to correct uneven passenger loading or a wind-induced lean.
The farther that lifting force acts from the centreline, the greater its turning effect. Moving a tab's centre of lift from 800 mm to 600 mm off the centreline, for example, reduces its rolling moment by approximately 25%, assuming the same lifting force. The tab can still control fore-and-aft trim, but may need more deployment to correct a lean, adding drag.
Moving the tabs inboard also puts them closer to the propeller and its water supply. Follow the tab manufacturer's minimum engine clearance. No single safe distance covers every outboard, sterndrive and transom arrangement.
