Why won't my Suzuki DF250AP get on plane, and does a Sharrow prop have a hub?
I'm diagnosing a Suzuki DF250AP that idles smoothly but won't get the boat on plane. It has a Sharrow propeller: do these have a hub that can slip, and how do I separate a prop problem from an engine fault?
Answer
Yes, a Sharrow propeller has a central hub and a connection that transfers drive from the propeller shaft, but a serviceable hub insert depends on the model. To find why your Suzuki will not plane, first establish whether it gains revs without speed or struggles to build revs under load: the former points to lost propeller grip or drive, the latter to insufficient engine power or excessive load.
Compare revs with boat speed
A smooth idle tells you little about power under load. Fuel restriction, weak ignition and a cylinder fault may show up only when the engine is working. During a brief, controlled sea trial, record engine rpm, GPS speed, trim position and any warning lights or buzzer.
Keep everyone clear of the propeller during testing. Before handling it, remove the kill cord and isolate the starting system.
- Revs flare sharply but speed barely increases: suspect hub slip, ventilation or another loss of drive.
- The engine labours and revs stay low: investigate fuel delivery, ignition, excessive propeller load, hull fouling or excess boat weight.
- Revs stop at a repeatable ceiling with a warning: check for protective operation and retrieve fault information before further testing.
The DF250AP's usual full-throttle operating range is 5,500 to 6,100 rpm; confirm it against the manual for the engine's serial number. This is a reference for a correctly loaded boat once planing, not a target to chase while the boat is struggling.
Identify the Sharrow hub
The looped blades still need a hub. Having a hub does not mean the propeller takes a conventional replaceable rubber hub kit. Identify the Sharrow model, serial number and Suzuki fitment, then ask Sharrow or its supplying dealer to confirm the drive insert, repair procedure and required mounting hardware.

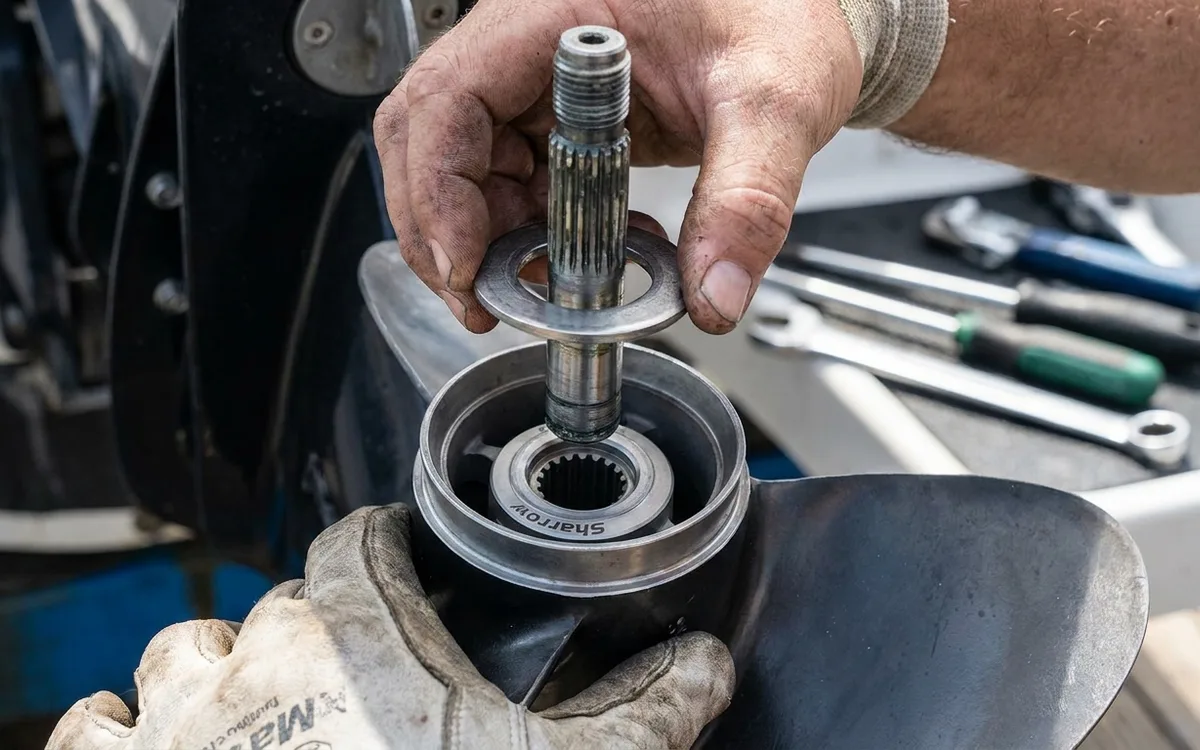

Remove the propeller and inspect the shaft splines, internal drive sleeve, thrust washer, spacers and retaining hardware. Look for displaced or damaged insert material where fitted, polished surfaces suggesting movement, and witness marks showing contact between the propeller and gearcase. Check for fishing line around the shaft seal area.
A tight nut does not prove the thrust washer or spacer arrangement is correct. The DF250AP uses Suzuki Selective Rotation, so check that the propeller's handedness matches the configured gearcase rotation, especially after work on the propeller or lower unit. Use the specified hardware and tightening procedure for that exact installation.
