Does the Suzuki DF250S have hydraulic trim-and-tilt hoses, and how can I identify their routing?
I have a Suzuki DF250S and want to know whether there are hydraulic hoses for the power trim and tilt. Where do the lines run, and which schematic shows the connections?
Answer
The Suzuki DF250S has hydraulic power trim and tilt in a self-contained assembly on the outboard, so its standard installation has no hydraulic hoses running from the helm to the trim cylinders. To identify the connections and oil routing, record the full model designation and serial number, then consult the matching power trim-and-tilt parts drawing and workshop hydraulic diagram.
Check the plate and brackets
Read the identification plate on the mounting bracket and record the complete model code and serial number. The cowling badge and the boat's registration year are not enough. Suzuki parts catalogues distinguish between model families and production changes, so do not assume drawings for the DF250, DF250S and DF250AP are interchangeable.
The trim-and-tilt assembly sits between the transom mounting brackets, beneath the engine's swivel bracket. Look for the electric pump motor, hydraulic body or reservoir, and lifting rams. Together, these form the local hydraulic system that changes the engine's angle.
Before reaching between the brackets, mechanically support the raised engine as specified in its manual and isolate the battery. Hydraulic pressure alone is not a safe support.
Identify hoses by their connections
Follow each line to its connection. In the usual factory installation, electrical wiring carries the trim command to the outboard, while the pump moves oil within the trim-and-tilt assembly. Much of the oil flows through drilled passages inside the hydraulic body, leaving no visible hose to trace.

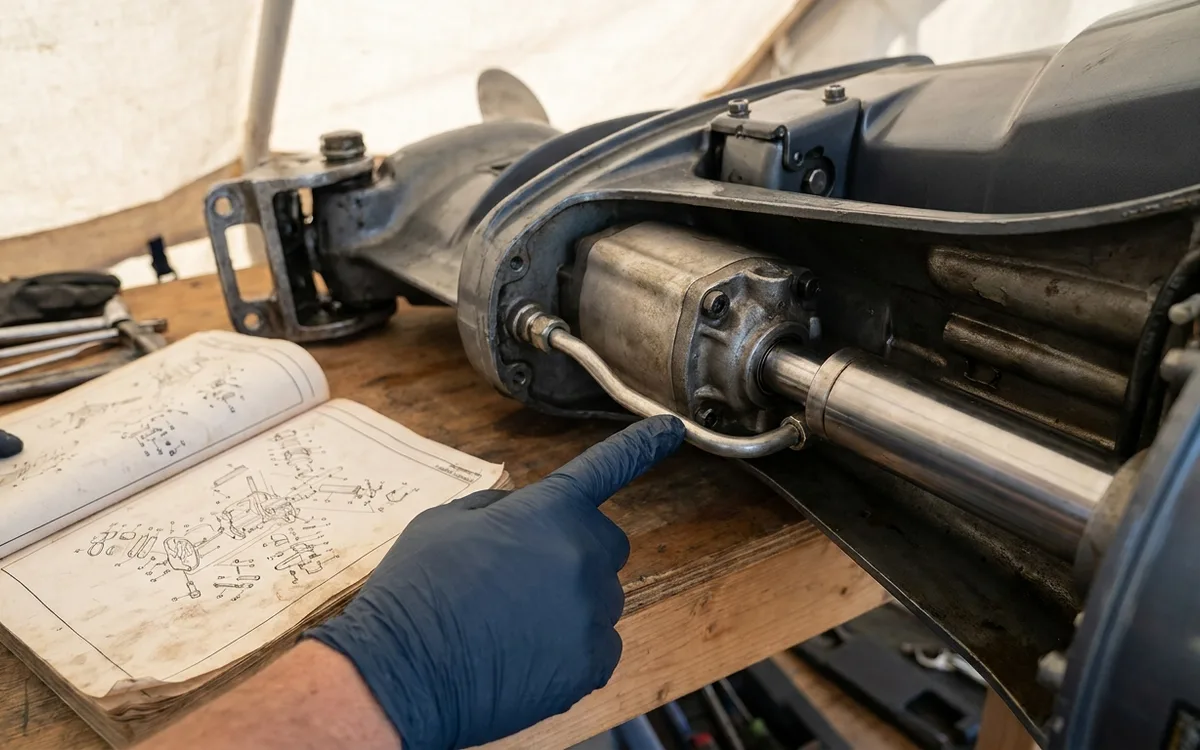

Some assemblies have short formed metal pipes as external connections rather than flexible rubber hoses. Check the drawing for your serial number before deciding that a pipe is missing or an unfamiliar connection needs a hose.
- Steering hoses: usually a pair connected to a steering cylinder across the front of the outboard. They turn the engine from side to side.
- Trim-and-tilt connections: stay around the hydraulic assembly between the mounting brackets and serve the lifting mechanism.
- Electrical cables: run to the trim motor and controls. A protective sleeve can make them look like a small hose.
- Fuel hose: enters the engine's fuel system and does not connect to the lifting rams.
A separately fitted hydraulic jack plate can add another pump and hose circuit. It raises the entire engine vertically and requires its own manufacturer's diagram.
