Why is my 2010 Sea Chaser 20-foot boat going into limp mode, and why has the jack plate stopped working?

Check the battery supply, main cable connections and shared negative connections first, as a voltage drop could explain both the engine trouble and the dead jack plate. The faults may be separate, particularly if the plate is stuck high enough to restrict the cooling-water supply and trigger engine protection.

Identify the engine and warning

The 2010 date identifies your Sea Chaser hull, but not the outboard or jack plate fitted, especially if either has been replaced. Find the engine model and serial number on its identification plate, along with the jack plate make and model. Common aftermarket makes include Bob's Machine, TH Marine and Atlas.

Before disconnecting anything, photograph the engine warning display and record:

• The exact alarm, fault code or warning lamp.
• The maximum rpm and whether the engine holds that limit or splutters.
• Whether the problem starts immediately, after warming up or when you operate the jack plate.
• Whether the plate clicks, runs without moving or stays silent.

A repeatable rpm ceiling accompanied by an alarm suggests protective speed reduction. Spluttering under load can also result from fuel starvation or ignition trouble, so reduced performance alone does not confirm limp mode. Match fault codes to the engine fitted. A code list for another manufacturer or control system can lead you astray.

Test the shared electrical supply

Switch off and isolate battery power before removing connections. Keep sparks away from batteries and fuel vapour. Inspect the battery posts, cable lugs, battery selector switch, engine negative connection and jack plate supply connections. Look for looseness, green corrosion, heat damage and broken strands beneath the insulation.

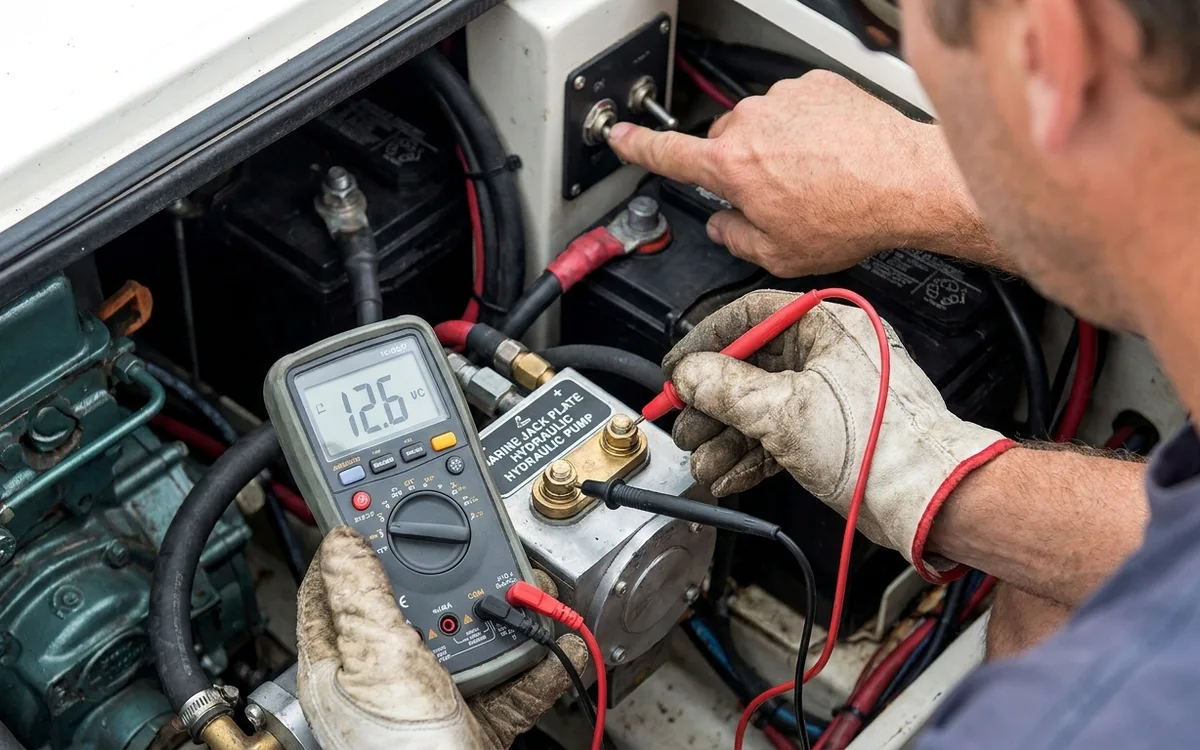

A connection can look clean yet fail when the hydraulic pump draws current. Take multimeter readings directly across the battery posts, then compare them with readings at the jack plate supply while someone briefly presses its switch.

1. Check resting voltage. A fully charged conventional 12 V lead-acid battery typically reads about 12.6 to 12.8 V after resting. Around 12.2 V indicates substantial discharge. Charge and load-test it before drawing conclusions.
2. Watch voltage during operation. If battery voltage collapses when you operate the plate switch, suspect a weak battery or excessive pump current. If battery voltage stays healthy but voltage at the plate falls sharply, suspect its cables, switch, breaker or connections.
3. Measure cable voltage drop. Under load, test from battery positive to the plate's positive supply, then from its negative return to battery negative. Several tenths of a volt across one connection warrants investigation. Use the plate manufacturer's limits for the complete circuit.
4. Check charging. Many outboards produce approximately 13.5 to 14.6 V at the battery when charging, but output varies with engine model, speed and battery system.
