How do I diagnose limp mode on a 2010 Sea Chaser using its fault codes?

Identify the engine make, model and serial number, then match the complete fault codes to that engine's diagnostic information: the Sea Chaser's 2010 hull year does not identify its engine management system. No codes have been supplied, so start by recording the diagnostic report, establishing which faults are active and checking battery supply, cooling and engine oil before replacing parts.

Identify the engine

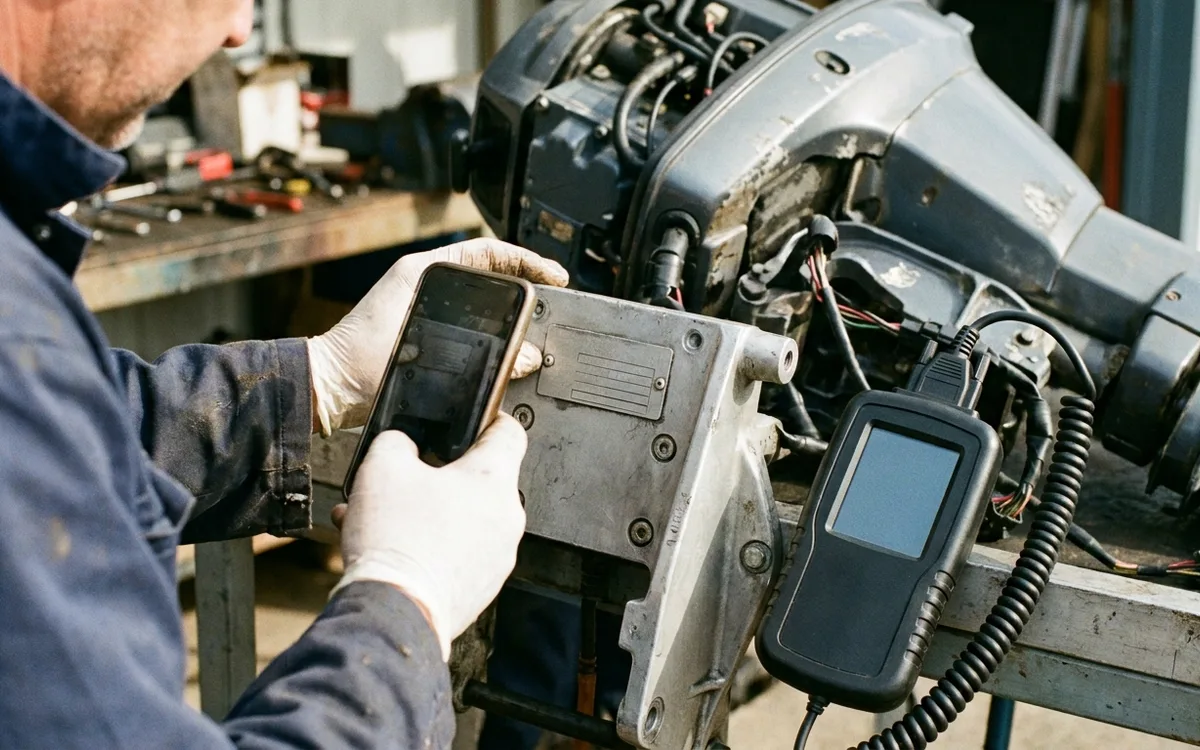

The boat may have its original outboard or a replacement. Twin engines need separate reports. Photograph the identification plate on the engine or mounting bracket; the cowling is unreliable because covers can be changed.

Before clearing faults or disconnecting the battery, collect:

• Every code exactly as displayed, including leading zeroes, any SPN/FMI numbers and the reporting module.
• Each fault's status (active, stored or intermittent), plus occurrence counts and engine hours where available.
• Freeze-frame data: engine speed, temperature, battery voltage and load when the fault occurred.
• The warning buzzer pattern, warning lights and maximum revs available when the problem occurs.

Note whether the restriction starts immediately, after warming up or only under acceleration. The timing helps distinguish an electrical fault from overheating or a fault that appears under load. An engine that cannot reach normal revs is not necessarily in electronic limp mode.

Interpret the complete code

A code identifies a monitored condition or circuit; it does not automatically identify a failed component. A throttle sensor fault, for example, can originate in the sensor, its connector, a damaged wire or a missing reference voltage.

If the diagnostic system reports SPN and FMI, keep both numbers together. FMI 3 generally indicates voltage above the expected range, FMI 4 voltage below it, and FMI 9 an abnormal update rate associated with missing network messages. Confirm the interpretation in the manual for that engine.

The following examples apply only to engines and control systems whose manufacturer's code table lists them:

• P0560, SPN 158/FMI 1: battery voltage too low; investigate the supply before condemning control modules.
• P0120, SPN 91/FMI 3 or 4: main throttle sensor signal high or low; inspect its circuit and live readings.
• U0100 or U100 with SPN 523760/FMI 9: engine ECU-to-helm communication fault; investigate power supplies and network connections.

These are not confirmed codes for your boat. Communication faults can disable shifting or station selection, while some drive faults only disable trolling functions. Neither automatically proves that the engine has reduced power for protection.
