Where is the diagnostic port on a Yamaha 425 outboard?
I'm trying to find the diagnostic port on my Yamaha 425 XTO outboard so I can have its fault history read. Where should I look under the cowling, and do I need a Yamaha-specific diagnostic lead?
Answer
On a Yamaha XF425 XTO Offshore, the engine diagnostic connection is under the top cowling, at a capped service connector in the engine wiring harness. Look around the ECU and electrical harness, then confirm the connector against the service diagram for your exact model before removing a cap or attaching a diagnostic lead.
Check the engine identification
Read the identification plate on the engine's mounting bracket and record the full model designation and serial number. The 425 is Yamaha's 5.6-litre V8 XTO Offshore, usually identified as XF425 or a corresponding counter-rotation designation, depending on the market.
The connector, harness routing and diagnostic equipment must match the engine. A photograph of the diagnostic socket on a Yamaha F250 or F350 is not a reliable location guide for a 425.
When asking a dealer for help, send the identification details and request the engine diagnostic connector location illustration. That is more useful than asking for an OBD socket: the engine does not have the familiar automotive 16-pin OBD-II port.
Look under the cowling
Switch off the ignition, remove the stop-switch lanyard and keep everyone clear of the helm controls before handling engine connectors.

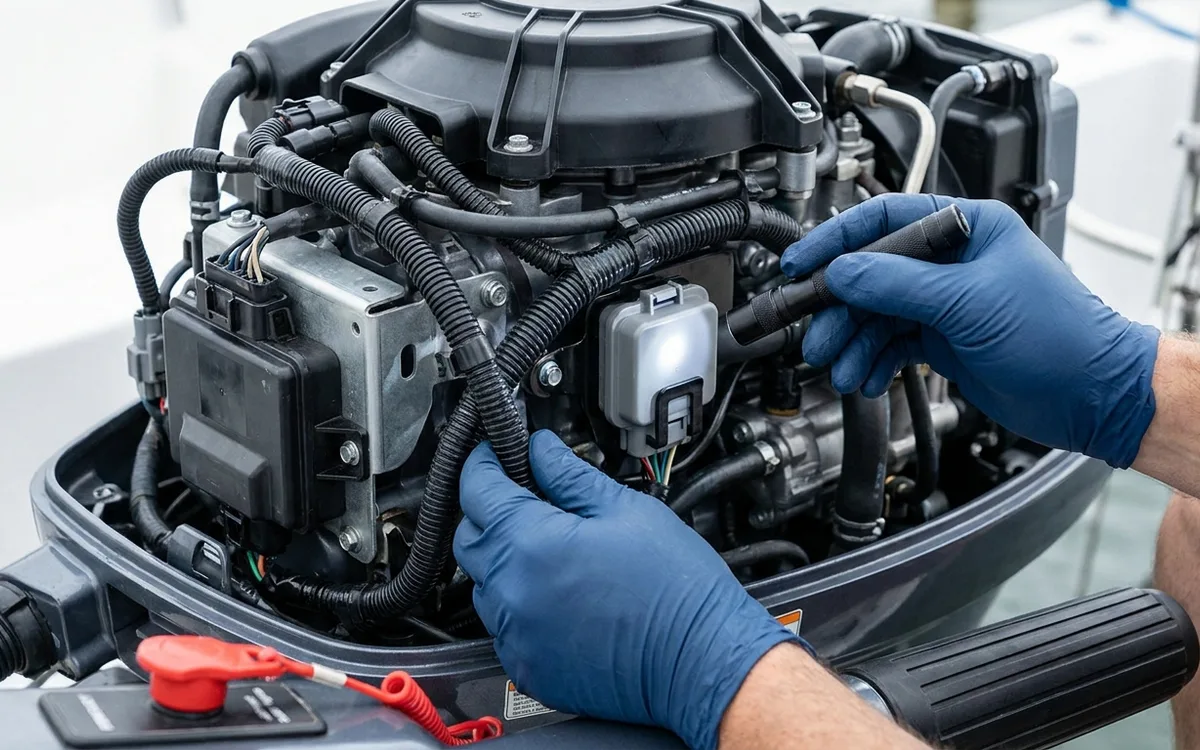

Release and remove the top cowling, then inspect the engine wiring harness around the ECU and electrical component brackets. Look for a service branch of the loom ending in a connector protected by a cap or dummy plug. It may be clipped into a holder rather than hanging loose.
- Use a torch to inspect the accessible harness branches without pulling them out of their clips.
- Look for a capped connector separate from the plugs connected to sensors, ignition coils and actuators.
- Compare its position, housing shape and terminal arrangement with the model-specific service illustration.
- Release the retaining clip before removing the protective cap; pull on the connector housing, never the wires.
Do not identify it by colour alone. Do not assume the first unused plug is the diagnostic connection, either. Spare accessory connections and capped harness branches can look similar. An exact port-side or starboard-side location requires the relevant engine diagram; a generic Yamaha photograph can point you to the wrong plug.
