Does the Yamaha S130TLRX 130 hp two-stroke have a diagnostic port?
I've got a Yamaha 130 hp two-stroke with S130TLRX on the identification plate. Does it have a diagnostic port where I can plug in a reader to check engine faults or running hours?
Answer
No, the Yamaha S130TLRX has no computer diagnostic port for Yamaha Diagnostic System (YDS) software or an automotive OBD reader. This carburetted V4 two-stroke needs mechanical checks and electrical measurements to trace faults; it cannot supply fault codes or engine hours.
Check the identification plate
Read the model and serial number on the transom bracket before relying on the cowling graphics. Cowlings can be swapped, and Yamaha sold several different engines with similar horsepower badges.
In the US model designation S130TLRX, the final X identifies the 1999 model year. A different purchase or registration year on the paperwork does not necessarily indicate a problem. If the powerhead has been replaced, confirm its identity before ordering ignition parts.
The original engine has carburettors and capacitor-discharge ignition, usually called CDI. It lacks the engine-management system fitted to later fuel-injected Yamaha outboards. A laptop therefore cannot retrieve a stored running history, cylinder fault log or engine-hour total.
Spare connectors under the cowling
Unused or capped connectors beneath the cowling do not establish that the engine has a data connection. Wiring plugs can serve instruments, warning circuits, optional equipment or workshop electrical tests.
A technician may use a model-specific test harness to measure ignition outputs. That does not involve diagnostic software or produce a list of faults.
- Yamaha YDS cable: a cable advertised for Yamaha outboards will not give this engine computer diagnostics.
- Automotive OBD reader: neither the reader nor a simple plug adaptor makes it compatible.
- Command Link or NMEA 2000 interface: neither can extract engine-management data that this engine does not produce.
- Existing hour meter: its reading may provide a useful service record, but depends on the meter and its installation history.
Identify an unknown connector by its wire colours and the correct wiring diagram. Do not bridge terminals or apply battery voltage to an unidentified plug; this can damage the ignition or warning circuitry.

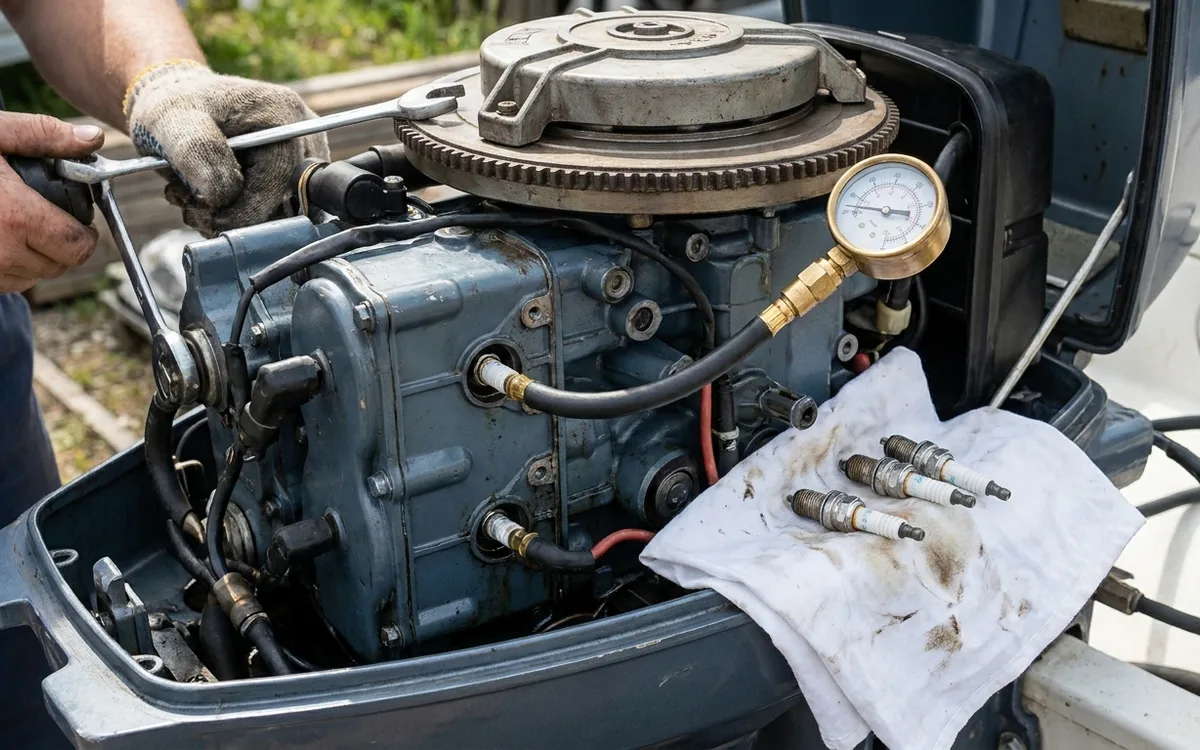

Diagnosing a running fault
Record exactly when the fault occurs: during cold starting, at idle, under acceleration or after several minutes under load. Note whether the warning buzzer sounds and whether power drops abruptly or gradually. These observations guide the checks.
