How does a Yamaha outboard motor work, and what should owners know about its main systems?
I've bought a boat with a Yamaha outboard and want to understand what happens under the cowling. What do the main systems do, and which checks should I make before using it?
Answer
A Yamaha outboard burns petrol in its cylinders to turn a crankshaft, which drives the propeller through a vertical driveshaft and a gearbox in the lower unit. Reliable running depends on clean fuel, correct lubrication, cooling water and working ignition, with different arrangements for older two-strokes, four-strokes and their control systems.
Identify your engine
Before buying parts or oil, check the model designation and serial number on the identification plate, normally on the mounting bracket. Horsepower alone does not identify the fuel system, oil requirements or service parts, and the boat's age may differ from the engine's.
Most Yamaha models with an F designation are four-strokes; older two-strokes include carburetted engines and HPDI direct-injection models. Regional model names vary, so use the full identification to find the correct owner's manual.
On a four-stroke, each cylinder completes intake, compression, combustion and exhaust over two crankshaft revolutions. A two-stroke completes its cycle in one revolution and uses a different lubrication arrangement. Neither should be treated like a marine inboard with a separate coolant reservoir and marine gearbox filler.
Fuel, air and lubrication
Petrol travels from the tank through the supply hose and filters to the engine. Carburettors meter fuel on some smaller or older engines; electronic fuel injection uses injectors controlled by an engine control unit. Many injected models have separate low-pressure supply and high-pressure injection stages.
- Tank and hose: check fuel quantity, leaks, connections and the tank's ventilation arrangement. Open a manual vent where fitted; some newer tanks use different venting systems.
- Primer bulb: where fitted, it fills the supply circuit before starting. Its arrow points towards the engine. A bulb sucked flat suggests an upstream restriction or a tank ventilation problem.
- Filters: inspect the engine filter and any boat-mounted water separator. Investigate water or debris before fitting another filter.
Use the petrol grade and ethanol limit specified for the engine. Petrol deteriorates in storage and can cause starting and running problems. Stabiliser does not restore stale petrol. Stop the engine and keep ignition sources away before opening fuel connections.

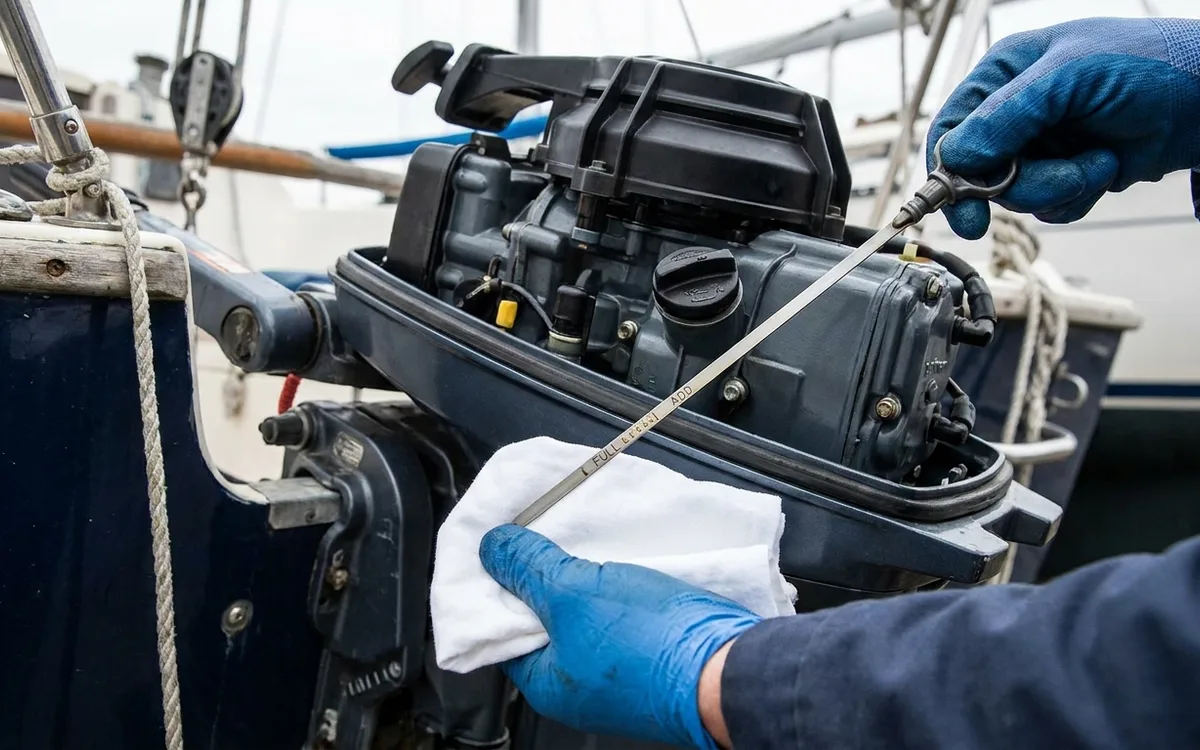

Four-strokes carry engine oil in a sump; a pump feeds it to bearings and other moving parts. Position the engine as the manual specifies before checking the dipstick, and avoid overfilling. Yamalube marine four-stroke oils commonly include 10W-30 and 10W-40 grades, but use the viscosity and approval specified for your model.
Two-strokes use either petrol mixed with the specified two-stroke oil or a separate oil-injection system. Never guess the mixing ratio. A full oil tank does not prove that oil is reaching the engine.
