Should I test the amp draw before fitting a replacement Minn Kota Terrova control board?

Yes, follow the amp-draw test instructions supplied with your replacement Minn Kota Terrova control board, because excessive motor current can damage it. Read the wording carefully: the test may check the motor before the new board is connected, or the complete system after installation, rather than the loose board itself.

Check the supplied instructions

First, match the replacement board's part number to your Terrova's serial number, supply voltage and model generation. Terrova boards are not all interchangeable. A board that looks similar may not be compatible.

Find these details on the supplied sheet:

• Whether to measure current before fitting the board or during commissioning afterwards.
• Whether the propeller must be fitted or removed.
• Whether the motor must run submerged or under another specified test condition.
• The required speed setting, measuring point and acceptable current.

The test conditions matter as much as the reading. A motor turning without a propeller carries a very different load from one driving the boat. If the sheet gives no clear procedure or limit, get the matching instructions from the supplier before powering up. Do not substitute a figure from another Terrova model.

Check the motor first

The control board switches power to the propulsion motor. If the motor has a mechanical restriction or an internal electrical fault, replacing the board alone leaves the cause in place. The old board's failure does not prove the motor is faulty, but checking it protects the replacement.

Isolate the trolling-motor battery supply before opening connections or handling the propeller. Keep hands clear whenever power is connected.

Start with these checks:

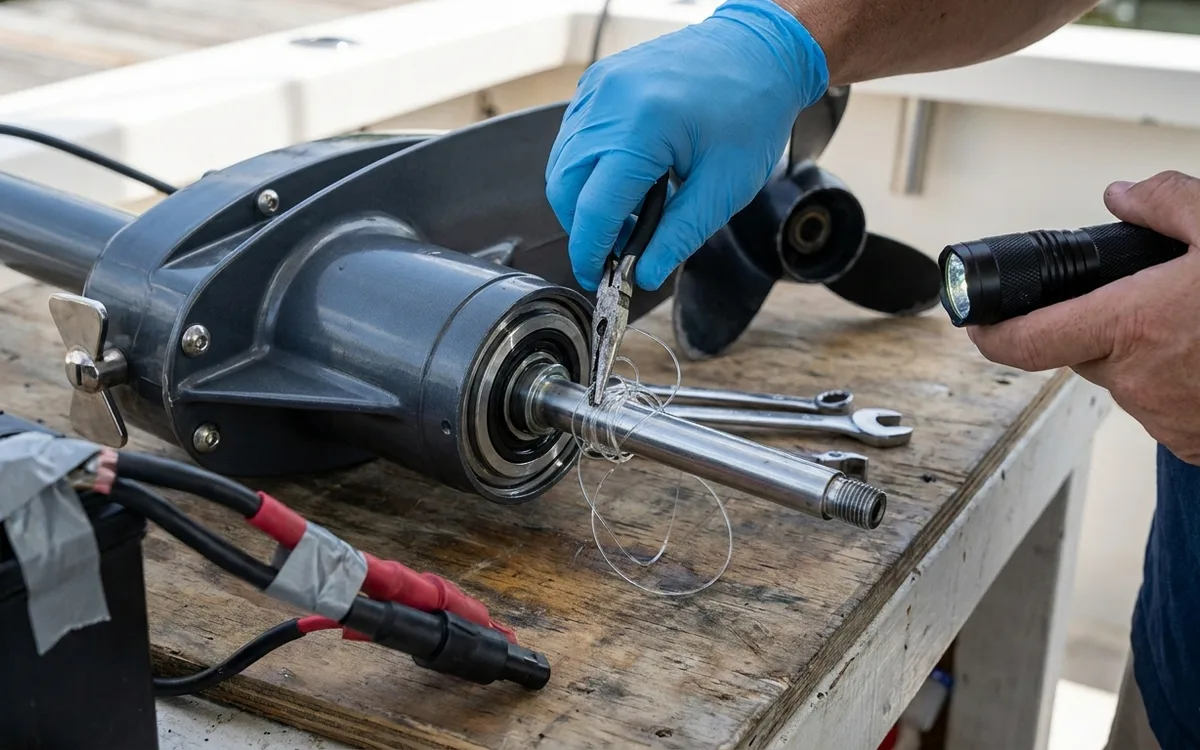

1. Remove the propeller and look for fishing line or weed wrapped behind it, particularly around the shaft and seal area.
2. Check for impact damage and a propeller rubbing against the motor housing.
3. Turn the shaft by hand and feel for scraping, tight spots or obvious roughness. Some magnetic resistance can be normal.
4. Inspect the supply leads, plug, breaker and board connections for corrosion, looseness, melted insulation or heat discolouration.

Fishing line can damage the shaft seal and let water into the lower unit. Rough bearings, damaged brushes or armature faults need attention before a new board goes into service. Repair burnt connections too, although their appearance alone does not establish excessive motor current.
