Does a 1983 Shamon sailboat with a Yanmar engine have a block fuse?

Your engine may have an inline fuse protecting the instrument and starting-control circuit, but the boat's 1983 build date cannot tell you whether it has a fuse block or where the fuse sits. Assuming "Myanmar" means Yanmar, check the engine's model plate first, then trace the small supply cable between the engine and its instrument panel.

Identify the engine

The engine model matters more than the yacht's name. The engine, instrument panel or wiring may have been replaced during the boat's life, and "Shamon" does not identify the wiring arrangement reliably enough to specify a fuse.

Find the Yanmar identification plate and record the complete model and serial number. Older installations may use QM or GM series engines; a later replacement could be a YM series engine with different controls.

Establish what you mean by "block fuse". There are three possibilities:

• A fuse block: a holder containing several fuses, usually serving the boat's domestic circuits.
• An engine-mounted fuse: often an inline holder in the smaller engine wiring loom.
• A main battery fuse: a substantial fuse near the battery, protecting a heavy supply cable.

These protect different circuits. A working cabin fuse board does not prove that the engine panel has power.

Where to look first

Switch off the battery isolator and disconnect battery negative before opening holders or disturbing engine wiring. Reconnect only when ready for controlled voltage checks, keeping tools clear of exposed positive terminals.

Start with these locations:

1. The smaller wires beside the starter motor. On many installations, the instrument supply starts near the starter's battery-positive connection. Follow the smaller branch rather than the heavy starter cable.

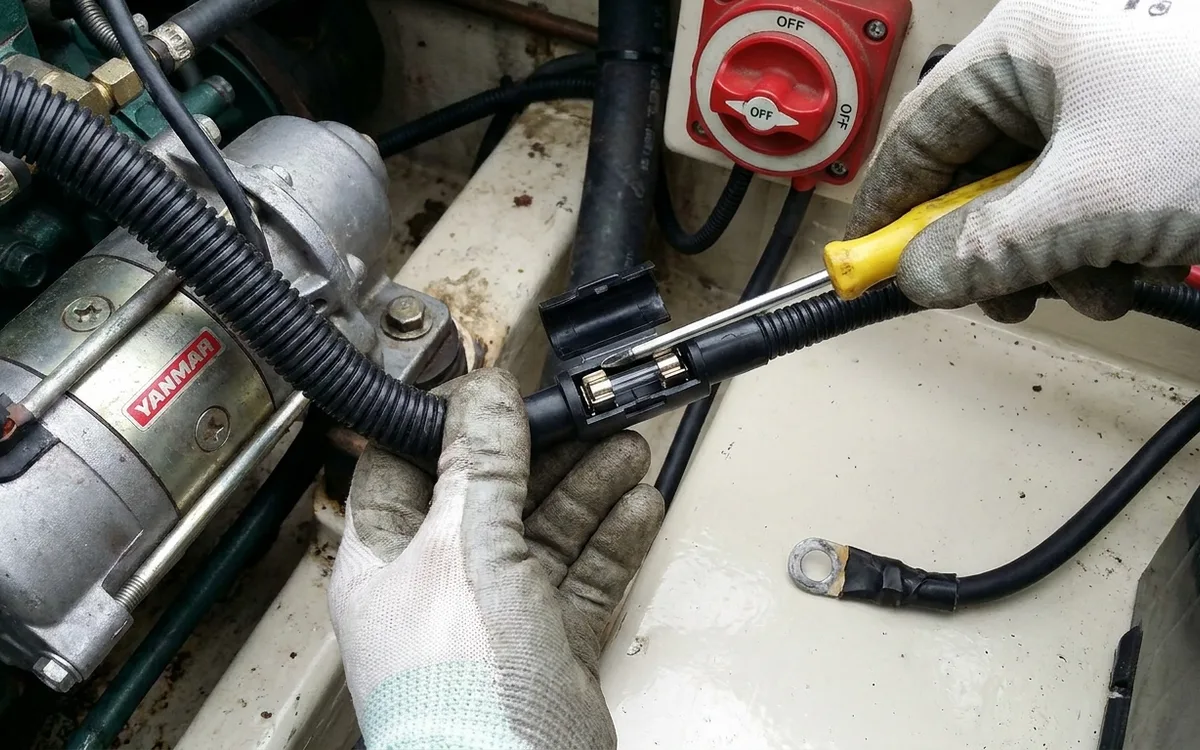

2. The engine wiring loom. Look for a covered inline fuse holder, sometimes tucked behind the engine or secured alongside the harness.
3. Behind the cockpit instrument panel. Check for a separate holder, loose connectors and evidence of previous alterations.
4. Beside the starting battery and isolator. Check any owner-installed main fuse or circuit breaker.

A traditional installation may have no multi-fuse box on the engine. The heavy starter circuit may also have no fuse, so do not assume every cable runs through one.
