How do I install a Humminbird HELIX 5 on a 2002 Boston Whaler Dauntless?

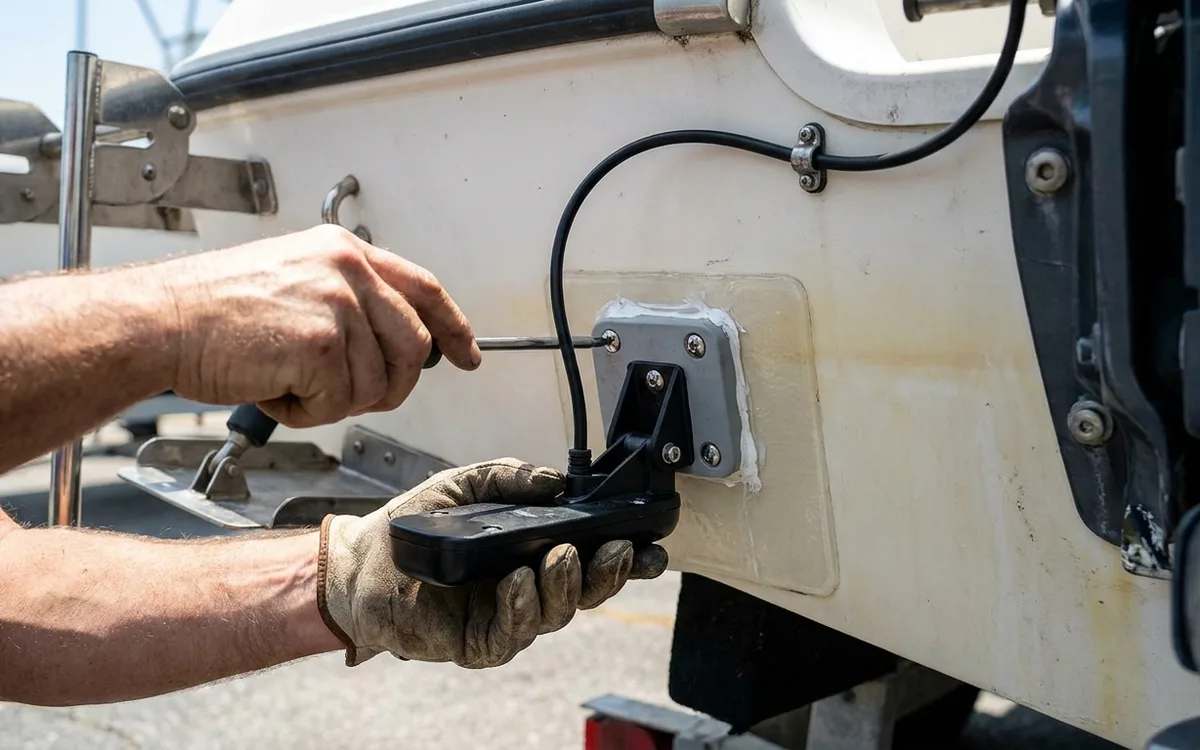

Mount the HELIX 5 on the console, connect it to a fused 12V supply and fit its matching transom transducer where it receives clean water underway. First check the exact HELIX model, Dauntless length and existing mounting arrangements, as these determine transducer compatibility, screw positions and cable routing.

Check equipment and mounting positions

Read the full model designation on the display and the identification tag on the transducer cable. HELIX 5 models include conventional sonar, Down Imaging and different CHIRP generations. A transducer may plug in without supporting every sonar function. Check the pairing against the unit's installation instructions.

A 2002 Dauntless has Boston Whaler's foam-filled hull construction. Do not assume there is an accessible void behind the transom or that an ordinary shoot-through-hull installation will work through the foam sandwich. A compatible transom transducer is the straightforward choice.

Check these points before drilling:

• Existing sounder brackets, sealed mounting holes and any transducer mounting board.
• The console's underside, including wiring, steering hoses and access for nuts and washers.
• The cable route between the transom and console, using the existing rigging route where accessible.
• The wood-location or reinforcement drawing for your particular Dauntless model.

Disconnect the battery negative lead before wiring. Check behind every proposed hole for fuel lines, cables and hoses.

Mount the display and cables

The supplied gimbal bracket is usually the easiest mounting option and lets you adjust the viewing angle. Sit or stand at the helm to check that you can read the screen and that it clears the instruments, throttle and forward view. Leave room behind it for connectors and gentle cable bends.

Through-bolt the bracket where you have access, using suitably sized stainless-steel fasteners with broad washers or a backing plate. Match the fastener diameter to the bracket holes. Tighten enough to secure the bracket without distorting its plastic or crushing the console laminate.

Lightly countersink the drilled gelcoat edges to reduce chipping, then bed the fasteners with a suitable marine sealant. Size the cable gland to pass the largest connector. Cable diameter alone does not determine the opening size.

Keep the transducer cable away from ignition wiring and high-current battery cables where practical. Secure it clear of steering movement and sharp edges, leaving a service loop at the display. Do not cut or splice the transducer cable to shorten it.
