How can I test the rectifier-regulator on a Yamaha 250 outboard that is not charging?
My Yamaha 250 outboard is not charging the batteries, and the voltage stays around 12 volts with the engine running. How do I test the rectifier-regulator and check whether the fault is actually in the wiring or alternator?
Answer
Test the rectifier-regulator by checking the battery, charging output and earth connections, then testing the charging source against the workshop manual for your exact Yamaha 250. If the specified input reaches the regulator but its DC output stays at battery voltage, and the wiring and earth connections are sound, the regulator is the likely fault.
Identify your Yamaha 250
Read the model code and serial number on the transom bracket. A 250 two-stroke, 250 HPDI and F250 four-stroke may have different charging components, connector layouts and test figures. Get the matching Yamaha workshop manual before disconnecting charging-system plugs. There is no reliable universal Yamaha 250 resistance or diode-test specification.
Check the wiring before buying parts. Corrosion, loose terminals and failed fuses can cause the same symptoms as a failed regulator.
- Fully charge the starting battery with a shore charger, then have it load-tested if its condition is doubtful.
- Clean and tighten battery posts, cable lugs, engine earths and charging connections. Look beneath insulating boots for green corrosion and overheated terminals.
- Check the charging and main fuses listed in the engine manual, including their holders. Remove each fuse to test continuity; a visual check can miss a break.
- If fitted, inspect the battery selector, isolator, automatic charging relay and separate auxiliary charging lead.
Disconnect battery negative before unplugging components or cleaning terminals. For running tests, provide the specified cooling-water supply, secure the boat in neutral and keep test leads clear of moving parts.
Measure running battery voltage
Set a digital multimeter to DC volts and place its probes directly on the battery posts. A rested, fully charged conventional lead-acid battery usually reads about 12.6 to 12.8 V. Lithium battery readings need different interpretation.
- Record the engine-off voltage.
- Start the engine and record the idle voltage.
- Repeat at the workshop manual's charging-test speed, under suitable operating conditions. Do not improvise a high-speed test on flushing muffs.
- Switch on a modest electrical load and note whether the voltage holds up.
A working conventional charging system commonly raises voltage to roughly 13.5 to 14.8 V, though temperature, battery condition, engine speed and model affect the reading. A reading that stays around 12.2 to 12.8 V suggests little or no net charging, but an idle reading alone does not condemn the regulator. If voltage stays above approximately 15 V on a conventional lead-acid installation, stop the test and check regulation and voltage-sensing connections.
Check for cable losses

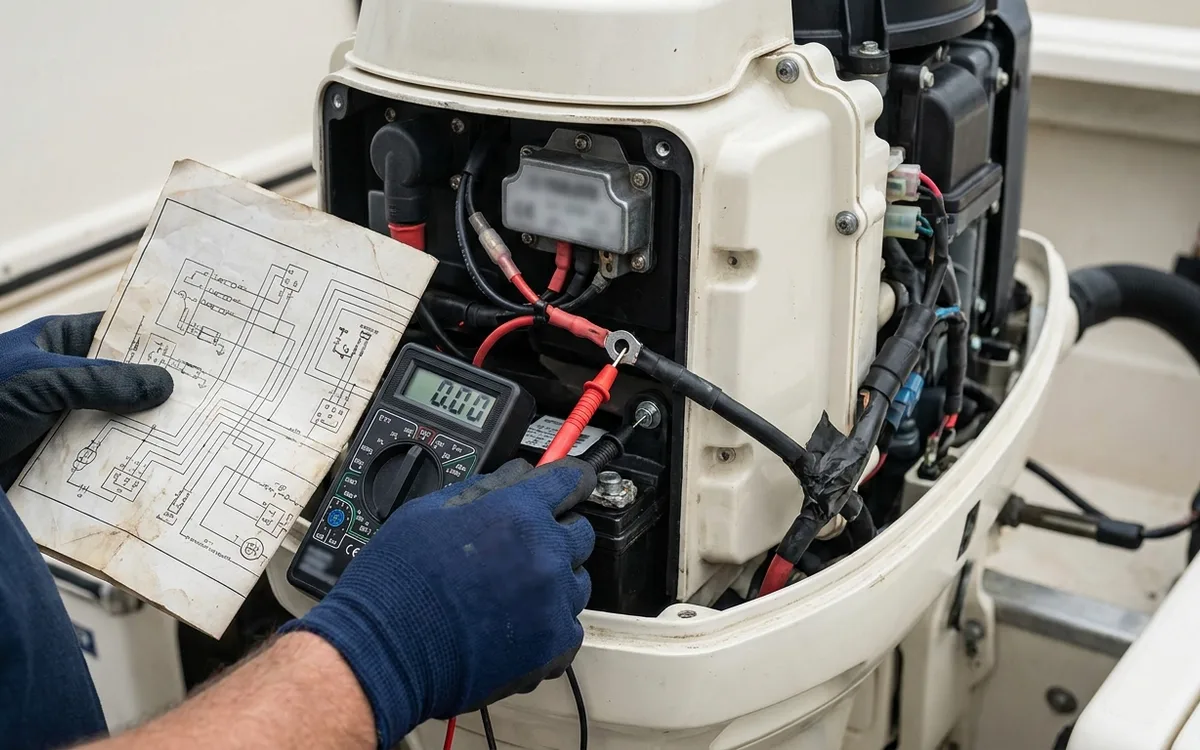

Use the wiring diagram to identify the DC charging output and designated earth. Do not rely on wire colours. With everything connected and the engine running under the prescribed test conditions, compare voltage at the charging unit with voltage at the battery.
